Product Code:
ES2746
Product Information and Details

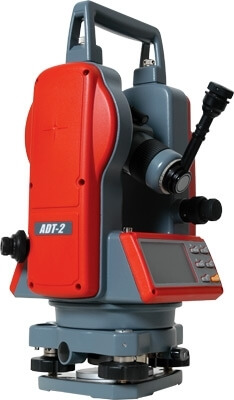

Dual Displays, 2-Second Accuracy, Optical Plummet, what else could you ask for in a Theodolite? Apache has it really figured out and this instrument has been designed for general construction applications. The Apache ADT-2 Digital Electronic Theodolite gives accurate measurements in an affordable, versatile, easy-to-use platform. The ADT-2 has dual displays and controls for easy accessibility and operation, very large backlit LCD characters for easy reading, and a host of features and parameters normally found on much higher priced instruments.
Fast investment payback is the goal of the ADT-2. With its 2-second accuracy (1- or 5-second selectable display readings) and vertical axis compensation, it can handle any construction job. Operating costs are kept low with the included rechargeable battery pack and charger. A backup alkaline pack holding four standard AA batteries is also included.
Every ADT-2 can be fully customized for your preferred operating style or job, with programmable settings for the horizontal angle resolution and beep, vertical degrees or %, automatic shutoff (to save battery life), zenith angle, and the vertical axis compensation on or off.
In addition to the dual, large character backlit LCD’s, the ADT-2 has a built-in reticle illuminator that allows you to work inside buildings and other environments with little or no light, such as near dawn or dusk. You can count on working in difficult conditions with the ADT-2.
Each ADT-2 comes equipped with a plumb bob, NiMH rechargeable battery pack and charger, alkaline battery pack, adjustment tools, rain hood, multi-language user guide, and hard-shell carrying case.
Apache ADT-2 Specifications
Telescope:
Image: Erect
Magnification: 30X
Aperture: 45 mm (1.7 in)
Focus Distance: 1.35 mm (4.43 ft) to 8
Field of View: 1° 30'
Stadia Ratio / Constant: 100 / 0
Optical Plummet:
Image: Erect
Magnification: 3X
Angle of View: 5°
Focusing Range: 0.5 m ~ 8 (1.6 ft ~ 8)
Reticle Type: Crosshair
Angle Measuring System:
Minimum Reading: 1" or 5"
Precision: 2"
Units: Deg / mil / gon / V %
Display: Dual, Large Character, Backlit LCD both sides
Tilt Sensor:
Automatic Compensation: User set On/Off, ±3' Range
Vials:
Tubular: 30"/2 mm
Circular: 8'/2 mm
Illumination:
Display: Yes
Reticle: Yes
Other:
Dust/Water Resistance: IP-54
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Size: 164 x 154 x 340 mm (6.4 x 6.1 x 13.4 in)
Weight: 4.5 kg (9.9 lb)
Shipping Weight: 8.6 kg (19 lb)
Manufacturers Warranty: 1 year
