Product Code:
ES2796
Product Information and Details
The Apache Summit 2 Rotary Laser Level features fast and easy horizontal leveling, vertical alignment and grade control in two axes. It offers horizontal and vertical accuracy of 1/16th-inch per 100 ft (10 arc seconds).
The grade range is -10% to +15% in 0.001% resolution. The grade accuracy is 0.015% (1/8-inch @ 100 ft).
Automatic electronic self-leveling eliminates the need for manual screws and bubble vials.
Automatic temperature compensation keeps the laser consistently accurate, which eliminates rework due to a drifting beam caused by temperature changes throughout the day.
The operating maximum diameter of the Apache Summit 2 is 2,600 feet.
The Apache Summit 2 Dual Grade Slope Laser can be operated by the remote control within 330 feet of the unit — all operations can be performed remotely. The handy remote control features durable quality construction, an easy-to-use keypad and a back-lit display for easy reading.
The Apache Summit 2 has a masking feature that will allow you to block laser transmission from up to three sides to minimize interference with other laser crews on the job site.
The grade laser uses four D-cell NiMh or alkaline batteries. The battery life is 55 hours for NiMh batteries and 90 hours for alkaline.
The sturdy Apache Summit 2 is water resistant and built to last thats tested with a drop of three feet on to concrete! The Apache Apache Summit 2 comes with a two-year factory warranty. The Storm Laserometer features a three-year warranty.

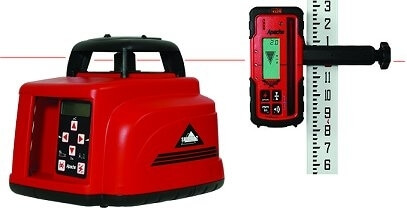

The Apache Apache Summit 2 Dual-Grade Slope Laser Package includes the Apache Summit 2 Slope Laser, an Apache Storm Laserometer laser detector, a rod bracket, a two-way radio remote control, NiMh batteries, battery charger, and a hard-shell case. Grade Rod sold separately.
Weighs 6.8 lb (3.1 kg)
