- 90-Degree Plumb and Layout Beam
- Two Large, Easy to Grip Carrying Handles
- Full Selection of Beam Visibility Enhancements - such as variable speed selection, variable scan angles for maximum visibility in all light conditions
- Fast Horizontal and Vertical Electronic Self-Leveling
- Up to 50 Hour Battery Life on 2 D Cell Batteries
- Protected Cage for Head Assembly — also provides access to quickly hand position the laser beam on a known point or work area
- Robust Construction With IP54 Protection
- Horizontal and Vertical Self Leveling for Level and Alignment, Plus a 90-degree Layout Beam
- Easy to Check Field Calibration with Shock Warning Indication - Easy to maintain accuracy and prevent downtime
- Smart Electronic Self Leveling System - Self Levels, senses and indicates out-of-level condition for security and accuracy on the job
- Full Range of Visibility Features – Scan, speed, adjustable head and remote
- Robust Construction with IP54 Protection and Rated for 1m Drop Test
- Beam Customization - Four lengths (0º, 10º, 25º, 50º ) and three rotation speed settings (150, 300, 600 rpm) for diverse application and lighting conditions
- New Shock Warning Function
Specifications
- Accuracy: Up to +/- 1/8-in @ 100-ft (Horizontal & Vertical)
- Laser Diode: 630 - 670 nm Class 3R
- Leveling Type: Self-Leveling, Up to 5°
- Mount Threading: 5/8 - 11
- Operating Temperature: 14°F / -10°C ~122°F / 50°C
- Range: Up to 1,000-ft
- Weight (lbs.): 3.9 lbs.

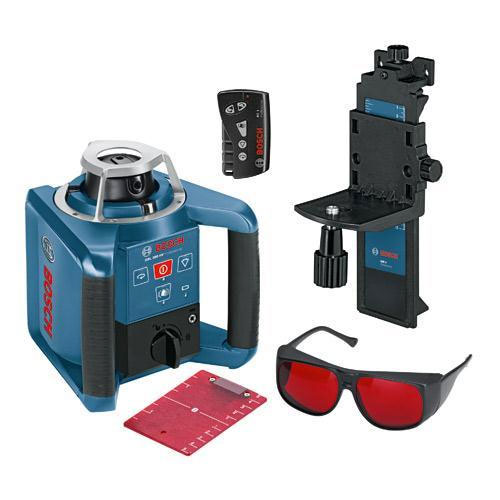

Includes: Laser Glasses, Remote Control RC1, Magnetic Target, WM4 Wall Mount, Hard Carrying Case, (2) D Batteries.
Recommended (Sold Separately): LR1 Detector With Rod Bracket, GR16 Leveling Rod, BT160 Tripod
