Calculated Industries ElectriCalc Pro 5070

Product Code: ES1572
Calculated Industries ElectriCalc Pro 5070
You May Also Like
Read Reviews

Customer Reviews

List Price $99.95
Your Price $74.99
(You Save 25%)
Free Shipping
  • Usually ships off dock within:Same Day

We Are An Authorized Dealer

Secure Shopping!

Low Prices!

Trusted Brands

Description
Specifications / Features
Documentation
Free Shipping

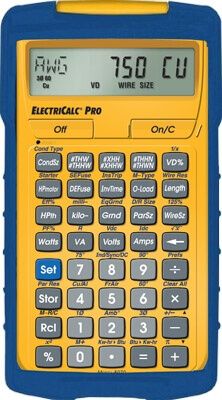

Please note that the calculator in the video has a slightly different body style, but the functionality is the same. The product photo above shows the updated body style of the calculator you are purchasing.

The Calculated Industries ElectriCalc Pro is perfect for electrical contractors, designers, engineers, electricians, maintenance inspectors, planners, builders and lighting specialists.

Includes:

  • Calculator
  • Armadillo Gear hard protective case
  • Battery

Features:

  • Compliant with 2011, 2008, 2005, 2002, 1999 and 1996 National Electrical Code (NEC)
  • Dedicated keys and functions make it easy to use
  • Update to future code revisions with an easy-to-install kit
    It helps you solve for:
  • Wire Sizes
  • Integrated Voltage Drop
  • Conduit Sizing
  • Motor Full-Load Amps
  • Fuse and Breaker Sizes
    NEC Table Number displayed when performing Wire Size calculations
  • Service and Equipment Grounding Conductor Sizes
  • Enter BTU to find Kilowatts per Hour
  • Enter Kilowatts per Hour to find BTU
    Parallel Resistance
  • Ohm's Law Calculations, enter any two values to solve for the third
  • Circular MILS wire sizes
    It helps you:
  • Work directly in and convert between Amps, Watts, Volts, Volt-Amps, kVA, kW, PF% and EFF% and DC Resistance
  • Calculate wire sizes per NEC 310-16 and 310-17; Copper or aluminum, 3Ø/1Ø, 60°C, 75°C, 90°C insulation ratings and 100% or 125% of ampacity. Adjust wire sizes for ambient temperatures other than 30? C and for more than three wires in a raceway
  • Integrated voltage drop solutions. Find minimum VD wire size, maximum Length for any given wire size, drop percentage, actual number and percentage of Volts dropped
  • Conduit sizing for 12 types of conduit. Per 2005 NEC Table C1-C12, find sizing of all common conduits for any combination for #THW, #XHHW and # THHN wires. Plus, gives fill percentages, cross-sectional areas, remaining areas and more
  • Find Motor Full-Load Amps per Current NEC. Works in 1Ø and 3Ø with the new expanded tables for 3Ø induction (to 500 hp) synchronous (to 200 hp) and DC motors per NEC 430-247, 430- 248 and 430-250.
  • Calculates Fuse and Breaker Sizes. Solves fuse and breaker sizes per NEC 430-52
  • Parallel and derated wire sizing Parallel Resistance
  • NEC Table number Displays when performing Wire Sizes calculations Sizes overload protection per NEC 430-32
  • Automatically finds NEMA starter sizes.
  • Calculates service and equipment grounding conductor sizes per NEC 250-122 and 250-66; plus works directly in electrical terms.
  • Enter BTU to find Kilowatts per Hour
  • Enter Kilowatts per Hour to find BTU
  • Ohm's Law Calculations, enter any two values to solve for the third.
  • Circular MILS wire sizes
    Additional Features:
  • Works as Standard Math Calculator with +, -, x, ÷, +/-, %, ?, 1/x, X2, and v.
  • Auto Shut-Off extends battery Life, Memory
  • Update to future code revisions with easy-to-install kit.

Size: 5.6" x 3.0" x 0.6" (142.8mm x 76.2mm x 15.9mm)

Product Weight (Including Armadillo Gear Protective Hard Case and Pocket Reference Guide): 4.5 oz. (127.5 gm)

Power: One 3-volt (CR-2032) Long-life Battery Included

Display Type: LCD segment; 8 digits, with annunciator-legends

Display Dimensions: 0.625" x 2.5" (15.88 mm x 63.5 mm)

Accuracy: 10 Digit Internal Accuracy

  • MPN: 5070
  • UPC: 098584000493
