Advanced Machining Math and Reference Tool
Ideal for machining pros and shop owners who want to increase productivity and profits in the design, layout and set-up stages of production and reduce wear and tear on costly cutting tools.

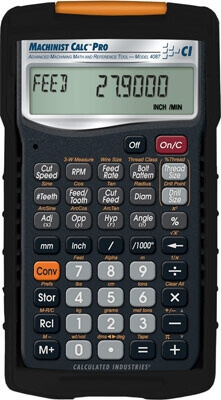

The Machinist Calc Pro is the first dedicated handheld machining math and reference tool to provide a complete assortment of machine shop solutions. It has more complete Thread data than the Machinery's Handbook, including step-saving Thread and Drill Size chart look-ups, speeds and feeds, right triangle solutions, bolt patterns and much more.
Spend more time machining and less time looking up specs and data in books, on charts or in computer programs.
Includes a rugged shock, dust and moisture resistant Armadillo Gear protective case.
Built-in Functions and Calculations:
Speeds and Feeds calculate for milling, turning and drilling; cutting speed, spindle speed (RPM), feed rate (IPM), cutting feed, feed per tooth/chip load
Built-in Drill and Thread Size Tables - save time and steps (Compliant with ANSI/ASME B1.1-2003 and ANSI/ASME B1.13M-2005)
Enter Numeric, Fractional, Metric Thread Sizes and Drill Sizes - and display tap, roll tap, close and free fit drill sizes plus pitch, major and minor diameters
Right Triangle Math - plus trigonometric functions
Drill Points - enter the cutting angle and drill size to calculate the drill point cut depth
Bolt Pattern Hole Layouts - enter start angle, number of bolts, diameter and optional x, y offset; calculate x and y coordinates. Find center-to-center spacing for bolt pattern layouts
3-Wire Measure - enter Wire Size (or use calculated Best Wire size) and 3-Wire Measurement to calculate pitch diameter
For efficiency-minded Machinists, Setters, Tool and Die Makers, Supervisors, Shop Owners.
Additional Features:
Thread Classification Tables
-U.S. Internal (3) 1B, 2B, 3B
-External (3) 1A, 2A, 3A
-Metric Internal (14) 3G-9G and 3H-9H
-External (28) 3g-9g, 3h-9h, 3e-9e, 3f-9f
U.S. and Metric Unit Entries and Conversions
-Decimal Inches/mils
-Feet-Inch-Fractions
-m, mm, cm
Area, Volume and Weight
Works as a Standard Calculator
Includes:
Rugged, shock-, moisture- and dust-resistant Armadillo Gear case
Quick Reference Guide and complete, easy-to-follow User Guide
Two 1.5 volt LR-44/A76 Long-life Batteries
Full One-Year Limited Warranty
Tech Specs
Size: 6.25" x 3.5" x 0.9" (160 mm x 90 mm x 25 mm)
Product Weight: Weight: 6 oz. (170 gm) Includes Armadillo Gear Case
Power: Two 1.5-volt (LR-44/A76) Long-life batteries (included)
Display Type: 12 Digits (8 normal, 4 fractions) with full annunciators
Display Dimensions:
0.625" x 2.5" (15 mm x 65 mm)
Accuracy:
12 Digit Internal Accuracy
