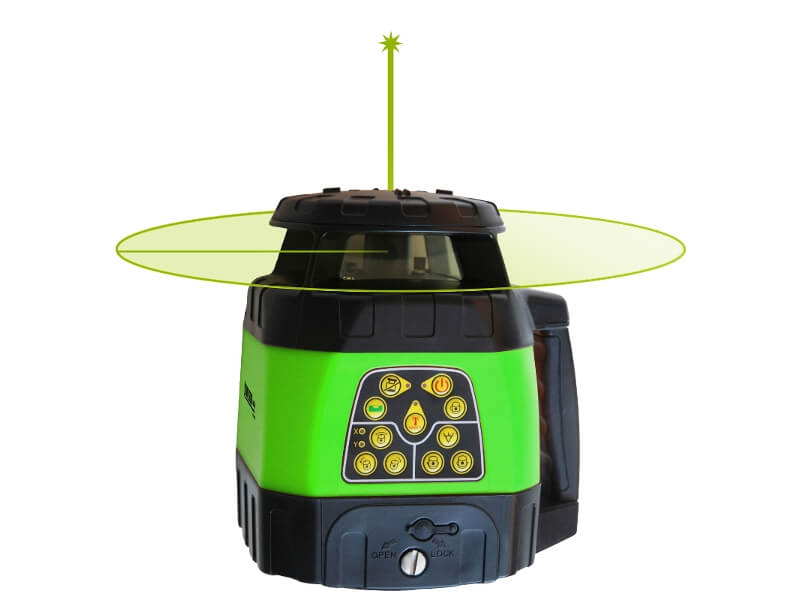

Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6544

Product Code: ES5067
Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6544 ES5067
Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6544 ES5067
Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6544 ES5067 Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6544 ES5067
You May Also Like
Read Reviews

Customer Reviews

List Price $1,730.00
Your Price $1,128.99
(You Save 35%)
  • Usually ships off dock within:1 to 2 Business Days

We Are An Authorized Dealer

Secure Shopping!

Low Prices!

Trusted Brands

Description
Specifications / Features
Documentation

Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6544

Johnson's 40-6544 Electronic Self-Leveling Horizontal & Vertical Rotary Laser with GreenBrite Technology is superior for indoor construction laser levels - construction contractors, contractors, finish carpenters and builders LOVE this rotary laser level for the visibility and accurate leveling it provides. Electronic self-leveling both horizontally and vertically, with the Green Laser Beam 400% more visible than red beams this rotary laser makes leveling tasks fast and accurate. The Johnson Level 40-6544 rotary laser can be used for a number of indoor applications including Layout of interior walls, Checking door and window height, installing Acoustical/Drop ceilings, developing a layout for warehouse racking, Room additions, Drywall installation and more.

Features

  • Green beam is 400% more visible than red beam
  • Electronically-controlled dual slope feature
  • Electronic self-leveling horizontally and vertically
  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds
  • Two rotational speeds: 200 and 500 RPM
  • Visual and audible alarms when beyond leveling range
  • Height of Instrument/Tilt alarm function ensures product accuracy

Specifications

  • Leveling Method: Automatic (Electronic)
  • Laser Wavelength: 532nm +/-10nm (Green)
  • Laser Classification: Class IIIa
  • Maximum Power Output: <=5mW
  • Accuracy: +/-1/8"/100ft. (+/-1.0mm/10m)
  • Interior Range: Up to 400ft. diameter (120m) depending upon light conditions
  • Exterior Range: Up to 1,200ft. diameter (400m) with detector (not included)
  • Remote Range: Up to 200ft. diameter (60m)
  • Slope: +/-5 degrees
  • Auto-Leveling Range: +/-5 degrees
  • Grade Setting: N/A
  • Power Supply: NiMH rechargeable battery pack or 6V adapter (included)
  • Battery Life: Approximately 24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries (not included)
  • Dimensions: 8.62" x 6.29" x 7.95" (219 x 160 x 202mm)
  • Weight: 4.4 lbs. (2kg)
  • Working Temperature: +32°F to +104°F (0°C to 40°C)
  • Center Screw Thread: 5/8"-11
  • Scanning Modes: 0°, 30°, 60°
  • Rotation Speeds: 200 and 500 rpm
  • IP Protection Class: 54
  • Manufacturer's Warranty: 3 years

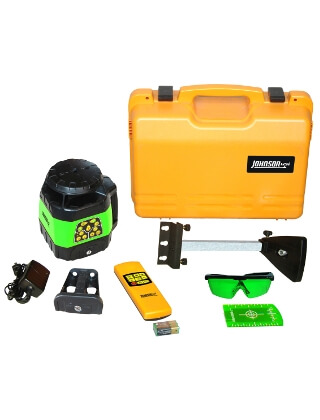

Includes:

  • Laser
  • NiMH rechargeable battery pack
  • Alkaline battery compartment (batteries not included)
  • 6.4V battery adapter
  • Remote control with 9V battery
  • Ceiling mount
  • Tinted glasses
  • Target
  • Instruction manual with warranty card
  • Hard-shell carrying case
  • MPN: 40-6544
  • UPC: 049448065448
