FEATURES:
- 360° graduated base allows angle layout
- Interior horizontal and vertical layout
- Self-leveling within +6°

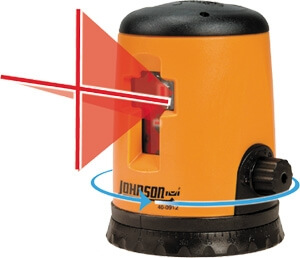

- Emits cross line lasers
- Projects one cross-line beam, consisting of one horizontal line and one vertical line
- Locking mechanism protects inner pendulum during transport
- Visual out of level indicator
- 5/8” – 11 thread

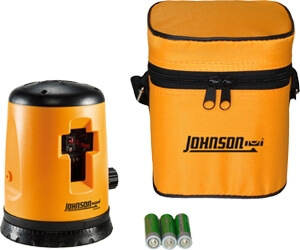

INCLUDES:
- Self-leveling cross line laser level
- Soft-sided carrying case
- 3 “AAA” alkaline batteries
- Instruction manual with warranty card
TECHNICAL SPECIFICATIONS:
- Leveling Method: Self-Leveling (Pendulum)
- Laser Wavelength: 635nm+10nm (Red)
- Laser Classification: Class IIIa
- Maximum Power Output: ≤5mW
- Accuracy: ±1/4"/35ft. (±.6mm/1m)
- Self-leveling range: ±6°
- Working Range: Up to 100ft. (30m) depending upon light conditions
- Power Supply: 3 "AAA" alkaline batteries (included)
- Battery Life: Approximately 12 hours continuous use
- Dimensions: 5" x 4" x 3-1/2" (127 x 101 x 89mm)
- Weight: 1.2lbs. (0.54Kg)
- Working Temperature: 14°F to 113°F (-10°C to +45°C)
Includes one-year manufacturers limited warranty.
