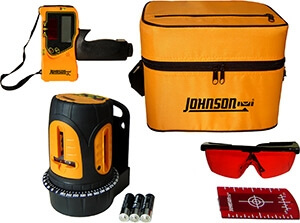

Johnson Level Self-Leveling Cross Line Laser Level with Three Vertical Lines Kit 40-6604

Includes:

• Line laser with batteries and carrying case (40-6602)
• Laser detector with clamp and battery (40-6780)
• Magnetic target
• Laser glasses

Line Laser Features:

• Locking mechanism protects the inner pendulum during transportation
• Manual mode that allows the unit to tilt to extreme angles
• Unit can be rotated 360°
• Projects three vertical lines and one horizontal line simultaneously or individually

Line Laser Specifications:

• Laser beam color — Red
• Operating range with laser detector — 300' diameter
• Accuracy — ±³/₁₆" at 50'
• Self-leveling? — Yes
• Self-leveling range — ±3°
• Power supply — 3 AA batteries
• Tripod thread size — ⁵/₈" x 11
• Ingress protection rating — IP54 (equipment is protected against dust and splashing water)
• Operating temperature — 14°F - 113°F

Laser Detector Specifications:

• Display — Front and back
• Power supply — 1 9V battery
• Low battery indicator — Yes
• Environmental — Rain and dust resistant
• Dimensions without clamp — 2.992" W x 5.905" H x 1.142" D

Documentation:

• Line Laser Manual (PDF)
• Laser Detector Manual (PDF)
