Johnson Level Self-Leveling Rotary Laser Level with GreenBrite Technology 40-6543

Product Code: ES2812
Johnson Level Self-Leveling Rotary Laser Level with GreenBrite Technology 40-6543 ES2812
Johnson Level Self-Leveling Rotary Laser Level with GreenBrite Technology 40-6543
Johnson Level Self-Leveling Rotary Laser Level with GreenBrite Technology 40-6543 ES2812 Johnson Level Self-Leveling Rotary Laser Level with GreenBrite Technology 40-6543
You May Also Like
Read Reviews

Customer Reviews

List Price $1,565.42
Your Price $879.99
(You Save 44%)
  • Usually ships off dock within:1 to 2 Business Days

We Are An Authorized Dealer

Secure Shopping!

Low Prices!

Trusted Brands

Description
Specifications / Features
Documentation

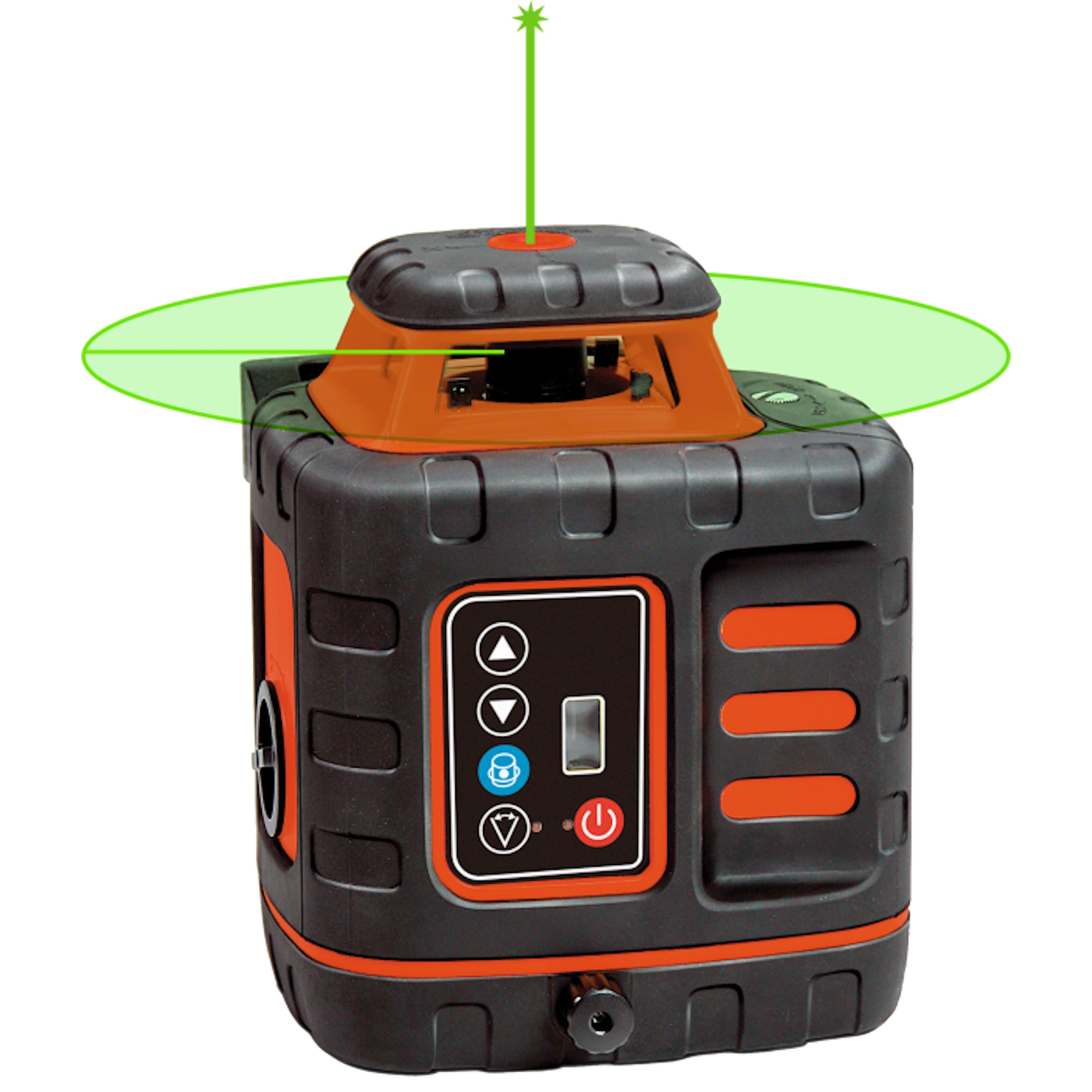

Johnson Level Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology - 40-6543

Johnson's 40-6543 Electronic Self-Leveling Horizontal & Vertical Rotary Laser with GreenBrite Technology is superior for indoor construction laser levels - construction contractors, contractors, finish carpenters and builders LOVE this rotary laser level for the visibility and accurate leveling it provides. Electronic self-leveling both horizontally and vertically, with the Green Laser Beam 400% more visible than red beams this makes leveling tasks fast and accurate. The Johnson Level 40-6543 rotary laser can be used for a number of indoor applications including layout of interior walls, checking door and window height, installing acoustical/drop ceilings, developing a layout for warehouse racking, room additions, drywall installation and more.

Features

  • Green Beam is 400% brighter than red beam laser levels
  • Self-leveling in the horizontal plane
  • Locking mechanism protects inner pendulum during transportation
  • Manual-leveling in the vertical plane with 90° split beam
  • Scan modes include dot and two adjustable line lengths
  • Visual and audible alarms when beyond leveling range

Specifications

  • Leveling Method: Self-Leveling (Pendulum)
  • Laser Wavelength: 532nm +/-10nm (Green)
  • Laser Classification: Class IIIa
  • Maximum Power Output: <=5mW
  • Accuracy: +/-1/8"/100ft. (+/-1mm/10m)
  • Interior Range: Up to 400` diameter (120m) depending on light conditions
  • Exterior Range: Up to 1,200` (400m) diameter (detector not included)
  • Remote Range: Up to 200` diameter (60m) with remote
  • Slope: N/A
  • Auto-Leveling Range: +/-3.5 degrees
  • Grade Setting: N/A
  • Power Supply: Rechargeable NiMH battery pack, or 6.4V adapter (included), 4 "C" alkaline batteries (not included)
  • Battery Life: Approximately 16 hours with rechargeable battery pack
  • Dimensions: 7.087" x 6.378" x 7.953" (180 x 162 x 202mm)
  • Weight: 4.409lbs. (2kg)
  • Working Temperature: 32F to 104F (0C to +40C)
  • Center Screw Thread: 5/8"-11
  • Scanning Modes: 0, 30, 60 degrees
  • Rotation Speeds: 150, 200, 250, 300 rpm
  • IP Protection Class: 66
  • Manufacturer's Warranty: 3 Years

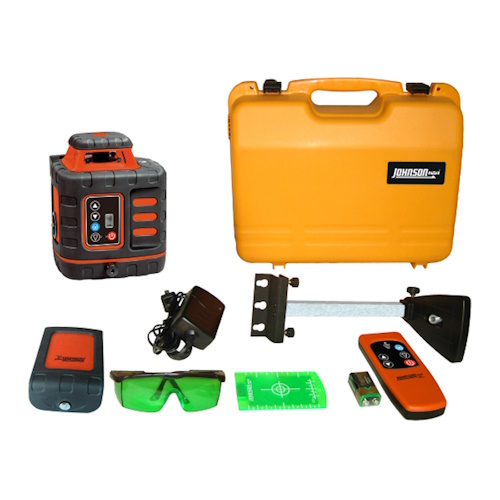

Includes:

  • Self-leveling rotary laser level with GreenBrite technology
  • NiMH rechargeable battery pack
  • Alkaline battery compartment (batteries not included)
  • 6V battery adapter
  • Remote control with 9V battery
  • Wall/Ceiling mount
  • Tinted glasses
  • Magnetic target
  • Instruction manual with warranty card
  • Hard-shell carrying case
  • MPN: 40-6543
  • UPC: 049448065431
