Johnson Level Self-Leveling Rotary Laser System - 40-6517

Product Code: ES5070
Condition: New
Johnson Level Self-Leveling Rotary Laser System - 40-6517 ES5070
Johnson Level Self-Leveling Rotary Laser System - 40-6517 ES5070
Johnson Level Self-Leveling Rotary Laser System - 40-6517 ES5070 Johnson Level Self-Leveling Rotary Laser System - 40-6517 ES5070
You May Also Like
Read Reviews

Customer Reviews

List Price $877.80
Your Price $548.99
(You Save 37%)
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information

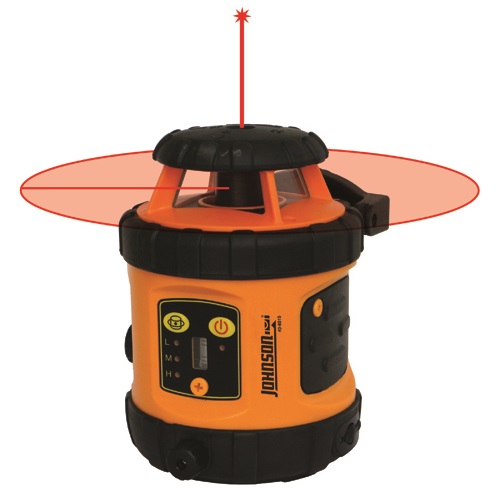

Johnson Level Self-Leveling Rotary Laser System - 40-6517

The Johnson Level Self-Leveling Rotary Laser System - 40-6517 is great for indoor and outdoor construction laser level applications including leveling, checking cut and fill, setting foundations and footings,Septic tanks and basement excavations, Acoustical ceiling and drywall installation, aligning and plumbing walls, Contour framing and more.

Features:

  • Self-leveling in the horizontal plane
  • Locking mechanism protects inner pendulum during transportation
  • Manual-leveling in the vertical plane with 90° split beam
  • Visual and audible alarms when beyond leveling range
  • Laser rotates at 200, 400, 600 RPM
  • Illuminated vertical vial

Specifications:

  • Leveling Method: Self-Leveling (Pendulum)
  • Laser Wavelength: 635nm +/-10nm
  • Laser Classification: Class IIIa
  • Maximum Power Output: <=5mW
  • Accuracy: +/-1/8"/50ft. (+/-2mm/10m)
  • Interior Range: Up to 200` diameter (60m) with detector
  • Exterior Range: Up to 800` diameter (240m) with detector
  • Remote Range: N/A
  • Slope: N/A
  • Auto-Leveling Range: +/-3 degrees
  • Grade Setting: N/A
  • Power Supply: 4 "AA" alkaline batteries (included)
  • Battery Life: Approximately 20 hours continuous use
  • Dimensions: 4.96" x 6.69" x 6.61" (126 x 170 x 168mm)
  • Weight: 3.3 lbs. (1.5kg)
  • Working Temperature: 14F to 113F (-10C to +45C)
  • Center Screw Thread: 5/8"-11
  • Scanning Modes: N/A
  • Rotation Speeds: 200, 400, 600 rpm
  • IP Protection Class: 54
  • Warranty: 3 Years

Includes:

  • Self-Leveling Rotary Laser Level
  • 4 "AA" alkaline batteries
  • Wall-ceiling mount
  • 8' grade rod
  • Laser Detector with 2 "AAA" alkaline batteries and clamp
  • Tinted glasses
  • Magnetic target
  • Elevating tripod
  • Instruction manual with warranty card
  • Hard-shell carrying case
  • 3 Year Manufacturer's Limited Warranty
  • MPN: 40-6517
  • UPC: 049448065172
