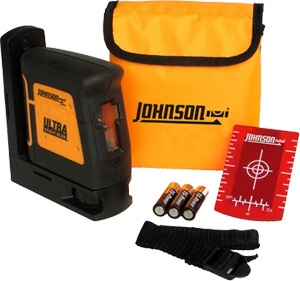

Johnson Level Self-Leveling Ultra Bright Cross-Line Laser Level 40-6625
Product Information and Details
High-powered bright red cross beam laser level
Self-leveling laser with optional manual mode
Simultaneously projects vertical and horizontal laser lines
Visual and audible alarms when beyond leveling range
Locking mechanism protects inner pendulum during transport
Manual mode allows unit to tilt to extreme angles
Self-leveling, cross-line laser level
3 "AA" alkaline batteries
Soft-sided carrying case
3 year Manufacturer's Warranty
Instruction manual with warranty card
Leveling Method: Self-Leveling (Pendulum)
Laser Wavelength: 635nm±10nm (Red)
Laser Classification: Class IIIa
Maximum Power Output: ≤5mW
Accuracy: ±1/8"/35ft. (±3mm/10m)
Interior Range: Up to 150' (45m) depending upon light conditions
Exterior Range: N/A
Self-Leveling Range: ±5°
Power Supply: 3 "AA" alkaline batteries (included)
Battery Life: Approximately 20 hours with alkaline batteries
Dimensions: 2" x 5.25" x 6.25 (51 x 133 x 159mm)
Weight: 2lbs. (0.93Kg)
Working Temperature: 14°F to 113°F (-10°C to +45°C)
Center Screw Thread: 5/8"-11, 1/4"-20
IP Protection Class: 55
