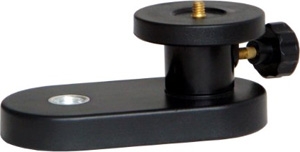

Johnson Level Tripod Adapter 40-6863

Product Code: ES2102
Condition: New
Johnson Level Tripod Adapter 40-6863
You May Also Like
Read Reviews

Customer Reviews

Your Price $22.99
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information

Features:

  • Converts 5/8"-11 thread size to 1/4"-20
  • Swivel adapter plate allows for 360 degree rotation
  • Locking knob secures instrument to desired location

Includes:

  • One 5/8"-11 to 1/4"-20 Adapter
  • Three-year manufacturers limited warranty.


Helpful Tip: If you're curious about thread sizes and what the size dimensions really mean, it's really simple once you understand them. Let's use a 5/8" x 11 thread size since thats the most common size thread used in surveying equipment instruments, tripods, and adapters in modern surveying. First keep in mind that threads have a crest and a trough. The first dimension is the diameter of the shank from crest-to-crest. Then, the second dimension is the number of threads in any given 1 inch of shank. So, a 5/8" x 11 is 5/8" in diameter and has 11 threads per inch of length. Even if you don't have a full inch of stock material, the number of threads per GIVEN inch of material still applies. If you think about it, 11 threads per inch is rather coarse, and 20 threads (as in 1/4" x 20) is almost double the amount of threads per inch of stock material. Hopefully this explanation of thread size dimensions helps you understand what you have and what you're looking to adapt to.
  • MPN: 40-6863
  • UPC: 049448068630
