LaserLine QUAD 1000 Precision Zenith Plumb Laser

LaserLine QUAD 1000 Precision Plumb Laser

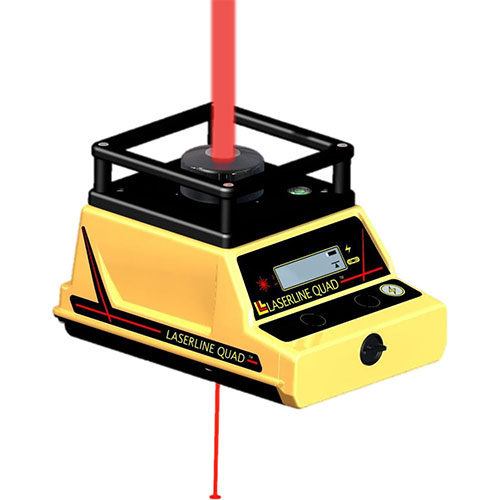

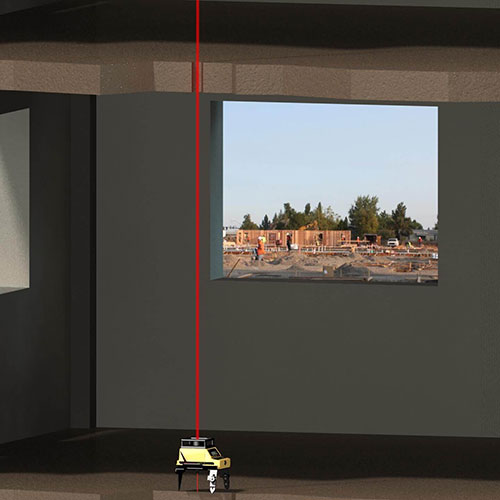

The QUAD 1000 projects a precise laser beam straight up (Zenith) for the purpose of providing plumb control for your project. The Quad 1000 provides a downward shooting plumb laser for getting over your point, upward zenith laser to 900 feet (274m), one button operation with LCD display and up to 140 hours battery life making it the perfect solution for applications such as high rise jobs, towers, elevator shafts, smoke stacks or virtually any job requiring zenith-vertical control. Utilizing ultra bright target template with laser pass through for the most visible and precise readings. Targets feature a special hard coat overlay to protect target face and are notched to act as a template for floor layout position of Quad 1000 laser. The Quad 1000 also features a short range downward shooting laser beam that is used like a plumb-bob or optical tribrach to easily get directly over your point.

The QUAD 1000 is a 5-arc second zenith laser featuring electronic servo self-leveling with variable temperature compensation for the most accurate and consistent readings. It measures or senses ambient temperature changes while in operation and continually re-calibrates itself to maintain the highest degree of accuracy possible. This insures consistent, accurate readings for plumb control on your project throughout the course of the job.

Technical Specifications:

• Self-Leveling: Electronic servo with variable temperature compensation
• Self-Leveling Range: ± 2°
• Plumb Beam UP Accuracy: ±5 arc seconds
• Plumb Beam UP Range: 900 feet (274m) (Depending on conditions)
• Plumb Beam UP Spot Size: At Source 3/8" (9.525mm) (Nominal), 300 ft. 3/8" (9.525mm), 600 ft. 9/16" (14.287mm), 900 ft.7/8" (22.225mm)
• Plumb Beam Down Accuracy / Range: 1 arc min. @ 15ft. (4.57m) (For getting over a point)
• Laser Type / Class: 635nm / CDRH class 3A / IEC 825-1 class 3R
• Laser Power: 4.5mw up / 1.0mw down
• Power Source: 4ea. D-cell alkaline batteries / 140 hrs. battery life
• (Depending on conditions)
• Operating Temperature: 0° to 120F (-18° to 50c)
• Storage Temperature: -4° to 158°F (-20° to 70°c)
• Dust and Water Sealed: To IP56 standards
• Weight: 7.25 lbs. (3.28k)
• Dimensions:
• 6 ½ inch / 16.51cm = H
• 6 ½ inch / 16.51cm = W
• 9 ¼ inch / 23.5cm = L
• Manufacturer's Warranty: 24 months parts and labor for defected workmanship and material.

Includes:

• QUAD 1000 Laser

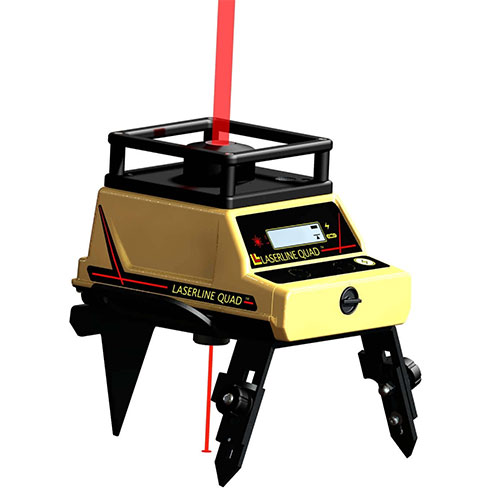

• Trivet Mount
• Target Template (2)
• Carrying Case
• Owners Manual
• D-Cell Battery (4)

Documentation:

• User Manual
• Product Brochure
