Schonstedt Combo Kit MPC-300


Product Code: ES4273
Secure Shopping!
Low Prices!
Trusted Brands!

Product Information and Details


Free Shipping

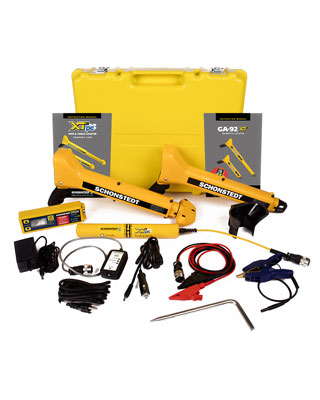

The Schonstedt MPC-300 Combo Kit includes both a XTpc Pipe & Cable Locator, as well as a GA-92XTd Magnetic Locator. Buying these two in a combo kit is a better deal than buying them separately. And, the carrying case holds both instruments for convenience on a construction or locating site.

Helpful Tip: 33kHz is useful in tracing electrical lines. (Go with the MPC-800 if you want to locate more gas and water lines than electrical).

The Combo Kit MPC Includes:

  • GA-92XTd Magnetic Locator (7 Year Manufacturers Warranty)
  • XTpc Pipe & Cable Locator 33kHz (3 Year Manufacturers Warranty)
  • Inductive Antenna
  • Transmitter
  • Holster Clip
  • Ground Stake
  • Power Supply & Charger for XTpc (AC/DC)
  • Conductive Clips Assembly
  • Small Heavy Duty Conductive Clip
  • Locating 101 Manual
  • Instruction Manual for XTpc & GA-92XTd
  • Rugged carrying hard case with custom foam insert

XTpc Receiver Specifications:

  • Operating Frequency: 33kHz plus 60Hz passive detection
  • Battery: 9V single battery
  • Battery Life: 18 hrs intermittent use
  • LCD Display: 3 1/2 digit reflective Signal Strength, Directional Arrows, Battery Status, Volume and Depth
  • Controls: ON/Volume adjustment, OFF, DEPTH, SONDE, AUTO GAIN, UP gain, DOWN gain, PASSIVE
  • Dimensions: Unit extended: 26 in (~66 cm), Unit collapsed: 15.5 in (~39 cm)
  • Weight: Under 2.5 Lbs

XTpc Transmitter Specifications:

  • Operating Frequency: 33kHz (factory selectable)
  • Dimensions: 7.2" L x 2.2" W x 1.5" H
  • Battery Type: Rechargeable NiMH 7.2 V, 3800mAH
  • Battery Life: 8 hours continuous use
  • Output Power: 1.8-watt at 33kHz
  • Controls: ON/OFF, UP Power, DOWN Power
  • LCD: 3 1/2 digit reflective Battery Status, Mode, Output Power Level, Output Current (mA)
  • Weight: Under 2 lbs

GA-92XTd Specifications:

  • Output Audio: Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz.
  • Output Visual: Expanding bar-graphs indicate polarity (positive or negative) and relative signal strength
  • Battery Indicator: 4-segment LCD
  • Gain: Continuous control
  • Volume: Continuous control
  • Input Power: Supplied by one 9 V battery (Lithium recommended, but not required)
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temperature: -13° F to 140° F, (25° C to 60° C)
  • Water Resistant: Length 11.5 in (~29 cm) (when extended)
  • Overall Length: Unit extended: 26 in (~66 cm), Unit collapsed: 15.5 in (~39 cm)
  • Weight: Approximately 2.4 Lbs (1.1 Kg)

Find it all Underground with the Schonstedt Combo Kit MPC

CABLE TV LINES, CAST OR DUCTILE IRON PIPES, COPPER PIPE, CORNER MARKERS, CURB & VALVE BOXES, ENCLOSURES, FIBER OPTIC W/ TRACER OR SHIELD, GAS LINES, WEAPONS, HAZMAT DRUMS, IRRIGATION LINES, MAG & PK NAILS, MANHOLE COVERS, MARKER MAGNETS, MANHOLD LIDS, MUNITIONS, PLASTIC PIPE W/ TRACER WIRE, POWER LINES, SEPTIC TANKS, STEEL PIPES, STREET LIGHT POWER, TELEPHONE LINES, WATER & SEWER LINES, WELL CASINGS

Condition: New
  • Usually ships off dock within:1 to 2 Business Days
List Price $3,399.00
Your Price $3,319.99 + Free Shipping
