Schonstedt combination Kit - REX System with GA-92XTd Magnetic Locator

Model Number: MPC-REX

Features:

The MPC-Rex Combo Kit is truly the one kit that finds it all, designed for utility locating professionals in Water, Sewer, Gas, Electric, Telecomm industries.
The entire system fits easily into a custom shoulder bag.
Ultralight Design
Compact & Portable
Pinpoint Accuracy

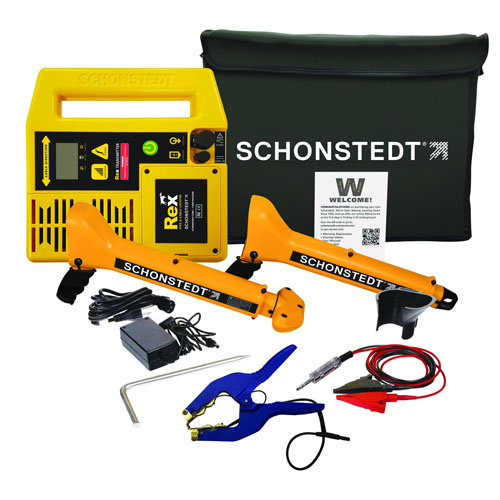

Package Includes:

GA-92XTd Magnetic Locator
Rex Multi-Frequency Pipe & Cable Locator
Holster (Model Number: PC10012)

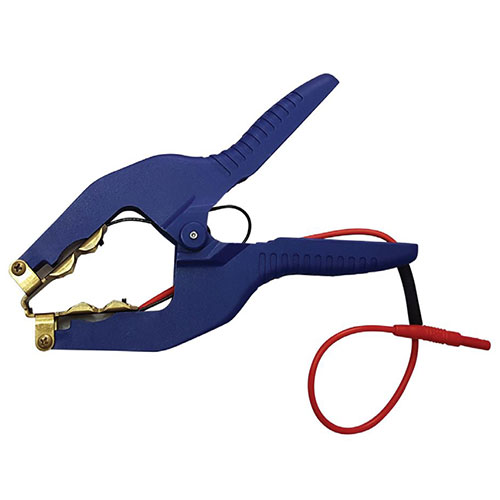

Conductive Clip Assembly (Model Number: TM70000) which includes Standard Conductive Clips — C91010 (Red) and C91011 (Black)
Soft Shoulder Bag (holds receiver, transmitter, accessories)
Ground Stake (Model Number: 208263)
Power Supply & Cord for Transmitter charging
7 Year Manufacturer's Warranty on GA-92XTd
3 Year Manufacturer's Warranty on REX

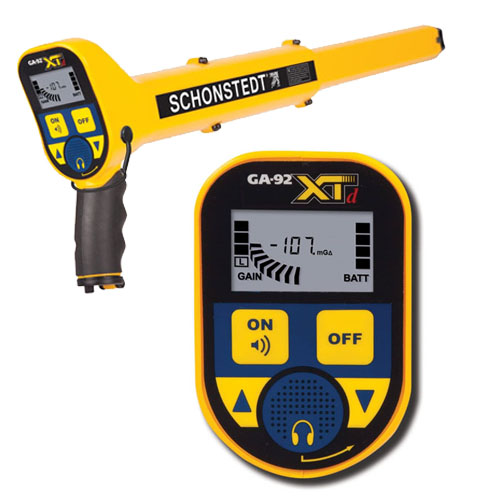

GA-92XTD Features:

Digital readout and expanding bar graph displays signal strength and polarity
Continuous Gain control, with range indicated by a 4-segment LCD at each quarter turn
Piezoelectric speaker
24-Hours operational life (intermittent usage)
Lithium batteries provide twice the life of alkaline, and have a 10-year shelf life.
4-Segment BATT LCD monitors battery charge
Lightweight, easy-to-use-design reduces search time
One hand operation
Fingertip control of volume and sensitivity
Modular construction; high performance components
Patented HeliFlux sensors
No response to aluminum, brass, or copper

GA-92XTD Specifications:

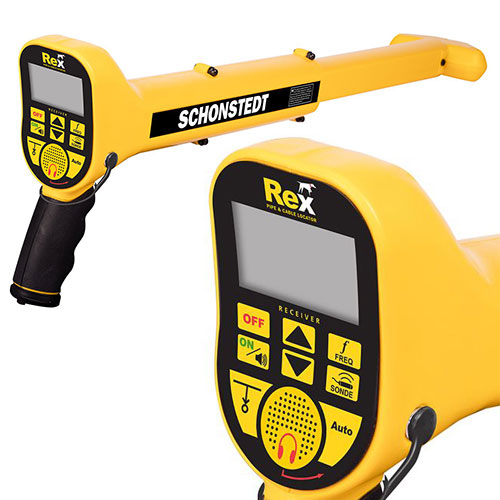

REX Features:

Ultralight Design: Receiver + Transmitter = Under 7lbs
Compact & Portable: Receiver retracts for easy carrying
Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
Transmitter comes equipped with rechargeable batteries

REX Specifications:

Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz; ; Passive: 50 or 60 Hz; Sonde: 512 Hz
Battery: One 9V battery
Battery Life:12 hours (intermittent use)
Weight (incl. batteries): 2.8 lbs (1.25 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Water and Dust Resistance: Rated IP54
Dimensions: Closed: 17.5" (~44 cm); Extended: 27.7" (~70 cm)
Max. Depth Capability:: Approximately 19' (5.8 m)
Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m)

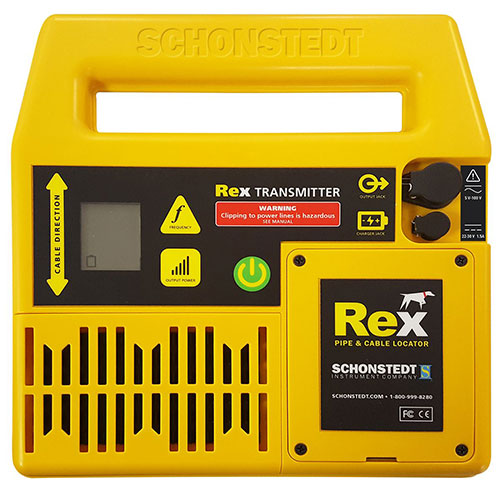

REX Transmitter Specifications:

Operating Frequency: 82kHz, 33kHz & 512 Hz
Operating Modes: Conductive, Inductive, and Inductive Clamp
Max. Output Power (Conductive mode @ 1000 Ω load): 512 Hz - 1/2, 1, 2 or 5 W, 33 kHz - 1/2, 1, 2 or 5 W, 82 kHz - 1/2 or 1
Battery Type: Rechargeable NiMH pack (12V)
Battery Life: 8 Hours (intermittent use)
Charging: Internal Smart Charger powered by AC/DC power adapter
Dimensions 10” x 10.25” x 1.75” (25.4 cm x 26 cm x 4.5 cm)
Weight (incl. batteries): 3.5 lbs (1.6 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Backlighting: White LED array
Water and Dust Resistance: Rated IP54
