Schonstedt Maggie Magnetic Locator with Soft Case

Product Code: ES6243
Condition: New
Schonstedt Maggie Magnetic Locator with Soft Case ES6243
Schonstedt Maggie Magnetic Locator with Soft Case ES6243
5 Stars Average Rating | Write a review
List Price $917.00
Your Price $686.99
(You Save 25%)
Free Shipping
Volume Discount
  • Usually ships off dock within:Same Day
Buy More and Save with Volume Discounts!
Qty: 3+
Price: $680.00

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Free Shipping

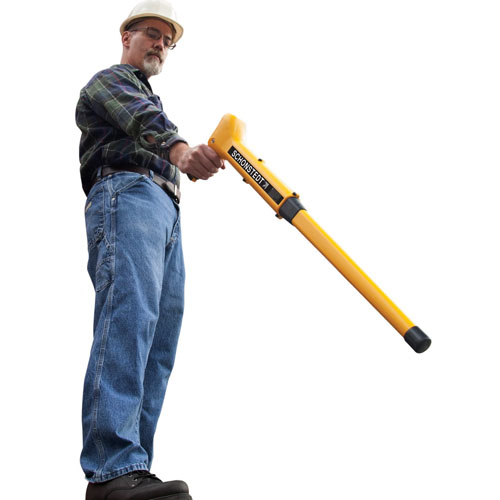

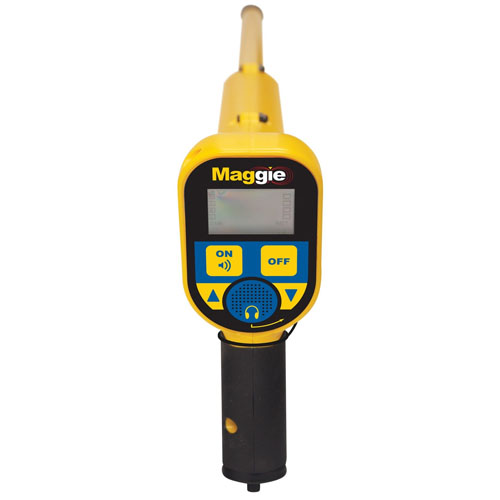

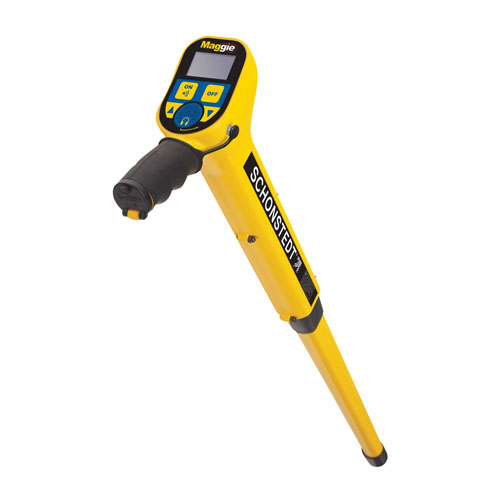

The Schonstedt “Maggie" is the Next Generation Magnetic Locator and is the latest addition to the line of popular Schonstedt Locators. Schonstedt Instrument Company set out to further withhold their stellar reputation as the industrys leading manufacturer of location equipment. The Schonstedt Maggie combines the best features of two flagship products; The sensitivity, precision, and reliability of their GA-52Cx model, and the single-handed operation of the GA-92XT. In basic terms, Schonstedt took the best features of their very popular 52Cx model and combined it with the ergonomics of their 92 model and created what we like to call "The best of the best" in the world of magnetic locators. Schonstedt Engineers went back and took user input over the years and come up with features like an easy way to hold their popular 52Cx model and installed a handle on it. Users did not like opening up the 52Cx exposing the electronics just to replace the battery (The Maggie's handle is where the battery is installed and the electronics are not exposed during a battery change). They also listened to their users and made a soft case that can easily fit behind a truck seat, as well as be easily carried with its shoulder strap. Another feature is the knobs are now on top and not under the top like they are on the 52Cx. After selling Magnetic Locators for years, the staff here at EngineerSupply can tell that this model was designed for the user with valuable user input, and feel that the "Maggie" will be Schonstedts most popular model going forward. Land Surveyors sometimes call magnetic locators "pin finders", or "survey pin finder", or even a metal detector.

Specifications:
  • Audio Output: Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz.
  • Display Output: Expanding bar-graph indicates polarity (positive or negative) and relative signal strength
  • Battery Indicator: 4-segment LCD
  • Gain: Continuous control, with range indicated by a 4-segment LCD at each quarter turn
  • Volume: Continuous Control
  • Input Power: Supplied by one 9 Volt Alkaline Battery
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temperature: -13°F to 140°F (-25°C to 60°C)
  • Water Resistant Length: 17.5 in (44 cm)
  • Overall Length: 32.5 inches (83 cm)
  • Nominal Sensor Spacing: 20 inches (50 cm)
  • Weight: Approximately 2.6 Lbs (1.2 Kg)
  • Construction: High impact ABS


The Schonstedt Maggie comes standard with:
  • Schonstedts 7 Year Warranty
  • Padded Carrying Case with Shoulder Strap
  • 9 Volt Alkaline Battery
  • Instruction Manual

Other Docs:
View the Maggie Depth Chart

Download:
Maggie Instruction Manual

Schondstedt Maggie circa 2016
  • MPN: Maggie
  • UPC: #N/A
