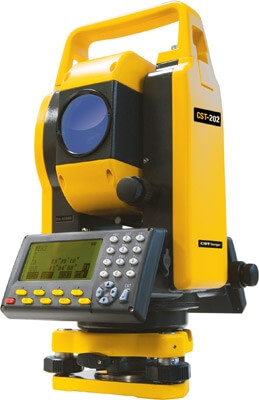

The CST202 is easy-to-use, reliable, and an affordable Total Station.
Applications
Surveying and Construction
Mapping and GIS
Utilities
Environmental Studies
Geomaking
Technical Specifications
Magnification: 30X
Field of View: 1º30'
Angular Accuracy: 2"
Battery Type: Ni-MH
Compensator Type: Single Axis
Display: Graphic LCD, alphanumeric, 8 lines of 20 characters
EDM Accuracy (prism/sheet): ± (2mm+2ppm x d) mm
Measuring Range (single prism): ±5249 ft (1600m)
Measuring Range (triple prism): ±8202 ft (2500m)
On-board data collection (memory): 15,000 points (Measured and input coordinate data)
This total station includes its own upload and download software which will export coordinates as well as DXF files for raw data. Also includes download cable.
Includes: (2) Ni-MH Batteries, Battery Charger, Software, Cable, Tool Kit, Sun Shade, Rain Cover, Plumb Bob, User's Manual, Hard Carrying Case, and Manufacturers 2-Year Warranty.
- Usually ships off dock within: 5 to 7 Days
|
