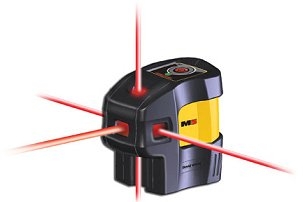

CST/Berger Self-Leveling Five Beam Laser Level 58-XP5

Product Code: ES2550

Authorized Dealer

Secure Shopping!

Low Prices!

Trusted Brands!

Share |

Product Information and Details

See Similar Products and Categories

Quick, Easy, and Accurate Setup. Square, Align, and Transfer Point from Floor to Wall.

Five highly focused self-leveling laser beams provide accuracy of 3/16-in at 100 feet. Tough on the job site with co-molded rubber housing with gasket for weather/dust resistance.

Features

Single-button operation

Easy access battery compartment

Low power indicator

Out-of-level indicator

Auto shut-off

Technical Specifications

Laser Diode: 635nm X 5

Accuracy: ± 3/16" @ 100' (4.8mm @ 30m)

Accuracy-Down Plumb: ± 1/4" @ 50' (6mm @ 15m)

Range: Up to 100' (30m) depending on illumination

Leveling Type: Gimbal, ball bearing hung compensator magnetically dampened, ±5-degrees

Environment: Water and dust resistant (IP54)

Power: Three (3) "AA" batteries (included)

Weight: 1.2lb (545g) with batteries

Warranty: 2 years

Use to: Plumb and Align: Walls, Doors, Frames, Stud Beams, Windows and Skylights; Level Electrical Outlets; Stud and Curtain Wall Plumbing, HVAC, Plumbing, Pipe Installation, etc.; Easily Lay Out Right Angles; Establish Diagonals and Footings for Decks, Porches, and Patios; Grade Determination; Dry Wall Installation.

Package Contents: Includes 3-AA batteries, multi-mount, target, mounting strap, soft case pouch, hard carrying case, and instruction manual.
