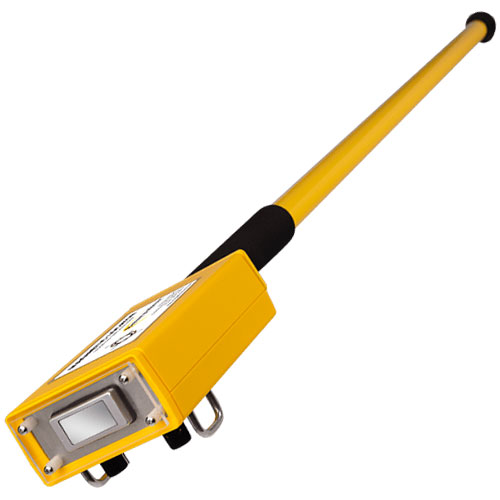

Dunham & Morrow Magnetic Locator DML2000-XRM (Metered Version) with Hard Case

Product Code: ES293
Condition: New
Dunham & Morrow Magnetic Locator DML2000-XRM with Hard Case DML2000-XRM-HC
Dunham & Morrow Magnetic Locator DML2000-XRM with Hard Case DML2000-XRM-HC
List Price $755.00
Your Price $569.99
(You Save 25%)
Free Shipping
  • Usually ships off dock within:Same Day

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

More Information
Free Shipping

Made in the USAThe Metered Version of the DML2000-XR, the DML2000-XRM Magnetic Locator has all of the standard features of the DML2000-XR, plus an easily readable Liquid Crystal Display (LCD) panel meter. The DML2000-XRM with its 3-1/2 digit (0 to ± 1999) Digital Panel Meter, gives the operator a real time, true visual representation of the instrument's output frequency changes, it also provides the highest resolution display of any Magnetic Locator. The digital display provides an exact numeric readout with a separate polarity indicator that can be even more useful to the experienced professional.

When the panel meter peaks and the polarity changes, this normally indicates that you are directly over the end of that pipe section, typically a weld or a "Bell" joint. A polarity change that occurs when the meter readings are at a minimum means you are over the midpoint of that pipe section.

As with any magnetic locator, the importance of the operator’s magnetic cleanliness cannot be over-emphasized. Some of the more common sources of local magnetic interference are watches, oxygen tanks, knives, flashlights, and battery operated devices.

The depths outlined here are typical responses. However, there have been numerous instances where targets have been located at greater depths. In almost every case, the magnetic locator operator knew how to get the maximum out of his instrument. He was magnetically clean, his search area contained a minimum amount of trash metal, and he held his instrument in a vertical position while using the instrument on the maximum sensitivity setting.

Target Depth
Iron Marker (3/4" x 18") Up to 9 feet
Cast-Iron Pipe (4" Pipe) Up to 10 feet
Manhole Cover Up to 10 feet
Well Casing Up to 18 feet
PK Nail (1.5") Up to 12 inches
Iron Valve Up to 10 feet
55 Gallon drum Up to 10 feet
Septic Tank (Handles) Up to 5 feet
  • Visual Display – 3.5 Digit LCD Panel Meter (0 to ± 1999)
  • Dimensions: 42.5" Long x 3.75" Wide x 1.75" Deep
  • Audio Output - Variable Frequency (20 – 3,200) Hertz
  • Six Sensitivity Settings
  • 40 Hours of operation from 4 "AA" Alkaline batteries (increases to over 80 hours when lithium batteries are used).
  • Low Battery Indicator - RED Flashing LED
  • Optional Analog/Data Logger output – available upon request
  • Weighs only 1.8 pounds

Lifetime Warranty
All Dunham & Morrow magnetic locators are warranted to the original purchaser to perform failure free for the life of the product, which is no less than 25 years from the date of purchase. Dunham & Morrow will repair or replace any defective magnetic locator, provided that such magnetic locator has not been subject to abuse, misuse, neglect, modification, nor been repaired by anyone other than DMI or its authorized representative. The batteries are specifically excluded from this warranty, as is exposure of the electronics to battery acid corrosion.

Lifetime Manufacturers Warranty, Hard Plastic Case, Instruction Manual, a Carrying Strap and an Extra Set of Batteries.

  • MPN: DML2000-XRM-HC
  • UPC: #N/A
