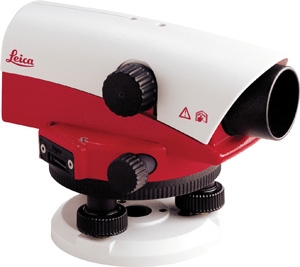

Leica Automatic Level NA720


Product Code: ES2192
Secure Shopping!
Low Prices!
Trusted Brands!

Share |

Product Information and Details


See Similar Products and Categories

20x Power, Built for builders, engineers, and surveyors, nothing stops a Leica NA700 Series Automatic Level. A short drop onto the ground, a fall into water, vibration from heavy machinery, with a Leica NA700 level you can continue working. No time-consuming checking or readjustment required. And, the "best-in-class" optics enable you to always work as precisely as possible, even in twilight. What does this add up to? Reduced work downtime, thus translate into higher productivity, resulting in higher reliability and accuracy.

100 Years of Leica Geosystems Research, Development and Experience In every LEICA NA700 series level lies over a century of research and development from forefathers Kern Swiss and WILD Heerbrugg. Continuous application of the most modern technology has led to Leica Geosystems of today. Leica offers a wide range of surveying instruments and software, with a legendary reputation for precision and reliability that has been put to the test for decades on the building site.

Superior Performance, Superior Value Extreme robustness, the highest measurement precision and an extremely competitive price. All this in one package. No one else comes close.

So Easy to Use
The circular bubble and horizontal circle can be read directly next to the telescope. Approximate targeting is made easy using the external sight. The image is presented upright and precise targeting is quick, courtesy of the double-sided endless drives. The NA728 and NA730 have a rough/fine focus drive making your work even easier.

Free Choice
Configure the level to suit your work and preferences. The horizontal circle can be read in either degrees or gons, the footscrews have adjustable resistance. Also, the NA700 series may be mounted on flat or dome head tripod.

Ergonomic Optics
Probably the finest optics in the world. Banish tired eyes forever. Ensures you're really aiming accurately at the target, even in extreme light conditions. A minimum target distance of 50cm enables you to work in the tightest conditions.

Just in case – Shock Resistant
Even after a fall, the LEICA NA700 series levels can be used again straight away. No need to check or readjust the instrument in the workshop or send it for service. In our quality assurance tests the LEICA NA700 is subjected to impacts with an acceleration of up to 700G. It's also passed the tough ISO9022-33-05 standard. These quality tests ensure that the LEICA NA700 can withstand the roughest treatment on site.

Just in case – Waterproof
Water, dust and dirt have no effect on the LEICA NA700 series. High quality workmanship matched with an intelligent design, watertight seals, a gas-filled telescope and the most modern technology mean that even after a total soaking you just carry on working. LEICA NA700 series levels are tested for water resistance up to IP57 (total immersion) of the IEC60529 standard.

Just in case – "Best in class" optics
Whether early in the morning, late in the afternoon or simply in the shade of a large building, you can work with the NA700 series where the others simply have to give up. Better contrast reduces the strain on your eyes and makes it easier to read the measurement. The building site is no place for compromise. That's why every LEICA NA700 level uses our renowned optics. What does this mean? Longer periods of use with reduced chances of error. And at no extra cost.

Technical Data
  • Magnification: 20x
  • Telescope Image: Upright
  • Gas Filled: Yes
  • Diameter of objective: 30mm
  • Shortest focusing distance: 0.5m
  • Angle Measurement: 360degree/400gon Selectable

    Distance Measurement:
  • Multiplication Factor: 100
  • Additive Constant: 0 Circular Bubble: 10' / 2mm
  • Focus Drive: rough
  • Horizontal Drive: both sides

    Accuracy (Standard deviation)
  • Per km double-run: 2.5mm
  • Single measurement with 30m target dist: 1.5mm

    Compensator
  • Setting Accuracy (Standard deviation): <0.5"
  • Working Range: ±15'

    Environmental
  • Impact: ISO 9022-33-5
  • Water and Dust Resistance: IP57 (immersion)

    Temperature Range
  • Operation: –20 to +50 °C
  • Storage: –40 to +70 °C

    Dimensions, Weight
  • Instrument Dimensions: 19×12×12cm
  • Instrument Weight: 1.6kg
  • 5/8 x 11 Thread Size

    Hard Carrying Case, Rain Cover, Users Manual, and One Year Manufacturers Warranty Included.

    Categories For This Product

    Home >> Surveying Equipment >> Automatic Levels
    Home >> Shop by Brand Name >> Leica Geosystems
    Condition: New
    • Usually ships off dock within:1 to 2 Business Days
    List Price $495.00
    Your Price $479.99
    You Save $15.01
