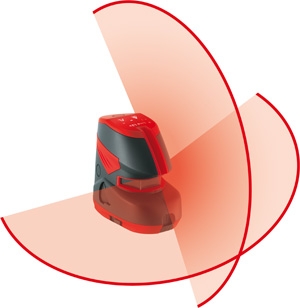

Leica Lino L2+ Line Laser 783711

Product Code: ES4252
Condition: New
Leica Lino L2+ Line Laser 783711 ES4252
Leica Lino L2+ Line Laser 783711
Leica Lino L2+ Line Laser 783711 ES4252 Leica Lino L2+ Line Laser 783711
Your Price $299.00
Free Shipping
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

More Information
Free Shipping

Whether horizontal, vertical, or crossed, the red lines are perfectly visible everywhere on the wall. This laser has three modes (horizontal, vertical, or crossed) as well as manual mode where you can manually adjust the lines to where you want them to be (non-leveling mode).

The Leica LINO L2+ is a time saving laser level tool. Time consuming and tedious drawing of lines on the wall is a thing of the past. The Leica LINO L2+ Laser Level projects exactly, quickly and easily which allows you to concentrate on the job in hand.

It is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignment of ± 4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines. Errors are prevented.

Very easy to see laser lines
It is possible to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.

Exact 90° angle
Alignment work, such as marking 90° angles, is performed at the touch of a button. A true time saving tool.

Lock function
You can manually switch off the self-leveling using the lock function. The laser line can then be projected at any angle.

  • Range: Up to 50 ft (15m) (dependent on the lighting conditions) >30.m with detector
  • Leveling accuracy: ± 1.0 mm at 5m
  • Self-leveling range: 4 º ± 0.5 º
  • Horizontal accuracy: ± 1.5mm at 5m
  • Vertical accuracy: ± 0.75mm @ 3m line length
  • Beam divergence: < 180º
  • Laser type: 635 nm, laser class ll
  • Battery type: AA, 4 x 1.5V
  • IP54: Protected against dust, splashes
  • Operating Temperature: -10 º C to 40 º C
  • Storage temperature: -25 º C to 70 º C
  • Size (HxDxW): 117.8x130.7x75.4mm
  • Weight: 370g
  • Tripod screw thread size: 1/4"

Includes: Leica Lino L2+ Laser, Pouch, Magnetic Multifunction Adapter, Target Plate (provides a projection surface in an open space), Alkaline batteries (type AA, 4 x 1.5v), and 3-Year Manufacturers Warranty.

Decide which Leica Lino is the best fit for you.

Function Lino P3 Lino P5 Lino P2 Lino P2+ Lino L2P5
Plumbing up and down x x     x
Setting out right angles   x     x
Horizontal leveling x x x x x
Vertical aligning     x x x
Vertical and horizontal aligning     x x x
Aligning at any angle     x x x
  • MPN: 783711
  • UPC: 640110692790
