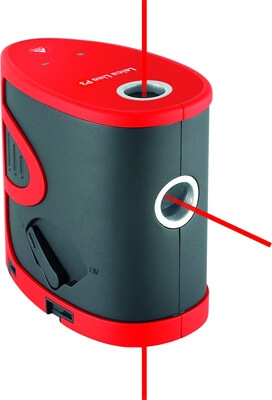

Leica Lino P3 Line Laser 777067

Product Code: ES4250
Condition: New
Leica Lino P3 ES4250 777067
Your Price $199.00
Free Shipping
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Free Shipping

Whether horizontal, vertical, or crossed, the red lines are perfectly visible everywhere on the wall. This laser has three modes (horizontal, vertical, or crossed) as well as manual mode where you can manually adjust the lines to where you want them to be (non-leveling mode).

The Leica LINO P3 is a time saving laser level tool. Time consuming and tedious drawing of lines on the wall is a thing of the past. The Leica LINO P3 Laser Level projects exactly, quickly and easily which allows you to concentrate on the job in hand.

Self-leveling
It is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignment of ± 4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines. Errors are prevented.

Very easy to see laser lines
It is possible to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.

Exact 90° angle
Alignment work, such as marking 90° angles, is performed at the touch of a button. A true time saving tool.

Lock function
You can manually switch off the self-leveling using the lock function. The laser line can then be projected at any angle.

    Specifications
  • Range: Up to 50 ft (15m) (dependent on the lighting conditions) >30.m with detector
  • Leveling accuracy: ± 1.5mm at 5m
  • Self-leveling range: 4 º ± 0.5 º
  • Accuracy of plumb point @ 5 m: ±1.5mm
  • Number of laser points: 3
  • Laser type: 635 nm, laser class ll
  • Beam Direction: Up, Down, Forward
  • Battery type: AA, 3 x 1.5V
  • IP54: Protected against dust, splashes
  • Operating Temperature: -10 º C to 40 º C
  • Storage temperature: -25 º C to 70 º C
  • Size (HxDxW): 99.1x108.1x59.3mm
  • Weight: 310g (without batteries)
  • Tripod screw thread size: 1/4"

Includes: Leica Lino P3 Laser, Pouch, Magnetic multifunction adapter, Target Plate (provides a projection surface in an open space), and 3-Year Manufacturers Warranty.

Decide which Leica Lino is the best fit for you.

Function Lino P3 Lino P5 Lino P2 Lino P2+ Lino L2P5
Plumbing up and down x x     x
Setting out right angles   x     x
Horizontal leveling x x x x x
Vertical aligning     x x x
Vertical and horizontal aligning     x x x
Aligning at any angle     x x x
  • MPN: 777067
  • UPC: 640110692615
