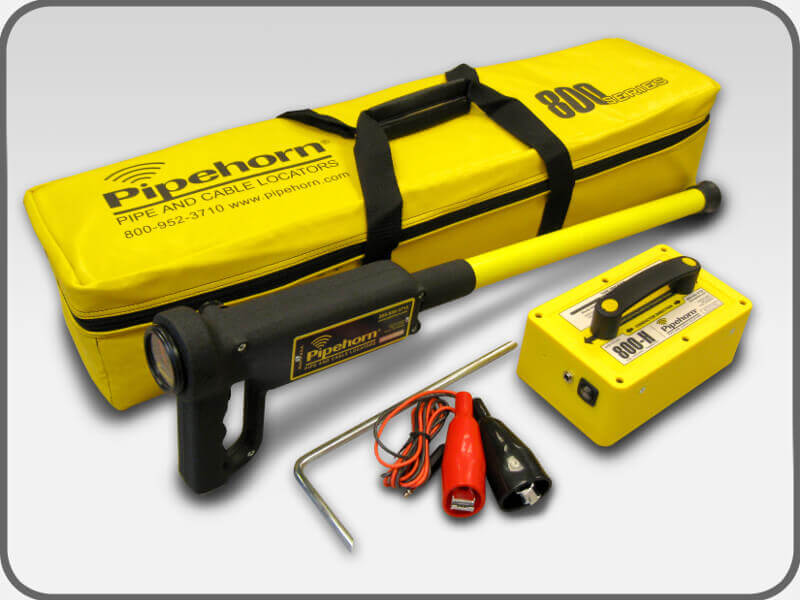

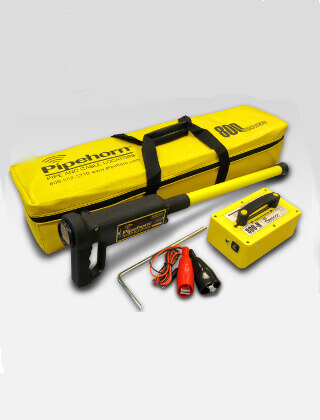

Pipehorn 800H Single-Frequency Pipe & Cable Locator Model MD820

Note: The 800L is a single-frequency instrument. We always recommend the 800HL model which is a dual-frequency instrument. The 800HL dual-frequency model allows for increased depth in locating underground utilities.

With superior high frequency (480 kHz) performance, Pipehorn is the best utility location tool in the industry when direct connect is not possible, and on the toughest conductors: coated iron pipes with insulated joints, un-energized power (street/parking lot lights), worn-out tracer tape & wire, short side services & stub-outs, concentric neutrals, and fiber. Nothing sweeps areas for un-marked utilities like a Pipehorn locator.

Conductive transmission of high (480 kHz) frequency. Working depth down to 18 feet deep depending on the type of connection, soil conditions and how well the item conducts the signal.

Fast-response signal strength meter and sharp audio tone for precise pinpointing.

Watertight reinforced receiver wand. More durable than ever.

All-weather, high-impact ABS housing on the transmitter. Audio tone indicates battery strength and good connection. Low profile (won't tip over). Bright yellow (easier to see).

Lightweight, space saving carry bag.

• Frequencies: 480 kHz
• Modes: Inductive & Conductive
• Battery: 8 "C" alkaline batteries
• On/Off indicator
• Battery Life Indicator
• Good Signal Indicator

• Output: Signal strength meter and audible, built in speaker
• Gain: Smart Control (semi-automatic)
• Battery: Two 9-volt
• Weight: 3.4 lbs. (1.5 kg)

• Conductive Cables
• Extension Sweep Handle
• Ground Rod
• Padded Carrying Bag
• Total Shipping Weight: 18 lbs.

FULL 3-Year Manufacturers Warranty Included.

Documentation:

• Pipehorn 800-H Pipe and Cable Locator Manual (PDF)
