Product Information and Details

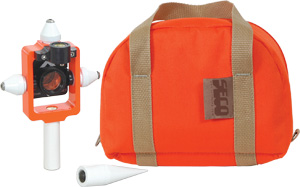

The popular SECO stakeout prism is now in 'kit' form, which allows you to handle several surveying tasks from topos, stakeout, and construction handheld applications.
The white site cones on X and Y axis help improve centering of your instrument crosshairs for vertical and horizontal pointing. The horizontal site cones double as tilting axis locks
The heavy-duty white point can handle the abuse of being on the bottom of the pole and can be used for hand held applications as well.
The white adapter is used to make the prism height 115 mm for use with most standard prism poles.
An adjustable 40-minute circular vial is mounted at center and to the front for easy viewing.
It can be used in four height configurations: 50 mm, 100 mm, 115 mm and 150 mm, top or bottom of the pole, handheld, or tribrach mounted.
The 25-mm copper-coated prism is moisture-resistant and has good range; 3000-to-4000 ft is common with most instruments.
This kit features Zero or 30-mm prism offset positions.
It comes with a padded carrying case.
Weighs 0.8 lbs (0.36 kg), 1.3 lbs (0.59 kg) with HD point
