Product Information and Details

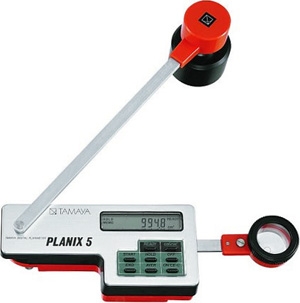

The Planix 5 is an electronic Polar Compensating Planimeter. It can measure an area that is 14" or 356 mm diameter, without repositioning the polar pivot point. The length of the polar arm is 8 3/4".
The Planix 5 has an 8-digit readout and operates up to 30 continuous hours using a rechargeable NiCad battery. Its features include selectable English or Metric scales, multiple measurement averaging, display hold, accumulative measurement, and electronic zero reset. A battery power saving provision automatically turns off the instrument when left unoperated for more than three minutes.
Accuracy is better than 0.2%. Complete with A/C charger, battery and carrying case.
Weight 2 pounds. One year manufacturers warranty.
Power: Internal NiCd or AC Adaptor
Operating hours: After 15 hours recharge is 30 hours
Display Method: LCD with zero suppression
Resolution: One digit corresponds to 0.1cm2 or 0.01in2
Accuracy: Better than +/- 0.2% (+/- 2/1000 pulses)
Measuring Range: 35.6cm dia.
14" dia.
Weight: Approx. 900g
Dimension: (Polar Arm Length)
64 x 213 x 39mm (222mm)
Carrying Case
