Tamaya Planix 6 Roller Planimeter 365161

Product Code: ES345

Authorized Dealer

Secure Shopping!

Low Prices!

Trusted Brands!

Share |

Product Information and Details

Electronic planimeters are excellent tools to use when you measure irregular shaped areas on plans or drawings. They eliminate the need for grids, charts, or calculations done by hand. Planimeters are used by many in the following professions: Surveying, Civil Engineering, Cartography, Architecture, Medicine, Clothing Industry, Boat and Ship Design, Office, Store and Plant Planning, and Biology.

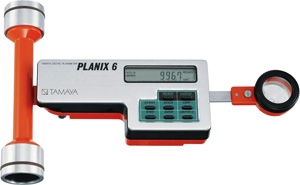

The Planix 6 is a Roller-type electronic Planimeter. It can measure a rectangular area that is 11 3/4" wide or 300mm by an unlimited length and is ideal for measuring elongated areas.

The Planix 6 has an 8-digit readout and operates up to 30 continuous hours using a rechargeable NiCad battery. Its features include selectable English or Metric scales, multiple measurement averaging, display hold, accumulative measurement, and electronic zero reset. A battery power saving provision automatically turns off the instrument when left unoperated for more than three minutes. It comes complete with AC charger, batteries, and carrying case.

Accuracy: is better than 0.2%.
Manufacturers warranty: One Year.
Power: Internal NiCd or AC Adaptor
Operating hours After 15 hours recharge: 30 hours
Display: Method LCD with zero suppression
Resolution: One digit corresponds to 0.1cm2 or 0.01in2
Accuracy: Better than +/- 0.2% (+/- 2/1000 pulses)
Measuring: Range 300cm x 30cm 118" x 11.8"
Weight: Approx. 650g
Dimension: (Polar Arm Length) 150 x 240 x 39mm
Carrying Case is included.

This is a "Special Order" item. Once it has been ordered, the order cannot be canceled and it cannot be returned.
