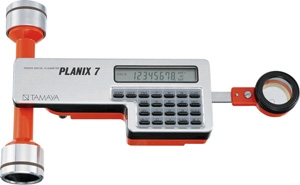

One of our most popular sellers, the Planix 7 is an enhanced roller-type electronic planimeter.
Electronic planimeters are excellent tools to use when you measure irregular shaped areas on plans or drawings. They eliminate the need for grids, charts, or calculations done by hand. Planimeters are used by many in the following professions: Surveying, Civil Engineering, Cartography, Architecture, Medicine, Clothing Industry, Boat and Ship Design, Office, Store and Plant Planning, and Biology.
The Planix 7 offers all of the features of the Model 6, plus display of areas directly in terms of cm squared, m squared, in squared, ft squared, or acres, plus provision for input of different X and Y scale factors. These expanded features can greatly simplify many measurement operations.
Just enter scale from your plan or drawing, and start rolling to get the measurement of an irregular shaped area. With the Planix 7, different X and Y scales can be entered. The Planix 7 accurately measures large areas with a range of 118" x 11.8" (300cm x 30cm). If your area is larger, we recommend splitting your area into multiple parts and measuring each part, then adding the results together.
Comes complete with A/C charger, battery and carrying case and one year manufacturers warranty. Weight is 2 pounds.
Specifications
Power: Internal NiCd or AC Adaptor
Operating hours After 15 hours recharge: 30 hours
Display: Method LCD with zero suppression
Resolution: One digit corresponds to 0.1cm2 or 0.01in2
Accuracy: Better than +/- 0.2% (+/- 2/1000 pulses)
Measuring Range: 300cm x 30cm 118" x 11.8"
Weight Approx. 650g
Dimension: (Polar Arm Length) 150 x 240 x 39mm
Manufacturers warranty: One Year.
Carrying Case: Included.
- Usually ships off dock within: 1 to 2 Days
|
