TOM Portable Drafting Machine

Product Code: ES823
Condition: New
TOM Portable Drafting Machine ES823
You May Also Like
Read Reviews

Customer Reviews

Product Rating

Nice drafting machine. Well constructed. I have issues with two things. The vertical arm is only connected to the top rail. The bottom of the arm is not connected to anything. Because of this there is a slight flex to the vertical rail. The other issue is in order to store the drafting machine in the nice storage box you have to disassemble the whole unit and reassemble it again when you want to use it. This was disappointing. Other than those to issues it would have received 5 stars.
4 Stars Average Rating | Write a review
List Price $1,125.00
Your Price $699.99
(You Save 38%)
Free Shipping
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Free Shipping

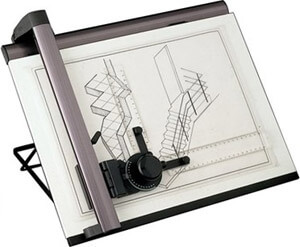

Track-type drafting machine complete with drawing board that features a modern and compact, precision design. Functional drawing board with precision ball bearing, vertical sliding track drafting system and break lever on vertical sliding track offers three positions. 150° double hinged drawing head with two sets of plexiglas scales included, one set metric, the other is in full and half inch graduations. Complete system weighs 20 lbs with a work surface area of 19-1/2" H x 22" W. Adjustable stand allows board angle at 0,° 20°, and 45°. Can be used along with CAD furniture set up. Carrying case protects parallel straightedge and provides convenient portability.

  • This item is only available in a right-handed version
  • Includes Manufacturers Limited 90 Day Warranty
  • MPN: TOM
  • UPC: 088354760917
