The Topcon RL-VH4 series laser level provide fast, superior leveling and visibility for interior and general contractor's. The Topcon RL-VH4 Series Laser Levels are up to four times more visible with twice the operating time. It's an unbeatable combination.
Set up within 5 degrees of level and push the power button. The RL-VH4 series features fast self-leveling (under 5 seconds) so it will be spinning and ready to go to work when you are. There's even an HI alert / auto shut down assuring there's no costly re-work should the laser be bumped or disturbed.
Topcon's SmartScan lets you draw a line of focused laser light on any surface, to any length you need. And it stays there as long as you need, automatically, until you release it using the target.
Use the 90 degree plumb beam to easily square walls and align wall track. Simply place the optional vertical target on your line, place the RL-VH4DR/G2 at the other end, and use the manual slope buttons, or included RC-40 Remote to center the beam on the target.
LS-80 Laser Sensor (standard with GC models)
Perfect when you're using your RL-VH4 series to set footers or check grade the LS-80 features an audible on-grade alarm, 11 levels of on-grade indication, laser power indicator, and HI alert, all displayed on a high contrast LCD. The LS-80 also comes with Topcon's Sensor Holder 6, perfect for attaching the sensor securely to just about any grade rod, square or round. Please note that the LS-80A works with the red laser, and LS-80G works with the green laser.
RC-40 provides complete control of your RL-VH4 laser up to 300' (100m) away. It also features two-way communication providing HI alerts and laser battery power confirmation from the remote.
Removable Lighthouse Guard
Every RL-VH4 series laser features a removable lighthouse guard. Simply push the release button and tilt the guard back for unobstructed operation. Snap it back in place for complete protection of the rotating head in harsh or potentially damaging environments.
Easy To Use
Need a laser level to be easy to use? You can do Horizontal, Vertical, or Plumb jobs and get the productivity boost you have come to expect from Topcon.
The RL-VH4 series offers three power options for convenience and flexibility: alkaline (standard), rechargeable (optional), and AC run/charge (optional).
The RL-VH4 provides up to twice as many hours of operation from one set of alkaline batteries than most other lasers.
- Fast self-leveling - under 5 seconds
- SmartScan Technology
- Horizontal / vertical operation
- RC-40 remote
- Removable lighthouse cover
- Accuracy: ±1/8" at 100'
- Working range with detector (diameter): 2,000'
- Beam type: RL-VH4G2 - 532 nm green
- Laser class: 3R
- Rotating speed: 0-300 rpm
- Water-dust proof: IP 54
- Scanning width: 180 degrees
- With Alkaline: RL-VH4G2 (45hr operating time)
- With Rechargeable Ni-MH, BT-63Q: RL-VH4G2 (24hr operating time)
- 182 x 167 x 240mm
- Radius: 100m +
- Water-dust proof: IP 66
- Power: 2 x AA

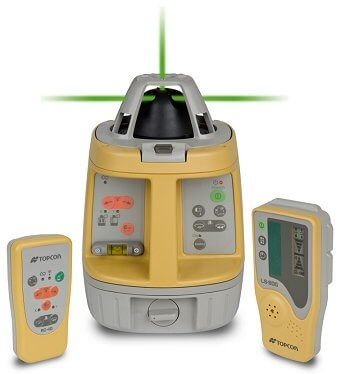

The RL-VH4G2 G.C. Package Topcon part #: 57144 includes: RL-VH4G2, RC-40 Remote, LS-80G laser detector w/Holder 6, Dry Battery Kit and Carrying Case.
- Rotary laser — 5 year manufacturer's limited warranty
- Accessories — 90 day manufacturer's limited warranty
