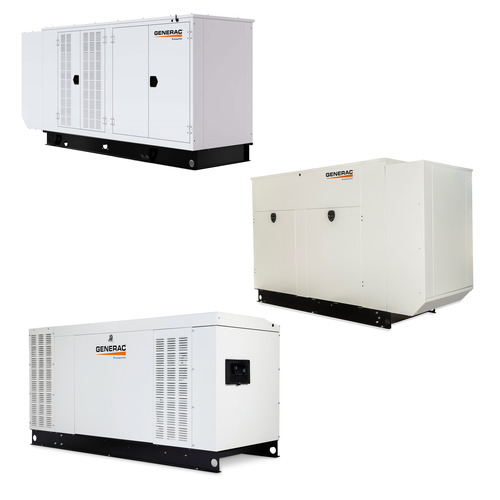

Generac Liquid-Cooled Protector Series Generators (UL, CUL, EPA Compliant) - (5 Options Available)

• RG06045C: 60kW
• RG08045C: 80kW
• RG10090C: 100kW
• RG13090C: 130kW
• RG15090C: 150kW

The Generac Liquid-Cooled Protector Series Generators (UL, CUL, EPA Compliant) units provide power for essential appliances and modern technologies during outages, ensuring uninterrupted comfort. They offer flexible installation, cost-effectiveness, quiet operation, and intuitive controls. Supported by 24/7 customer support at our headquarters and a nationwide network of over 6,000 dealers. Featuring a powerful liquid-cooled engine in a compact design, perfect for limited spaces. Neutral styling blends discreetly into landscaping, with clean-burning fuel options from natural gas to LP. safeguards your household's essential electrical circuits, ensuring they remain operational during power outages. It is a cost-effective automatic standby generator, providing crucial protection at approximately half the price of installing central air conditioning.

Innovative Design & Prototype Testing are key components of GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it doesn’t stop there. Total commitment to component testing, reliability testing, environmental testing, destruction and life testing, plus testing to applicable CSA, NEMA, EGSA, and other standards, allows you to choose GENERAC POWER SYSTEMS with the confidence that these systems will provide superior performance.

Test Criteria: Prototype tested, system torsional tested, NEMA MG1-22 Evaluation, Motor Starting Ability

Mobile Link™ Connectivity: : Included with 25-100 kW RG, Mobile Link Wi-Fi allows users to monitor generator status from anywhere in the world using a smartphone, tablet, or PC. Easily access information such as the current operating status and maintenance alerts. Users can connect an account to an authorized service provider for fast, friendly, and proactive service. With Mobile Link, users are taken care of before the next power outage.

Solid-State, Frequency Compensated Voltage Regulation: This state-of-the-art power maximizing regulation system is standard on all Generac models. It provides optimized FAST RESPONSE to changing load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torquematching the surge loads to the engine. Digital voltage regulation at ±1%.

Single Source Service Response: From Generac’s extensive service network provides parts and service know-how for the entire unit, from the engine to the smallest electronic component.

Generac Transfer Switches: Long life and reliability are synonymous with GENERAC POWER SYSTEMS. One reason for this confidence is the GENERAC product line is offered with its own transfer systems and controls for total system compatibility.

• Isochronous Electronic Governor
• Sound Attenuated Enclosure
• Closed Coolant Recovery System
• Smart Battery Charger
• UV / Ozone Resistant Hoses
• Natural Gas or LP Operation
• 5 Year Limited Warranty
• UL 2200 Listed

• Generator Specifications:
  • Type: Synchronous
  • Rotor Insulation Class: H
  • Stator Insulation Class H
  • Telephone Interference Factor (TIF): <50
  • Alternator Output Leads 1-Phase: 4 wire
  • Bearings: Sealed Ball
  • Coupling: Flexible Disc


• Governor Specifications:
  • Type: Electronic
  • Sensing: Isochronous


• Electrical System:
  • System Voltage: 12 Volts


• Generator Features:
  • Revolving field heavy duty generator
  • Directly connected to the engine
  • Class H insulation is NEMA rated
  • All models fully prototyped tested


• Enclosure Features:
  • Aluminum weather protective enclosure: Ensures protection against mother nature. Electrostatically applied textured epoxy paint for added durability.
  • Enclosed critical grade muffler: Quiet, critical grade muffler is mounted inside the unit to prevent injuries.
  • Small, compact, attractive: Makes for an easy, eye appealing installation.
  • SAE: Sound attenuated enclosure ensures quiet operation


• Engine Specifications:
  • Make: Generac
  • Lifter Type: Hydraulic


• Engine Lubrication System
  • Oil Pump Type: Gear
  • Oil Filter Type: Full Flow Spin-On Cartridge


• Engine Cooling System
  • Water Pump: Belt driven
  • Fan Diameter (in / mm): 22 / 559
  • Fan Mode: Pusher


• Fuel System
  • Fuel Type: Natural gas
  • Fuel Shut Off Solenoid: Standard


  (All ratings in accordance with BS5514, ISO3046, ISO8528, SAE J1349, and DIN6271).

• Engine Parameter:
  • Rated Synchronous rpm: 1,800


• Power Adjustment for Ambient Conditions:
  • Temperature Deration: 25°C (77°F) before derate; 3% for every 10°C above 25°C (1.65% for every 10°F above 77°F)
