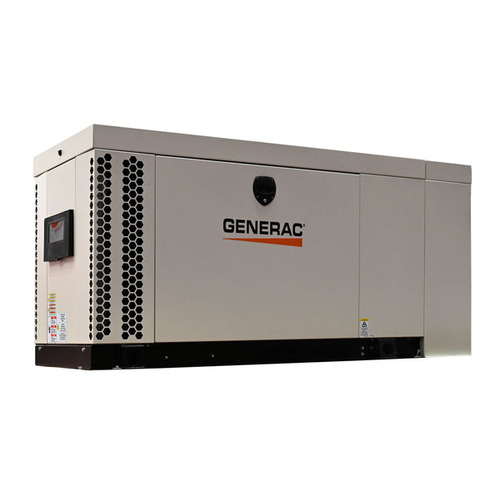

Generac Protector RA Series Automatic Standby Diesel Generators - (4 Options Available)

• RA01522: 15kW - D2.2L G22
• RA01522L: 15kW - D2.2L G22 (Extended Tank)
• RA02022: 20kW - D2.2L G22
• RA02022L: 20kW - D2.2L G22 (Extended Tank)

The Generac Protector RA Series Automatic Standby Diesel Generators units enhance residential and light commercial backup power solutions. Unlike previous models that required costly custom configurations to meet varying local codes, the Protector Series offers a range of preconfigured options and code-compliant accessories. This versatile and cost-effective solution meets UL standards, making it a practical choice for backup power needs.

Generac’s new Protector® Series diesel generators set a new standard for residential and light commercial use. With building and zoning codes varying significantly across regions, custom solutions used to be the only option, often at a high cost.

Now, the Protector Series offers Code Ready features, including a selection of popular preconfigured options and a variety of code-compliant accessories, ensuring your generator meets local regulations. This series is versatile, adaptable, meets UL standards, and provides a cost-effective solution for your backup power requirements

Evolution™ Controller: Introducing the latest in user-friendly controllers, equipped with a dual-line LCD screen that supports multiple languages and illuminated buttons in distinct colors.

Quiet-Test™ mode: Standby generators typically perform a weekly test to verify proper operation. With Quiet-Test, the Protector Series standby generator conducts its self-test at a reduced, quieter RPM compared to normal operation.

Mobile Link™ Connectivity: Stay in control of your generator from anywhere in the world with our advanced Mobile Link™ connectivity. Whether you’re using a smartphone, tablet, or PC, you can effortlessly monitor the status of your generator in real-time. Access vital information, including current operating status and the generator’s maintenance schedule, all at your fingertips.

Mobile Link™ comes standard with Protector Series 22 - 100 kW gaseous models and diesel (RD) models. The Wi-Fi device is standard on every Protector series generator except for the RG13090/RG15090 and the 130 - 150 kW gaseous models.

5-Year Limited Warranty: We take great pride in our cutting-edge product design, superior quality, and exceptional reliability, which is why we back them with a robust 5-year limited warranty.

Code Ready: The Protector Series is designed to be versatile across different settings, featuring an external vent and fill, a double-walled base tank that meets UL/CUL 142 standards, a generator that complies with UL/CUL 2200 listings, and a comprehensive selection of code-compliant accessories.

• Engine/Alternator RPM: 1800/1800
• Engine: In-line 4-Cyl.
• Quiet-Test Mode: Yes
• db(A) at Exercise: 65
• db(A) Normal Operating Load: 70
• NFPA 110 Compliant: With proper accessories and installation
• Automatic Transfer Switch: Not Included
• Enclosure: Aluminum
• Enclosure Color: Bisque
• Warranty: 5 Year Limited
• Dimension Standard Tank (L” x W” x H”): 81 x 31 x 53
• Dimension Long Run Tank (L” x W” x H”): 81 x 31 x 66
• Weight (lbs.) Standard Tank (50 gallons): 1484
• Weight (lbs.) Long Run Time Tank (100 gallons): 1689

Click Here for Spec Sheet*
*Spec sheet might include optional accessories not included with this purchase
