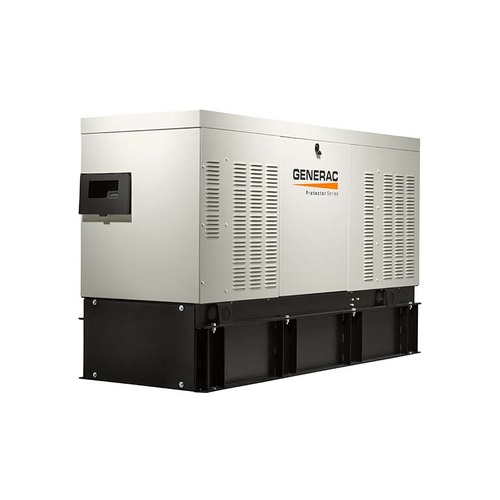

Generac Protector RD Series 15/20/30 kW Automatic Standby Diesel Generators - (4 Options Available)

• RD01525: 15kW
• RD01525L: 15kW (Extended Tank)
• RD02025: 20kW
• RD02025L: 20kW (Extended Tank)

The Generac Protector RD Series 15/20 kW Automatic Standby Diesel Generators offers modern conveniences like heating, central air, refrigeration, and communication rely on a steady power supply. When power is interrupted, both personal and business activities can be abruptly disrupted. An automatic standby generator protects against power outages by quickly restoring electricity within seconds, providing you with peace of mind and a reliable power source.

Generac’s new Protector® Series diesel generators set a new residential and light commercial use standard. With building and zoning codes varying significantly across regions, custom solutions used to be the only option, often at a high cost.

Now, the Protector Series offers Code Ready features, including a selection of popular preconfigured options and a variety of code-compliant accessories, ensuring your generator meets local regulations. This series is versatile, adaptable, meets UL standards, and provides a cost-effective solution for your backup power requirements

Innovative Design & Prototype Testing are key components of GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it doesn’t stop there. Total commitment to component testing, reliability testing, environmental testing, destruction and life testing, plus testing to applicable CSA, NEMA, EGSA, and other standards, allows you to choose GENERAC POWER SYSTEMS with the confidence that these systems will provide superior performance.

Test Criteria: Prototype tested, system torsional tested, NEMA MG1-22 Evaluation, Motor Starting Ability

True Power™ Electrical Technology: Superior harmonics and sine wave form produce less than 5% Total Harmonic Distortion for utility quality power. This allows confident operation of sensitive electronic equipment and micro-chip based appliances, such as variable speed HVAC systems.

Mobile Link™ Connectivity: FREE with all Protector Series Home standby generators, Mobile Link Wi-Fi allows users to monitor generator status from anywhere in the world using a smartphone, tablet, or PC. Easily access information such as the current operating status and maintenance alerts. Users can connect an account to an authorized service dealer for fast, friendly, and proactive service. With Mobile Link, users are taken care of before the next power outage.

Solid-State, Frequency Compensated Voltage Regulation: This state-of-the-art power maximizing regulation system is standard on all Generac models. It provides optimized FAST RESPONSE to changing load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torque matching the surge loads to the engine. Digital voltage regulation at ±1%.

Single Source Service Response: From Generac’s extensive service network provides parts and service know-how for the entire unit, from the engine to the smallest electronic component.

Generac Transfer Switches: Long life and reliability are synonymous with GENERAC POWER SYSTEMS. One reason for this confidence is the GENERAC product line is offered with its own transfer systems and controls for total system compatibility.

• Ease of installation and service: External viewing window for easy inspection of generator status and breaker position / Removable doors for easy service and fuel fill access
• Isochronous Governor – electronic governor control for tight and precise load response and voltage (+/- 1%) and frequency regulation
• Available in single- and three-phase configurations

• Two-Line LCD Multilingual Digital Evolution™ Controller (English / Spanish / French / Portuguese) with external viewing window for easy indication of generator status and breaker position.
• Isochronous Electronic Governor
• Sound Attenuated Enclosure
• Smart battery charger
• UV/Ozone Resistant Hoses
• ±1% Voltage Regulation
• Integrated base tank options are available with run time over 90 hours without having to refuel
• Five year limited warranty
• UL 2200 / UL142 / ULC S601 Listed
• Meets code requirements for external vent and fill


Meets EPA Emission Regulations and CA/MA Emission Compliant

*Time calculated at one-half maximum kW output.

• Generator Specifications
  • Type: Synchronous
  • Rotor Insulation Class: H (15 & 20 kW)
  • Stator Insulation Class: H
  • Telephone Interference Factor (TIF): <50
  • Alternator Output Leads 1-Phase: Three wire
  • Alternator Output Leads 3-Phase: Six wire
  • Bearings: Single Sealed Cartridge
  • Coupling: Direct, Flexible Disc
  • Excitation System: Direct
  • Total Harmonic Distortion: < 5%


• Voltage Regulation
  • Type: Electronic
  • Sensing: Single-phase
  • Regulation: ± 1%
  • Features: Adjustable voltage & gain


• Governor Specifications
  • Type: Electronic isochronous
  • Steady State Regulation: ± 0.25%


• Electrical System
  • Battery Charge Alternator: 50 amp (15 & 20 kW)
  • Static Battery Charger: 2 amp
  • Recommended Battery (battery not included): Group 27F, 700 CCA
  • Group 31, 925 CCA batteries can also be used with 30kW units
  • System Voltage: 12 volts


• Alternator Specifications
  • Revolving field heavy duty generator
  • Directly connected to the engine
  • Operating temperature rise 120 °C above a 40 °C ambient
  • Class H insulation is NEMA rated
  • Class F insulation is NEMA rated All models fully prototype tested


• Enclosure Features
  • Aluminum weather protective enclosure: Protects mother nature. Electrostatically applied textured epoxy paint for added durability.
  • Enclosed critical grade muffler: Quiet, critical grade muffler is mounted inside the unit to prevent injuries and maximize sound dampening.
  • Small, compact, attractive: Makes for an easy, eye appealing installation.
  • SAE: Sound attenuated enclosure ensures quiet operation.

• Engine Cooling
  • Maximum operation air temperature on radiator (°F/ °C): 122 / 50
  • Maximum ambient temperature (°F/ °C): 122 / 50


• Sound Emissions:
  • Sound output in dB(A) at 23 ft (7 m) with generator in exercise mode*: 65
  • Sound output in dB(A) at 23 ft (7 m) with generator operating at normal load*: 70


• Engine Parameters:
  • Rated Synchronous Rpm: 1800


• Power Adjustment for Ambient Conditions:
  • Temperature Deration: 3% for every 5 °C above 25 °C or 1.7% for every 5 °F above 77 °F


• Controller Features:
  • Two-line multilingual LCD Display: Simple user interface for ease of operation
  • Mode:
    • AUTO: Automatic Start on Utility failure. Programmable 7-day exerciser
    • OFF: Stops unit. Power is removed. Control and charger still operate
    • MANUAL: Start with starter control, unit stays on. If utility fails, transfer to load takes place.
  • Ready to Run/Maintenance Message: Standard Engine Run Hours Indication Standard
  • Programmable start delay between 2-1500 seconds: Standard (programmable by dealer only)
  • Utility Voltage Loss/Return to Utility Adjustable: From 140-171 V/190-216 V
  • Future Set Capable Exerciser/Exercise Set Error Warning: Standard
  • Run/Alarm/Maintenance Logs: 50 Events Each
  • Engine Start Sequence: Cyclic cranking: 16 sec on, 7 rest (90 sec maximum duration)
  • Starter Lock-out: Starter cannot re-engage until 5 seconds after engine has stopped
  • Smart Battery Charger: Standard
  • Charger Fault/Missing AC Warning: Standard
  • Low Battery/Battery Problem Protection and Battery Condition Indication: Standard
  • Automatic Voltage Regulation with Over and Under Voltage Protection: Standard
  • Under-Frequency/Overload/Stepper Overcurrent Protection: Standard
  • Safety Fused/Fuse Problem Protection: Standard
  • Automatic Low Oil Pressure: Standard
  • Overcrank/Overspeed (@ 72 Hz)/rpm Sense Loss Shutdown: Standard
  • High Engine Temperature Shutdown: Standard
  • Internal Fault/Incorrect Wiring Protection: Standard
  • Common External Fault Capability: Standard
  • Field Upgradeable Firmware: Standard
  • Low Coolant Level Shutdown: Standard


• Remote Monitoring
  • Ability to view generator status: Monitor the generator with a smartphone, tablet, or computer at any time via the Mobile Link application for complete peace of mind.
  • Ability to view generator Exercise / Run and Total Hours: Review the generator's complete protection profile for exercise hours and total hours.
  • Ability to view generator maintenance information: Provides maintenance information for the specific model generator when scheduled maintenance is due.
  • Monthly report with previous month’s activity: Detailed monthly reports provide historical generator information.
  • Ability to view generator battery information: Built in battery diagnostics displaying current state of the battery.
  • Weather information: Provides detailed local ambient weather conditions for generator location.
