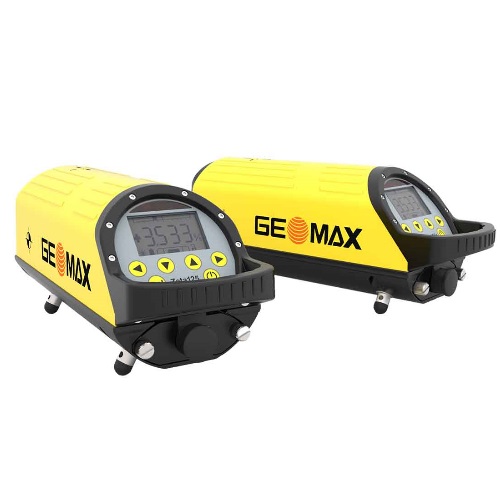

GeoMax Zeta 125 Pipe Laser - Standard Target Package

Model Number: 6010624

The GeoMax Zeta125 Series Pipe Laser provides ±10 arc second accuracy which boasts great functionality and versatile configuration, ideal for control and implementation of gradients and drainage systems. It offers maximum productivity with its fast self-leveling laser that can reach up to 900 feet and inclination of -15% to +45%.

Features:

Range up to 900 feet
±10 arc second accuracy
Self-leveling ranging from -15% to +45%
Grade range -10% to +40%
Includes remote control
Fits in 5-inch diameter pipes
Large LCD display with back-light
Li-Ion battery pack with charger
5/8-11 tripod thread
1-year manufacturer's warranty

Technical Specifications:

Accuracy:±1/16 inch at 100 ft (± 1.5 mm/30 m), 10 arc seconds
Self-Leveling Range: -15% to +45%
Protection Class: IP68
Weight: 4.5 lbs. (2.07 kg)
Dimensions: 12"L x 4.1"W x 4.4"H
Operating Temperature: 122°F to -4°F (+50°C to -20°C)
Tripod Thread: 5/8" x 11
Diameter: 5 inches
Cross Axis Leveling:6 degrees
Laser Color: Red
Laser Rotation Speed: 1250 rpm
Type/Wavelength: Class 3R
Grade Entry: Digit select
Display: Percent
Azimuth Range: 20 ft at 100 ft (6 m to 30 m)
Range: +40% to -10%
Rechargeable Battery/Life:40 hours
Power Cord: 12V
Thread Mount: 5/8 x 11
Remote Control Operating Range: 600 ft. front through the pipe; 25 ft. from rear
Remote Control takes 3 AA alkaline
Display: LCD display
Auto Targeting: Yes
Rotating Laser: Yes
