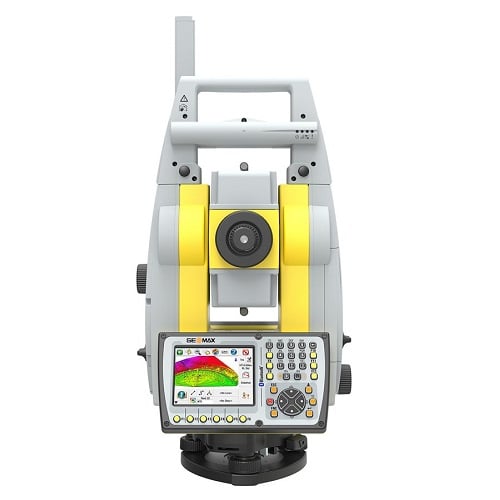

GeoMax Zoom90 Series Robotic Total Station Package

Model Number: 6010320

Features:

Zoom90R, A5, 5" Package
Dramatically minimize the time of any survey task and boost your performance and accuracy to the maximum.
Zoom90 is the ultimate one-man system with up to 20% more automation performance, extended reflectorless measurement capability, STReAM360, accXess technologies and Windows CE open connectivity.
Scout: Scans the entire working area within seconds to quickly find the target.
TRack: Continuously track targets. Once locked onto, the instrument remains accurately aimed on the moving target.
Aims accurately at any prism, without needing to look through the telescope.
Measurements are performed automatically with consistently high and repeatable dependability.
Zoom90 incorporates highly innovative X-motion hybrid drives, promoting automation performance compared to conventional drives.It will follow your target at 90 km/h at 100 m distance.PR
GeoMax’s accXess EDM Technology provides leading reflectorless measurements up to 1000 m.
The extra small laser footprint and the sophisticated signal-processing technology, ensure you accuracy - regardless of the distance or conditions.
Fitted as standard in the telescope, the NavLight is an efficient alignment aid, helping to speed up work while setting out.
Its flashing red and yellow lights will guide you quickly and exactly to the line of sight.
Zoom90 meets all your connectivity needs.
Use its built-in Bluetooth® for medium range data transfer or its Bluetooth® handle for high performance long range Bluetooth®.
Store data on Zoom90’s extra large internal memory, on the removable SD card or the USB stick using plug and play technology.
GeoMax instruments are built to withstand the toughest conditions.
The Zoom90 has been designed and tested to be dust-proof and fully protected against water jets.
Combine your preferred software and data logger to perform remote control tasks with increased productivity.
Zoom90 uses the Windows CE operating system, which enables a variety of powerful field software to be run, offering you freedom to choose software that best suits your needs.
Full VGA colour-touch display will also provide you with superior performance and full graphic capability. 50°c-20°cPR

Specifications:

Scout: Yes
TRack: Yes
AiM: Yes
Angle Measurements:
Accuracy: 1” (0.3 mgon), 2” (0.6 mgon), 5” (1.5 mgon)
Display Resolution: 0.1” (0.1 mgon)
Method: Absolute, continuous, diametrical
Compensation: Quadruple axis
Telescope:
Magnification: 30x
Distance Measurements - Prism:
Range Accuracy Time: Standard mode: 3500 m / 1 mm + 1.5 ppm / typ. 0.8 sec* and Long mode: >10,000 m / 5 mm+2 ppm / typ. 2.5 sec
Distance Measurements - Reflectorless:
Range Accuracy Time: accXess5/ accXess10 500 m / 1000 m2 mm + 2 ppm**typ. 3 sec
Precise Capture: 8x20 mm at 50 m
Motorization:
Technology: Hybrid Drives
Scout (Range): 300 m at round prism
Track: 800 m at around prism (Range), 90 km / h at 100 m (Max Speed)
AiM: 1000 m at round prism (Range), 1" (Hz/V), Image Processing (Technique)
NavLight ™:
Range: 5 m at 150 m
Accuracy: 5 cm at 150 m
Interface:
Keyboard: Two full alphanumeric; 35 keys; illuminated (2nd optional)
Display: Full VGA 640 x 480 colour and touch with LED backlight
Data recording: 1 GB internal memory; removable SD card and USB stick
Ports: Serial; USB; internal Bluetooth; long-range Bluetooth handle and external power
Operating System: Microsoft Windows CE 6.0
Physical Specifications:
Weight: 5.0 - 5.3 kg(w/o battery and tribrach)
Operating/Storage Temperature: -20°C to 50°C / -40°C to +70°C
Protection Class: IP55 dust and waterproof rating
Humidity: 95%, non-condensing
Power Supply:
Internal Battery: Removable Li-Ion 4.4 Ah/7.4 V
Operating Time: 7-10 h***
Plummet:
Type: Laser point, adjustable brightness
Accuracy: 1.5 mm at 1.5 m instrument height

Zoom90R, A5, 5" Robotic Total Station Package (LRBT)

Zoom90 R Fully Robotic WinCE Total Station with AiM360, TRack360 and Scout360, 5", accXXess5 EDM, NavLight, Alphanumeric Keyboard with VGA Color & Touch Display, Long Range Bluetooth Handle Interface, Internal Bluetooth, USB Port, SD Card Slot, Quick Guide and Carrying Case
Zoom90 CD
ZBA400, Li-Ion Battery 4.4Ah, rechargeable
ZCH201, Charger for ZBA201 & ZBA400
ZDC301 USB cable
ZTR101, Tribrach without optical plummet (black)
ZRT82, Long-range Bluetooth handle
ZSD01 Industrial Grade SD Card, 1GB
ZPR1 360° Prism (Constants - GeoMax +23.1; Absolute -11.3)

MPN: 6010320
