Palmgren 6" Dual Force Double Station Vise - 9625936

Product Code: ET15726

Condition: New

Your Price	$2,343.24
	(You Save 31%)

List Price

$3,396.00

Qty

Accepted Payment Types

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

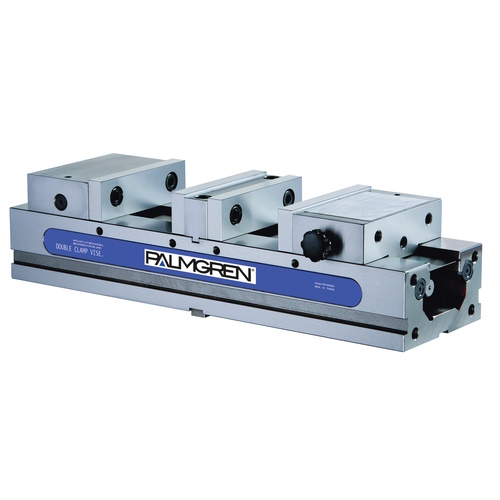

Palmgren 6" Dual Force Double Station Vise

Model Number: 9625936

Features:

The Palmgren 6" Dual Force Double Station Vise 9625936 offers cost saving productivity by maximizing the number of parts in the machines work envelope.
It allows for multiple part workholding for better spindle utilization, reduced tool change time and reduced machine travel from part to part.

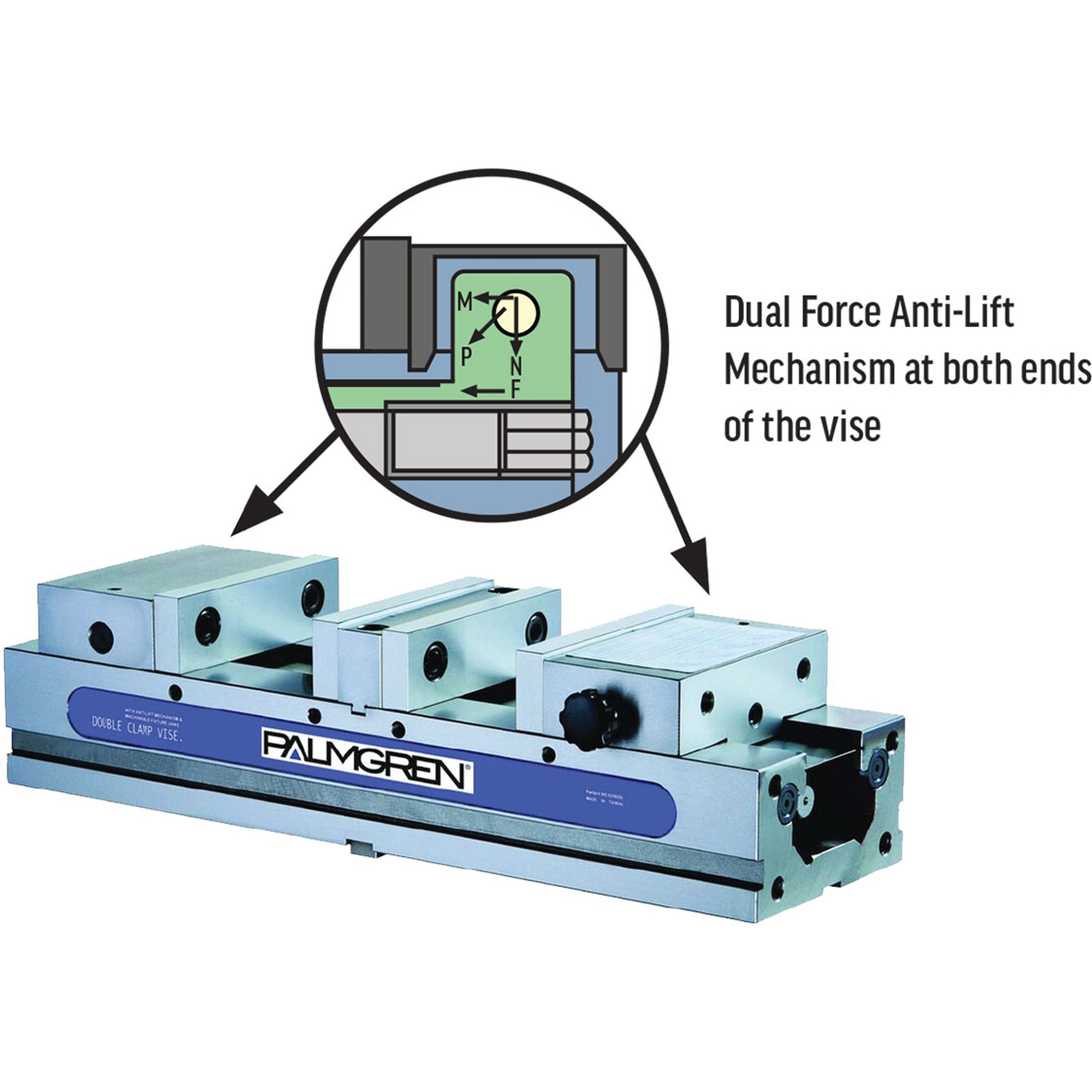

Featuring a patented auto memory mechanism, the two jaws are set to the proper position for two workpieces and can maintain their set position every time the vise is opened or closed, allowing for quick loading and unloading.
1/2 pound of downward force for every pound of horizontal force on both moveable jaws
80,000 PSI ductile iron casting deliver the strength, rigidity and long term accuracy required while absorbing machine vibration
Can be mounted horizontally or vertically
One handle operates the two moveable jaws
Unit can clamp two of the same size parts or different size parts
Clamping force equalization—the same force is applied to both parts whether they are the same size or not
Precision ground on all sides
Height tolerance is within ±0.0004" so several vises can be lined up parallel to each other
Repeat clamping accuracy of .0002"
Fixed center jaw has a machined keyway for accurate alignment and set up
6 different workpiece clamping applications
LIFETIME GUARANTEE
