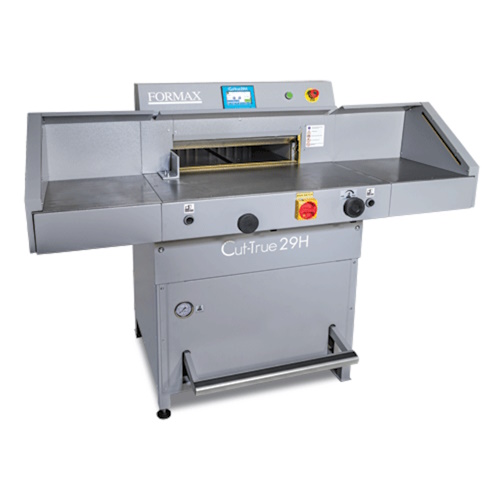

Formax Hydraulic Programmable 20" Guillotine Paper Cutter

Model Number: Cut-True 29H

Features:

The Formax Hydraulic Programmable 20" Guillotine Paper Cutter helps you tackle tasks with unmatched precision and ease, handling paper stacks up to 20.5" wide like a breeze. Ideal for print shops and demanding users, the Cut-True 29H delivers power, precision, and automation, all in one exceptional package.
Features:
- Hardened Steel Blade: Designed for accurate cuts and long life
- Hydraulically-Controlled: Adjustable hydraulics control paper clamp and blade carrier
- False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use
- Touchscreen Control Panel: Easily set, adjust and program jobs
- LED Cutting Line: Bright red LED line indicates exactly where the blade will cut
- Solid Steel Blade Carrier
- Fine-Tuning Knob: Allows users to precisely adjust the back gauge position
- Hydraulic Pressure Gauge: Liquid-filled display shows pressure and allows for easy adjustment
- Low-Friction Work Table: Makes it easy for operators to move and position large paper stacks
- Internal Light: Illuminates the cutting area
Operating Features:
- Cutting Capacity: Paper stacks up to 3.15" high, up to 20.5" wide
- Automatic Blade Return from Any Position
- Programmable Jobs: Up to 100 jobs/100 steps
- Foot Pedal Pre-Clamp: Holds paper stack in position to check alignment prior to cutting
Safety Features:
- Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted
- Two-Hand Operation: Electronically controlled for added safety
- Easy Blade Change from Front of Cutter: Blade change safety tool included
- Wooden Paper Push Tool: Helps to quickly and safely align the paper stack
- Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators
- Transparent Rear Safety Guard
Options:
- Wide Side Tables (Pair): Provide additional space to maneuver larger paper stock
Supplies:
- 29-10: Replacement Blade
- 29-20: Replacement Cutting Sticks, pkg of 8

Specifications:

Cutting Action: Dual-button hydraulic
Maximum Cutting Width: 20.5" (520mm)
Maximum Paper Stack Height: 3.15" (80mm)
Programmable Jobs: Up to 100 programs with up to 100 steps each
Touchscreen Features: Program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
Length Behind Blade: 20.5" (520mm)
Length in Front of Blade: 18.25" (464mm)
Minimum Cut w/False Clamp: 2.36" (60mm)
Minimum Cut w/o False Clamp: 1.18" (30mm)
Table Size:
- 30.75" W x 15.75" D ( 781 x 400mm)
- 56" W x 15.75" D (1422 x 400mm) w/optional wide side tables
Clamp Style: Automatic, hydraulic
Hydraulic Clamp Pressure: 700 - 4,500 psi (49 - 316 kg/cm2)
Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
Blade Change Safety Tool: Included
Dimensions*: 49.25" H x 31" W x 53.25" D (1250mm H x 864mm W x 1352mm D)
Dimensions w/optional side tables: 49.25" H x 61.5" W x 53.25" D (1250mm H x 1563mm W x 1352mm D)
Weight: 1,014 lbs. (460kg)
Power Supply: 220V, 60Hz, 20A dedicated line, NEMA 6-20P
