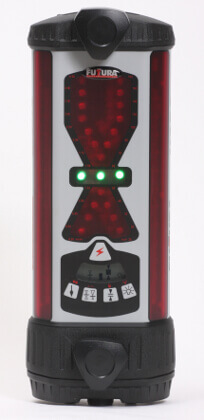

Futtura 360 Degree Machine Control Display Receiver with Angle Compensation for Excavating MCR3w

Product Code: ES5448
Condition: New
Futtura 360 Degree Machine Control Display Receiver with Angle Compensation for Excavating MCR3w ES5448
List Price $2,495.00
Your Price $2,148.99
(You Save 14%)
Free Shipping
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Free Shipping

MCRw receivers from Futtura are designed to adapt to any earth moving machine which is ideal for grading, trenching and excavating.

    Features:
  • Wireless remote capability
  • completely self-contained
  • 360° reception
  • selectable accuracy
  • waterproof design
  • heavy duty construction
  • pole mounted (magnetic mount optional)
  • low battery indicator
  • 75 minute automatic shut off
  • selectable bright / dim display
  • "ACE" patented angle compensation for excavators (MCR 3w)
  • selectable excavator offset grade display and dipper stick plumb indicator (MCR 2+ & 3)

All receivers feature The MCRw receivers work with rotating lasers. The laser provides a reference plane of laser light over the job site. The MCRw is mounted above the machine's cutting edge on grading equipment or on the dipper arm of excavation equipment. The receiver is initially set on-grade to a known desired elevation or benchmark. As the machine is used and the blade or bucket is moved, the operator is given a visual indication of which direction to move the blade or bucket to get to on-grade, effectively checking grade from the cab.

    Laser Receiver Specification:
  • Vertical reception: 220 mm (8.75")
  • Accuracy on set-up: Grading 5 mm (3/16") Excavate 6 mm (1/4")
  • Fine: Grading 10 mm (7/16") Excavate 12 mm (1/2")
  • Standard: Grading 20 mm (7/8") Excavate 25 mm (1")
  • Wide: Grading 40 mm (1 5/8") Excavate 50 mm (2")
  • ACE - Angle Compensation Mode: Fine 12 mm (1/2") Standard 25 mm (1")
  • Power Options: Alkaline - 4 x "C" cell OR Nickel Metal Hydride "C" cell Power cable - 10-30 VDC
  • Battery life Alkaline: Up to 75 hours
  • Battery life NiMH: Up to 55 hrs.
  • Dimensions (LxWxD) 13.5" x 5.6" x 5.9"
  • Weight (shipping): 5.7 kg (12.5 lbs.)
  • Mounting Pipe: 42 mm to 50 mm (1.65 to 2") O.D. round tube 38 mm (1.5") square tube
  • Operating Temp: -20° to plus 60° C - (-4° F to 140° F)
  • MPN: MCR3
