Futtura Combination Laser Receiver CR5 (3 Models Available)

Product Code: ES5197
Condition: New
Futtura Combination Laser Receiver CR5 (3 Models Available) ES5197
Your Price $519.99
  • Usually ships off dock within:1 to 2 Business Days

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

More Information

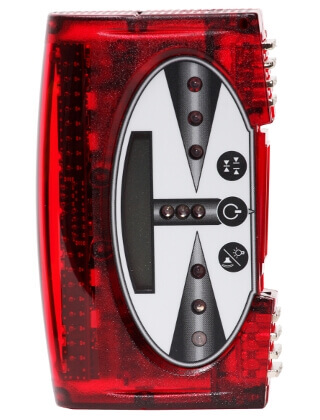

Futtura Combination Laser Level Receiver CR5 with 3 Models to Choose from: The CR5 Remote Only, CR5-RD Wired Remote Display, and the CR5-WD5 Wireless Remote Display.

The CR5 combination receiver is designed for all rotating lasers and can be hand-held, rod-mounted, or magnetically attached to your machine, making it the most versatile laser receiver in the industry, ideal for a number of applications, including General construction, Site Grading / Prep, Trenching, Footers, Septic tanks & leach fields, Sloping concrete floors, Any rotating laser application, Dozers, Skid steers, Backhoes, Excavators, Hand-held readings and Rod-mounted readings.

The CR-5 is available in 3 models:

  • CR5 - Receiver only (No Remote Display)
  • CR5-RD includes a Wired Remote Display with a cable length of 25'
  • CR5-WD5 Includes a Wireless Bluetooth Remote Display with a working range of 30M (100 Ft) for cable free flexibility and Low-Battery Indicator

Remote Display Options(CR5-RD and CR5-WD5)

Optional remote capability can improve productivity by allowing job site functions to be performed faster and more efficiently. Ideal for situations where the receiver is out of sight of the operator, such as trenchers, box blades or other machines. With the convenience of a remote display, the operator is able to view grade information from within the cab.

CR5 Features:

  • Rugged & durable 100% waterproof housing
  • Bright LED's with green on-grade
  • Strobe light rejection
  • Adjustable volume control
  • 240° angular reception
  • 5" laser capture height
  • 3 accuracy settings
  • Reception Range: 1,000' (300 m)
  • Detection Height 5.0" (127mm)
  • Beeper Volume: High 105-110db, Low 70-75db
  • Display Channels: 9
  • Marking Notch Offset: N/A
  • Battery Life: Normal 160 hrs
  • Manufacturer's Warranty: 2 years
  • Includes Rod Mount

CR5 Specifications

  • Built-in Strobe Light Rejection: Yes
  • Laser Capture Height: 5"
  • Three accuracy settings: ±1/16", ±1/4", ±1/2"
  • Operating Temperature: -20°C to 50°C(-4°F to 122°F)
  • Battery Life (2AA): 180 hours minimum
  • Auto Shut-Off: 30 minutes
  • Reception Angle: 240°
  • Out-of-level warning: Yes
  • Waterproof : 100%
  • LCD Display: 7 channel
  • Includes Carrying Case
  • MPN: N/A
  • UPC: #N/A
