GeoMax Zenith16 UHF Flex Rover Set, Multi-Constellation - 6015876

Product Code: ET13166

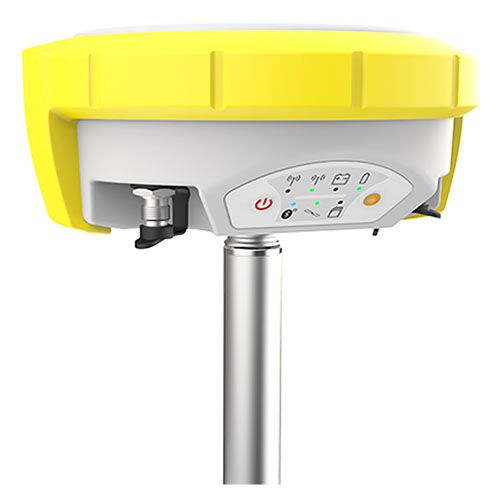

Photograph of the GeoMax Zenith16 UHF Flex Rover Set, Multi-Constellation - 6015876

Condition: New

Usually ships off dock within:2 to 4 Business Days

Your Price

$8,420.00

Qty

Accepted Payment Types

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

GeoMax Zenith16 UHF Flex Rover Set, Multi-Constellation

Model Number: 6015876

Features:

Experience increased productivity and reduced failure rates thanks to the power of Hexagon’s cutting-edge technology and the partnership with high-quality brands like SATEL and NovAtel.
Providing top-performing technology at an affordable price, the Zenith16 GNSS receiver convinces with a remarkable performance ratio.
The Zenith Manager, a stand-alone application available for Windows® and AndroidTM operating systems, enables you to configure your receiver without using the field controller.
X-PAD Ultimate’s intuitive interface allows everyone to easily perform surveying and construction tasks.
X-PAD Office Fusion allows direct integration and management of different types of data in one software.

Specifications:

Receiver Specifications:
Q-Lock ProTM Functionality: Lowest noise and advanced multipath mitigation for highest reliability
Reliability: 99.99%
Measurement Engine: NovAtel OEM7, 181 channels, dual-frequency / multi-constellation
GPS tracking: L1, L2, L2C
GLONASS tracking: L1, L2, L2C
BeiDou tracking: B1, B2 (opt)
Galileo tracking: E1, E5b (opt)
QZSS tracking: L1, L2C (opt)
Positioning rate: 5 Hz
SBAS: EGNOS, WAAS, MSAS, GAGAN
Receiver Accuracy (RMS)*:
RTK: Hz - 10 mm + 1 ppm / V - 20 mm + 1 ppm
Network RTK: Hz - 10 mm + 0.5 ppm / V - 20 mm + 0.5 ppm
Static: Hz - 5 mm + 0.5 ppm / V - 10 mm + 0.5 ppm
Static - long: Hz - 3 mm + 0.1 ppm / V - 3.5 mm + 0.4 ppm
Interfaces:
Keyboard: On/off and function key
LED status indicators: Position, battery, Bluetooth®,RTK receive, RTK transmit,data storage
LED mode indicators: Rover, base, static
Data recording: Removable microSD card
Communication:
UHF radio module: SATEL, 500mW, 1000 mW transceiver, 403 – 473 MHz; (opt)
Bluetooth®: Device class II QR-iConnect functionality
TNC connector: High sensitivity, UHF antenna
Communication port: USB, serial & power
Physical specifications:
Dimensions: Height 95 mm, ø 198 mm
Weight: 1.09 - 1.13 kg **
Operating temp.: – 40°C to 65°C
Environmental Protection: IP68 / IP66 / MIL
Humidity: 100%, condensing
Vibration: Mechanical stress resistant according to ISO 9022-36-05
Shock: Withstands 2 m drop onto hard surface
Power Supply:
Internal batteryRemovable, Li-Ion 2.6 Ah / 7.4 V
Operating time9 h in static / 6 h in rover mode
External power10.5 V to 28 V, LEMO® plug
Warranty: One (1) Year Standard Warranty, Extendable Warranty (Yes)
