GeoMax Zenith35 Pro GSM-UHF Rover Set, Multi-Constellation - 6013714

Product Code: ET13163

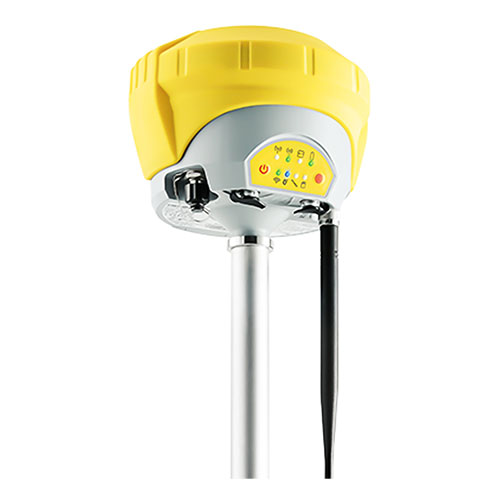

Photograph of the GeoMax Zenith35 Pro GSM-UHF Rover Set, Multi-Constellation - 6013714

Condition: New

Usually ships off dock within:2 to 4 Business Days

Your Price

$10,629.00

Qty

Accepted Payment Types

Email This Product To A Friend

View More Of This Brand

Factory Authorized Dealer

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description

More Information

Reviews

Help

GeoMax Zenith35 Pro GSM-UHF Rover Set, Multi-Constellation

Model Number: 6013714

Features:

Full spectrum of satellite signals, full connectivity and the unique Tilt and Go functionality all in a compact GNSS make the Zenith35 Pro series the GNSS that works when you do.
With a max number of channels, all satellite systems and frequencies are supported with NovAtel technology.
Work how you want with selectable RTK modes.
Reach and measure hidden points with a tilted pole, and check and track pole verticality with the precise electronic bubble.
Zenith35 Pro is easy to take anywhere.
Move to any point needed.
With a IP68 certification, the Zenith35 Pro is water and dustproof.
The receiver is also protected against shock.
Bluetooth and WiFi connection
Access from any device connected to the internet, independent of your location
USB port for data transfer
Serial port for data output
Powerful UHF for base-rover setups
3.75 G GSM for NTRIP connections
Connect up to 10 rovers simultaneously via GSM with Zenith35 Pro DynDNS technology

Specifications:

Receiver Specifications:
AdVance technologyHigh fix availability + reliability
Channels: 555, multi-frequency
GPS tracking: L1, L2, L2C, L5
GLONASS tracking: L1, L2, L3*
BeiDou tracking: B1, B2, B3**
Galileo tracking: E1, E5a, E5b, AltBOC, E6**
Positioning rate5Hz, 20Hz (opt)
SBASEGNOS, WAAS, MSAS, GAGAN, QZSS***
Receiver accuracy****:
RTK: Hz - 8 mm ± 1 ppm (rms) / V - 15 mm ± 1 ppm (rms)
Network RTK: Hz - 8 mm ± 0.5 ppm (rms) / V - 15 mm ± 0.5 ppm (rms)
Static: Hz - 3 mm ± 0.5 ppm (rms) / V - 5 mm ± 0.5 ppm (rms)
Static long: H - z3 mm + 0.1 ppm (rms) / V - 3.5 mm + 0.4 ppm (rms)
Interfaces:
Keyboard: On/off and function key
LED status indicators: Position, battery, Bluetooth, Wi-Fi, RTK receive, RTK transmit, data storage
LED mode indicators: Rover, base, static
Data recording: Dual; microSD card and8 GB internal memory
GSM/TCP/IP: Removable SIM card
Quality mode:
RTK modes: Selectable; ExtraSafe, Standard
Tilt and Go modes: Selectable; Single/Dual
Communication
GSM/GPRS module: Quad-Band GSM & Penta-Band UMTS 800 / 850 / 900 / 1900 /2100 MHz
UHF radio module: 500mW, 1000 mW transceiver, 403 – 473 MHz
Bluetooth: Device class II
Wi-Fi: 802.11 b/g/n
TNC connector: UHF antenna, UMTS/GSM antenna
Communication: port USB, serial & power
Physical specifications: Dimensions Height 131 mm, ø 161 mm
Weight: 1.17 kg without battery
Operating temp.: – 40°C to 65°C
Protection class: IP68 dust and waterproof
Humidity: 100%, condensing
Vibration: ASAE EP455 Section 5.15.1 Random, MIL-STD-810G,method 514.6E-I
Shock: Withstands 2 m drop onto hard surface
Power supply:
Internal battery: Removable, Li-Ion 3.4 Ah / 11.1 V
Operating time: 8 h in static / 6 h in rover mode
External power: 9 V to 18 V, LEMO plug
Warranty: One (1) Year Standard Warranty, Extendable Warranty (Yes)

MPN: 6013714
UPC:
