Stabila - LA 180L Layout Station w/ Auto Alignment Set (02180)

Product Code: ET14110
Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)

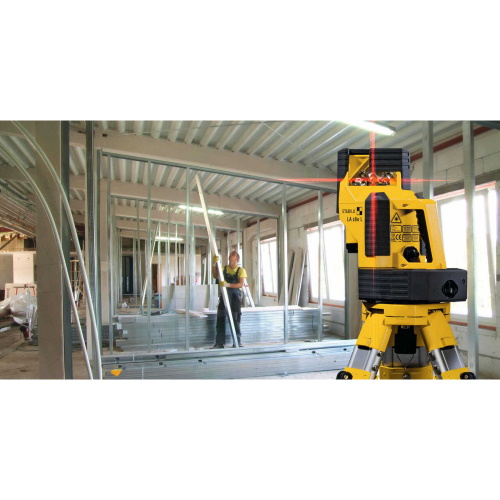

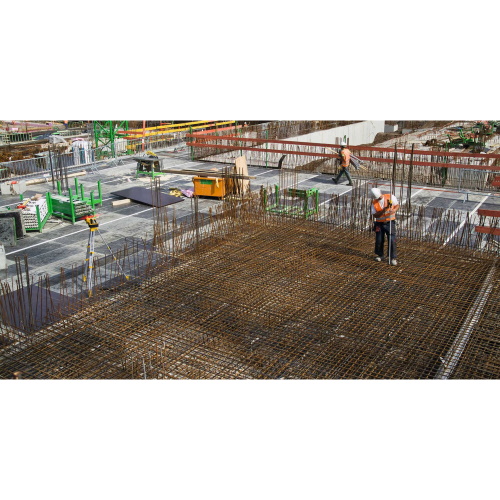

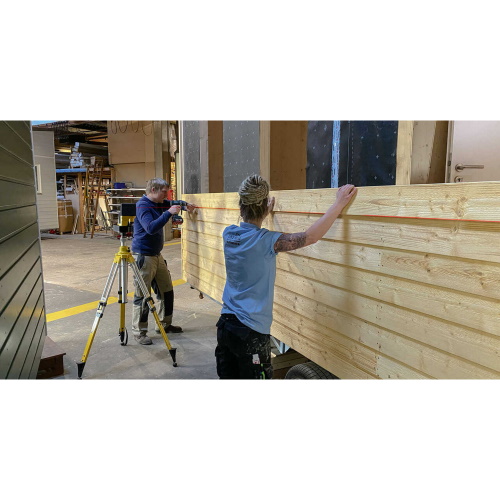

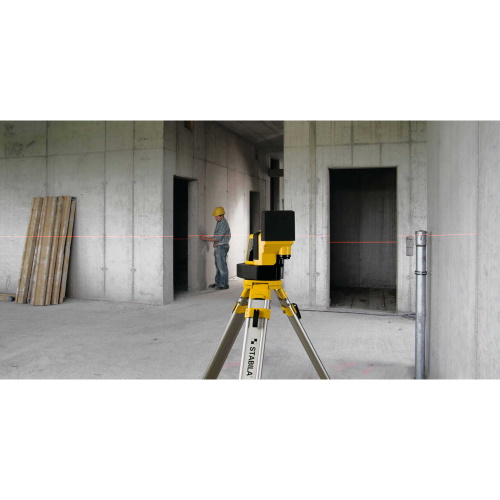

Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Stabila LA 180L Layout Station w/ Auto Alignment Set (02180) Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180) Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180) Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180) Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180) Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180) Photograph of Stabila LA 180L Layout Station w/ Auto Alignment Set (02180)
Condition: New
  • Usually ships off dock within:2 to 4 Business Days
Your Price $2,050.00

Accepted Payment Types

Free Shipping

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

Description
More Information
Reviews
Help




Free Shipping


Stabila LA 180L Layout Station w/ Auto Alignment Set

Model Number: 02180

Features:
  • The Stabila LA 180L Layout Station w/ Auto Alignment Set has a functional housing shape that allows positioning in room corners and over edges, and features auto alignment: fully automatic transfer of axes and creation of right angles that allows layouts greater than 20 ft up to 300 ft.
  • Self-leveling multi-line laser for precision layout.
  • AUTO ALIGNMENT function: Receiver automatically controls the positioning of the laser at distances of up to 150ft – fully automatic axis transfer and creation of right angles on floors, walls and ceilings, all at the same time. Precise alignment without losing the reference point.
  • Pulsed laser lines for precise measurements with the receiver (up to 300ft) indoors and outdoors.

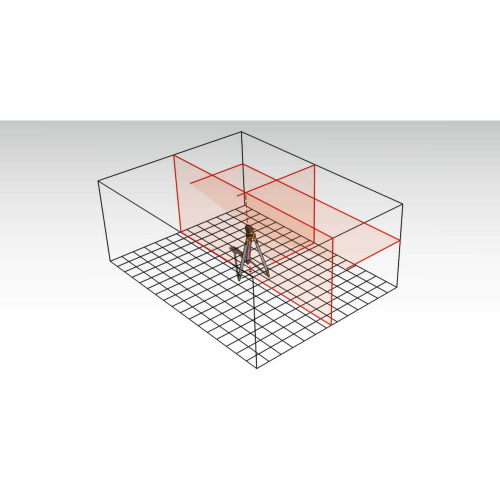

  • Versatile: 3 vertical lines, 1 horizontal line and plumb-line function.
  • Extra sharp, easy-to-see lines for fast and efficient work directly on the laser line – visible range up to 100ft indoors.
  • Unique housing shape for positioning in room corners and over edges (e.g. concrete slab) – rapid checking of right angles.
  • 5/8-11 tripod mount.
  • Includes: Laser, receiver with bracket, laser enhancement glasses, magnetic red target cards/plates, batteries, hard shell case.
  • Optional: Rechargeable battery pack, brackets for using the laser with batter boards and forms.
    • Specifications:
    • Quantity: 1
    • Laser class: 2
    • Output: < 1 mW
    • Laser wavelength: 635 nm
    • Self-leveling range +/-: 5°
    • Leveling accuracy +/-: 3/32 in @ 100 ft
    • Line straightness +/-: 1/8 in @ 100 ft
    • Laser beam accuracy (down) +/-: 3/32 in @ 100 ft
    • Measuring range of set receiver: 328 ft
    • Measuring range of visible point: 65 ft
    • Measuring range of visible line: 65 ft
    • Operating life: 20 h
    • Protection class: IP 54
    • Tripod connection: 5/8"-11
    • MPN: 2180
    • UPC: 089634021803
