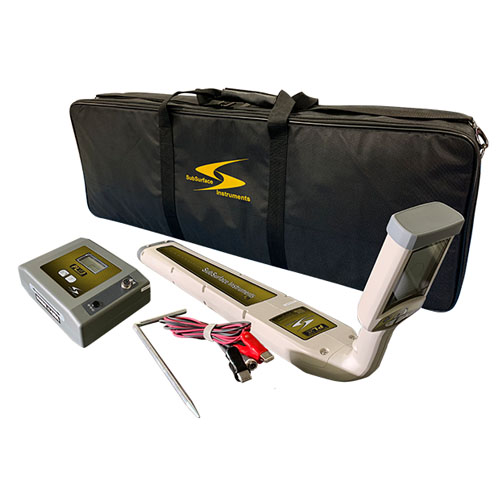

SubSurface Instruments Pipe and Cable Locator

Model Number: PL-VF3

The PL-VF3 Locating System is adaptable; frequencies and operational modes may be added or deleted on demand to suit the user’s locating needs.

Features:

Three button keypad simplifies the user interface
8 Locating Modes: the multi-channel processor allows for simultaneous field detection from a multiple antenna array ensuring accuracy
Transmits 2 frequencies at the same time
Customizable frequencies and operational modes
Automatic Impedance Matching Technology: maximizes your transmission range while minimizing power consumption
Remotely controls your transmitter from the receiver to more than 400 meters (437 yards)
High-Contrast LCD Interface with Backlight: guides the operator to the target location by providing all relevant data including continuous depth, current measurement, signal strength, and directional arrows
Constant Depth & Current Measurement: real-time updates online depth and signal condition
Made in the USA

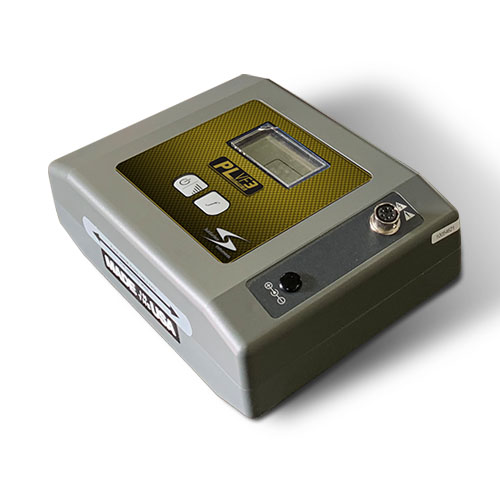

Transmitter Specifications:

Available Operating Frequencies: Range from 12Hz to 200kHz
Indicators:

AC load assistance measurement
Relative ohms
Voltage
Live voltage output
Current output
Power level
Frequency
Mode
Battery indication alert
Low battery indicator audio/visual with modulated low battery warning transmitted to the receiver

Load Matching: Automatic from 5 Ω to 25,000 Ω
Output Power: 3 power settings Low & Medium Frequency Range: 0.2w to 3w High
Power Source: (8) “C” cell batteries
Battery Life: Continuous: 8-15 hours (Dependant on load, frequency, power setting)
Operating Temperature: -4° F to 133° F (-20° C to 55° C)
Ingress Protection Rating: IP65
Dimensions: 8.5” x 5.8” x 2.5” (21 cm x 15 cm x 6 cm)
Weight: C-cell: 2.2 lbs (1 kg) with batteries
Country of Origin: United States of America
1-Year Manufacturer's Warranty. 48 Month (4 Years) Warranty when registered at http://www.ssilocators.com/warranty-registration within 1 month of the date of purchase.

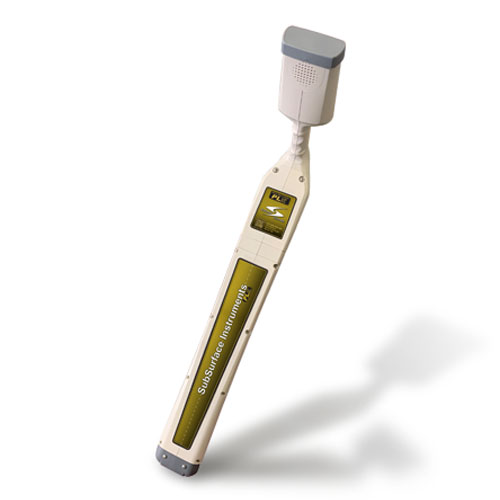

Receiver Specifications:

Operating Frequencies: 480kHz, 200kHz, 131kHz, 82.315kHz, 65.536kHz, 32.768kHz, 8.192kHz, 4.010kHz, 815Hz, 797Hz, 640Hz & 512Hz
Sonde: 640Hz, 512Hz, 815Hz, 8.192 kHz & 32.768kHz
Passive Power Modes: 50env & 60env, LiveSound TM; Radio Frequency; Rectified CP 50Hz & Rectified CP 60Hz
Antenna Mode:

Simultaneous peak/null (dual horizontal antennas & vertical antenna)
Pin-point peak (dual horizontal antennas)
Directional guidance
Peak (single horizontal antenna)
Null (single vertical antenna)

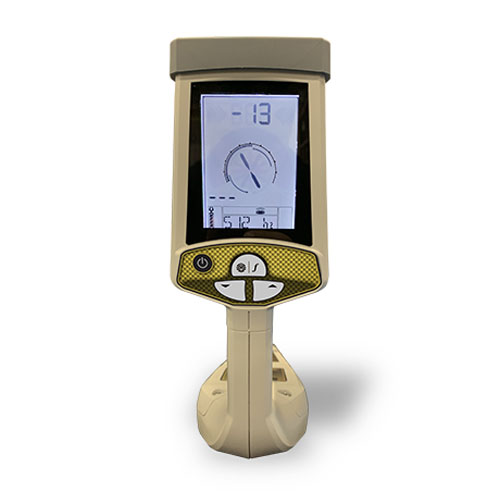

Display:

Indicators back-lit segmented LCD bar graph
Battery condition
Continuous mode signal strength
Depth measurement
Line orientation
Left/right line guidance
Operating mode
Volume level & function indicators
Audio Indication Variable pitch & Live Sound. 4 volume selections including mute. Current measurement display indicates the relative current

Power Source: (6) "C" Alkaline batteries
Battery Life: Continuous 30h. - Intermittent 82h.
Signal Strength: LCD bar graph, absolute signal strength 0-999
Gain Control: Left/ Right Guidance Mode: Automatic
All other locate modes: Manual gain adjustment & automatic centering
Dynamic Range: 126 dB
Depth Measurement: 3 digit LCD readout of push-button measurement (1 inch - 30 feet) (.02m-10.6m) with accuracy > 5% of depth. (Digital measurement)
Operating Temperature: -4ºF to +133ºF (-20ºC to +55ºC)
Ingress Protection Rating: IP65
Dimensions: 30.3” x 9.4” (77cm x 24cm)
Weight: 4.2 lbs (1.9 kg)
