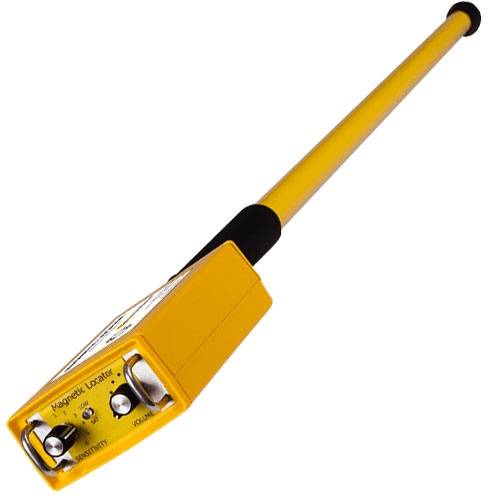

Dunham & Morrow Magnetic Locator DML2000-XR with Soft Case

Product Code: ES934
Condition: New
Dunham & Morrow Magnetic Locator DML2000-XR with Soft Case DML2000-XR -SC
Dunham & Morrow Magnetic Locator DML2000-XR with Soft Case DML2000-XR -SC
5 Stars Average Rating | Write a review
List Price $675.00
Your Price $489.99
(You Save 27%)
  • Usually ships off dock within:Same Day

Shop With Confidence

Safe & Secure Shopping

In Business Since 1999

Quick Checkout

BBB A+ Rating

Easy Returns

More Information

Made in the USAIn side-by-side comparison tests with other magnetic locators the DML2000-XR outperformed all the competition. The state-of-the-art, DML2000-XR Magnetic Locator packs all of its sophisticated electronics in an incredibly light 1.6-lb package. Experienced MAG users will appreciate the LOW battery indicator; no more wondering if the batteries are low and you're missing targets. The separate Power, Volume, and Sensitivity controls are also an improvement over other brands.

The DML2000-XR is designed for use in the most demanding environments at temperatures ranging from -20 F to +120 F with no degradation in performance. The instrument can be used in the heaviest of rain showers, while the sensors can be submersed in water up to 3 feet deep!

Using the DML2000-XR is the fastest, and easiest way to pinpoint buried survey markers, septic tanks, iron water and gas pipes, water valves, water meters and any other ferrous object buried under dirt, asphalt, water snow or ice.

  • Dimensions: 42.5" Long x 3.75" Wide x 1.75" Deep
  • Audio Output - Variable Frequency (20 – 3,200) Hertz
  • Six Sensitivity Settings
  • 40 Hours of operation from 4 "AA" Alkaline batteries (increases to over 80 hours when lithium batteries are used).
  • Low Battery Indicator - RED Flashing LED
  • Optional Analog/Data Logger output – available upon request
  • Weighs only 1.8 pounds

Depth Location
As with any magnetic locator, the importance of the operator’s magnetic cleanliness cannot be over-emphasized. Some of the more common sources of local magnetic interference are watches, oxygen tanks, knives, flashlights, and battery operated devices.

The depths outlined here are typical responses. However, there have been numerous instances where targets have been located at greater depths. In almost every case, the magnetic locator operator knew how to get the maximum out of his instrument. He was magnetically clean, his search area contained a minimum amount of trash metal, and he held his instrument in a vertical position while using the instrument on the maximum sensitivity setting.

Target Depth
Iron Marker (3/4" x 18") Up to 9 feet
Cast-Iron Pipe (4" Pipe) Up to 10 feet
Manhole Cover Up to 10 feet
Well Casing Up to 18 feet
PK Nail (1.5") Up to 12 inches
Iron Valve Up to 10 feet
55 Gallon drum Up to 10 feet
Septic Tank (Handles) Up to 5 feet

Lifetime Warranty
All Dunham & Morrow magnetic locators are warranted to the original purchaser to perform failure free for the life of the product, which is no less than 25 years from the date of purchase. Dunham & Morrow will repair or replace any defective magnetic locator, provided that such magnetic locator has not been subject to abuse, misuse, neglect, modification, nor been repaired by anyone other than DMI or its authorized representative. The batteries are specifically excluded from this warranty, as is exposure of the electronics to battery acid corrosion.

Lifetime Manufacturers Warranty, Soft Plastic Case, Instruction Manual, a Carrying Strap, and an Extra Set of Batteries.

  • MPN: DML2000-XR -SC
  • UPC: #N/A
