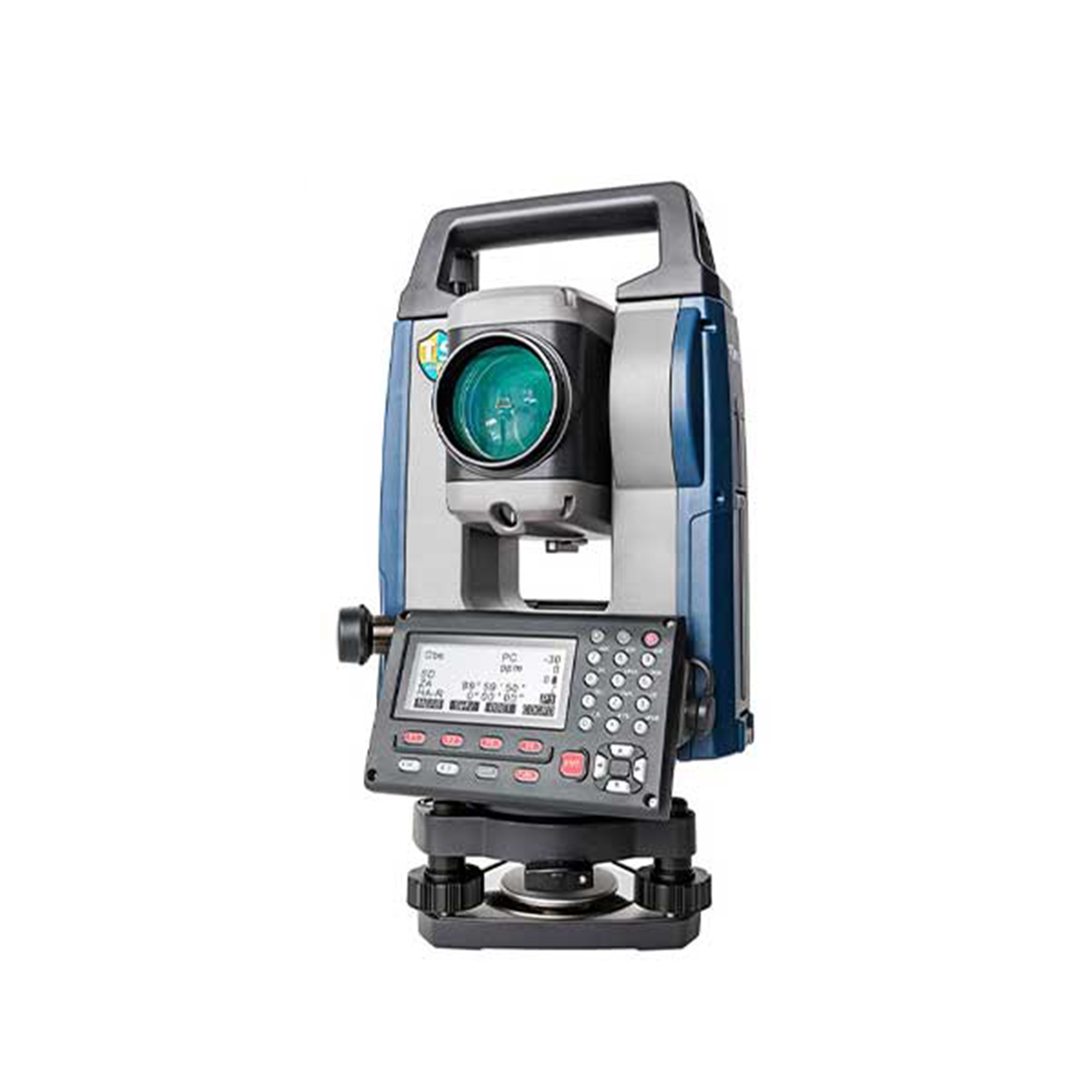

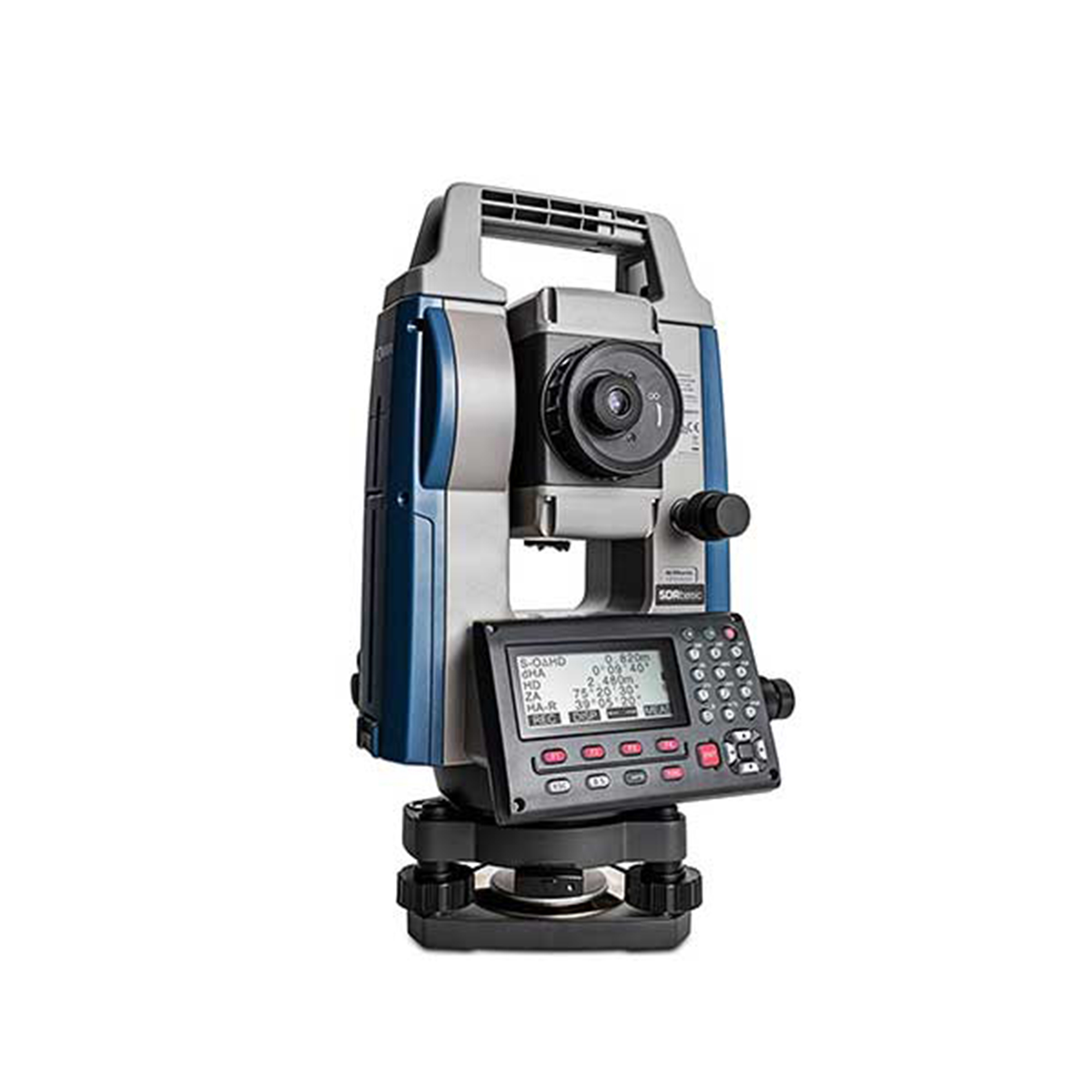

Sokkia iM-105 Total Station w/ Single Display, Bluetooth & Laser Plummet, North America - 1018763-08

The Sokkia iM-105 Total Station with Single Display, Bluetooth, and Laser Plummet is a powerful and reliable surveying instrument designed for entry-level site layout and construction applications. Featuring 5" angle accuracy, advanced reflectorless measurement, and seamless Bluetooth connectivity, this total station is perfect for professionals needing accurate and efficient data collection in the field. Its rugged construction, long battery life, and user-friendly interface make it an ideal choice for challenging environments across North America.

• 5" Angle Accuracy: Ensures precise measurements for surveying and construction tasks.
• Reflectorless Measurement: Measures up to 800m (2,624 ft) without a prism.
• Long-Range Prism Measurement: Up to 5,000m (16,404 ft) with a single prism.
• Built-in Bluetooth: Allows wireless data transfer and connectivity with data collectors.
• Laser Plummet: Provides fast and accurate instrument setup.
• Large Internal Memory: Stores up to 50,000 points and supports up to 32 GB USB flash drives.
• Fast EDM Performance: Delivers rapid distance measurements with high accuracy.
• Dual-Axis Compensation: Enhances accuracy on uneven terrain.
• Durable & Rugged: IP66-rated for water and dust resistance, ideal for tough job sites.
• Long Battery Life: Operates up to 28 hours on a single charge.

• Angle Accuracy: 5" (5 arc seconds)
• Reflectorless Range: 800m (2,624 ft)
• Prism Range 5,000m: (16,404 ft)
• Distance Accuracy: (Prism) 1.5mm + 2ppm, (Reflectorless) 2mm + 2ppm
• Telescope: 30x magnification, 45mm objective aperture
• Display: Single LCD, 240x160 pixels, backlit
• Memory: 50,000 points, 32 GB USB support
• Battery Life: Up to 28 hours
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Environmental Rating: IP66 (Dust & Water Resistant)
• Interface: Bluetooth, USB 2.0, RS-232C

• Construction Layout
• Topographic Surveying
• Civil Engineering Projects
• Land Surveying
• Mapping and GIS

• (1038706-01) High-Capacity Li-ion Battery 7.2V 6000mAh
• (1039170-02) Battery Charger with US Power Cable (Flat Pin)
• (1008731-01) 1.3mm Precision Hexagonal Adjustment Wrench
• (1014622-01) 2.5mm Precision Hexagonal Adjustment Wrench
• (1017381-01) 2.3mm Precision Flathead Screwdriver
• (1020826-01) RoHS Compliant Optical Lens Cleaning Brush
• (2219000290) 1.5mm Precision Hexagonal Adjustment Wrench
• (6453691220) Professional Instrument Tool Bag
• (2219000070) Moisture-Absorbing Silica Gel Pack
• (2219000370) Anti-Glare Telescope Lens Hood
• (2219100010) Laser Warning Information Board
• (3108720070) Optical-Grade Silicon Cleaning Cloth
• (1016821-01) EMC Compliance Documentation Card
• (1018797-04) Manufacturer Contact Information Card (English)
• (1019175-01) iM Series Quick Start Guide
• (1020849-01) iM Series Digital Documentation CD-ROM
• (2140399080) Total Station Manual (English)
• (3131120770) 2-Year Warranty Registration Card
• (3131120910) Equipment Authorization Registration Card
• (1018868-01) Professional Hard Shell Carrying Case
