Offering superior tools for underground trenching and pipe work.

Pipe Lasers

Pipe lasers are essential for underground trenching and pipe work. So when you need to align a pipe, this tool will pay for itself quickly. This pipe level tool can be set in place with brackets that will allow you to align sewer pipes and storm drains with each other. Feel free to look at what we have at Engineering Supply, so you can find the right product for your needs.

Free Shipping
Ships By Truck
Volume Discounts
Call For Lower Price

Pipe Lasers Features

Read our Helpful Article: How To Use A Laser Level

Simple to use

Extended range

Rugged design

Variety of applications

Accurate measuring

Related Categories

Helpful Videos

Watch and Learn with our product videos

FEATURES OF THE LEICA GEOSYSTEMS “PIPER” SERIES PIPE LASER


This pipe level laser is small enough to fit inside a 100 mm pipe, and it’s versatile enough to complete any type of pipe laying job. You can use it inside the pipe, over top, and even in a manhole. It’s a high-performance tool that’s perfect for full-function leveling, and it’s 100% waterproof so you don’t have to worry about getting it wet. This pipe level tool from Leica is highly accurate. And because it has an aluminum housing, it’s built for years of rugged use. It also has a number of user-friendly features, which makes field setup easy. And it’s perfect for both above-ground and below-ground applications.


INTRODUCTION TO THE SCHONSTEDT UTILITY LOCATOR


The Schonstedt Utility Locator is the most reliable in the industry. And with unmatched sensitivity, you can find what you’re looking for without missing your target. It uses an electrical signal that you can tune to a specific frequency, which is then applied to a conductor. This signal is transmitted to a receiver, so you can find an electrical signal with a high degree of accuracy. And here at Engineering Supply, we’re proud to carry the Schonstedt brand. Feel free to look at what we have in our inventory, so you can find a tool that meets your specific needs.


Featured Articles

Read our Helpful Articles


AN IDEAL TOOL FOR ACCURATE PIPE LEVELING

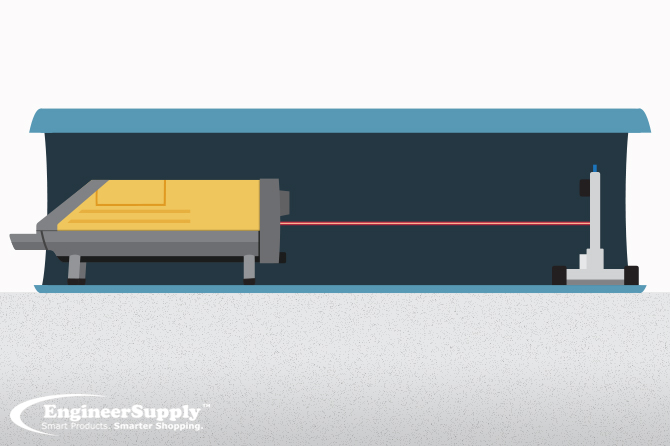

Pipe lasers are the perfect tool for making sure that your pipes are properly leveled, because it measures the slope and grade with a high degree of accuracy. Having precise pipe layouts will minimize the risk of clogged lines or reduced capacity, which is why having a pipe level laser is such an important tool. Many models have the ability to level themselves, which can make it easier to set up. That’s why this pipe level tool is a must-have for any type of piping or underground trench work. Feel free to look at what we have in stock. We’re sure you’ll be able to find a product that will suit your needs.


QUALITY PIPE LASERS FROM TRUSTED MANUFACTURERS

If you’re looking for some of the most accurate pipe lasers, you can find them at Engineering Supply. We work with the most trusted manufacturers in the industry, and all of them have been proven in the market. You want a pipe level tool that will not only give you quick results but will also handle years of rugged use. That’s why you need to get a pipe laser from Engineering Supply. Be sure to look at what we have in stock, so you can find a pipe level laser that’s right for you!


Frequently Asked Questions

What does a pipe laser do?

A pipe laser level is used to determine the proper grade for laying pipes, so it acts as a kind of electronic level. It shoots high-powered laser beam at a predetermined angle, which will establish the proper grade for a construction project.

What is 1% on a pipe laser?

The grade on a pipe laser level establishes the slope of the pipe and is typically displayed as a percentage. A rise of one foot over a run of 100 feet is equal to a 1% grade. So once you enter your desired grade into the unit, the laser will automatically adjust the beam to match the slope of the pipe and will even maintain an accurate reference if it has been disturbed.

How do I install a sewer line with a laser?

You can install a sewer line with a pipe laser by performing the following steps:
  • Set up the pipe laser level next to the upper part of the manhole, which will be at the highest elevation point.
  • Spread the legs of the tripod and drive the legs into the ground.
  • Put the laser level on the tripod and adjust the bubble level knobs until it indicates level.
  • Put the receiver on the grade rod.
  • Turn on both the laser and the receiver.
  • Place the bottom of the grade rod in the trough of the outflow hole, which is located at the bottom of the manhole.
  • Move the receiver up and down the grade rod until you hear beeping.
  • Record the indicated number on the grade rod.
  • Walk to the next manhole with the grade rod, but don’t move the laser level.
  • Shoot the grade of the intake hole trough. The recorded elevation should be larger than the first, even if it’s at a lower elevation.
  • Subtract the first number from the second and record the results.
  • Measure the distance from the outflow hole of the first manhole to the intake hole of the second.
  • Divide the sum of the elevation difference by the length of the run between the two manholes, which will be the required amount of fall per foot for every pipe you install between them.
  • Place the pipe laser into the outflow hole of the upper manhole.
  • Adjust the fall-per-foot calibration with the “plus” and “minus” buttons on the pipe laser level to match your calculation.
  • Place the laser target into the intake hole of the second manhole, and press the horizontal adjustment buttons (right and left) until the laser is centered onto the bullseye of the target.
If you want to find the best pipe laser for your next project, be sure to look at what we have at Engineer Supply.

What is the best laser level for plumbing?

Plumbers can save a great deal of time by using a pipe laser, because it can find plumb lines accurately. It can even be used to maintain a consistent slope, which can be helpful if you need to install piping systems. If you’re looking for the best piper laser for your specific needs, be sure to browse through the broad selection we have at Engineer Supply.

Where can I find the best pipe laser?

If you’re looking for a pipe laser level that’s built for the working professional, you can find what you need at Engineer Supply. We have some of the best pipe lasers on the market, and all of them are built to withstand the harshest work environments. Feel free to look at what we have in stock, so you can find a pipe laser that will meet your specific needs.


Ever since they were first introduced, critics have been seeing laser leveling tools as nothing more than a passing fad. But if that were the case, they wouldn’t be so popular for as long as they have. Laser levels can be suitable for many applications, and they come in both digital and non-digital models. You can even find self-leveling models, which can make it easier to set up and use. However, if you don’t have a laser level that calibrates itself, setting it up can be a little more complicated.


Put the laser level on the surface that you want to level, and manually adjust its position with the bubble-level on the device. Turn on the laser to get a true line where you need it, and mark the surface as needed. You may need someone else if you’re working on a larger project. Reposition and re-level the device to double-check your markings before you start working. But if you’re using a self-leveling device, you just have to mark and double-check each measurement.
Feel free to look at the vast selection of pipe lasers and other laser leveling tools that we have at Engineering Supply. We’re sure you’ll be able to find one for your specific needs.
