What are the Tools and Equipment Used in Civil Engineering?

Blog Tools Used In Civil Engineering The job of a civil engineer is to build different structures (such as bridges, highways, and waterways), and they use very precise tools and instruments to guide them. They rely on survey equipment and other tools to make their jobs easier and more efficient. And without them, the structures that they build and design wouldn’t be safe. Civil engineers use geographic information systems (such as AutoCAD) and various drafting tools to help them map out and plot a specific location. They also use software to help them design the structures that need to be built at that location. This is in addition to the different types of survey instruments they use to measure areas of both land and water, which may include a sophisticated GPS system that’s designed for these types of applications.

blog tools used in civil engineering

Types of Civil Engineering Tools

There may be a few hundred tools that are used by civil engineers, and there are always new developments happening in this field. This may include higher capacity survey equipment that’s meant to address certain challenges while construction is underway. There are tools that are used for measuring certain areas, and there are others that are designed to help with a project’s execution. Some of the surveying supplies that are used for measuring include:
  • Compasses and cinometers
  • Transits and theodolites
  • Levels
  • Chains and tapes
  • Prisms and reflectors
  • Magnetic locators
  • Grade rods
There are also various tools that are used for testing concrete, as well as for sand and other aggregates. Civil engineers may have to use certain tools to test the soil and water quality of an area, and there are a virtually endless amount of tools that are used in construction. For highways, they might use the following:
  • Scrapers
  • Compactors
  • Asphalt laying machinery
  • Concrete pavers
  • Concrete spreading machinery
  • Concrete mixers
  • Transit mixers
  • Compaction equipment
  • Concrete vibrators
  • Tippers
  • Trailers
  • Dumpers
  • Tankers

Shop Survey Equipment

For high-rise buildings, they may need to use cranes, hoists, winches, and scaffolding so they can work at higher altitudes. And there may be other types of machinery that are good for building dams and bridges. This is in addition to the various types of survey equipment being used for planning and measuring, which is often the first step before any type of construction can take place.

blog tools used in civil engineering

Quality Survey Instruments from Engineering Supply!

If you want a place that sells quality surveying supplies and tools, you can find them at Engineering Supply. We carry some of the top brands in the industry, so you can be sure to get quality tools that will give you years of solid use. We have a broad selection in our inventory, so we know you’ll find a product that will meet your needs. When it comes to getting quality survey instruments, Engineering Supply is a name you can trust. Feel free to look at what we have in stock. And if you have any questions, be sure to reach out to us. We would be happy to speak with you!




Best Theodolites

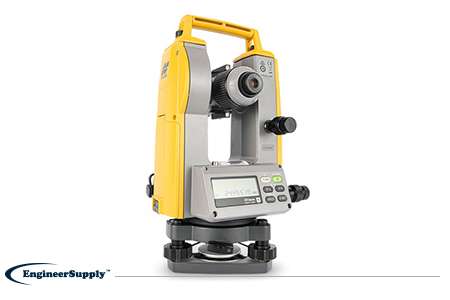

#1: Topcon Theodolite DT-307L with Laser Pointer

best-theodolites-topcon-103441907

This theodolite integrates the same advanced circle reading technology found in Topcon’s high-performance total stations, so you can do more accurate calculations while you’re out on the field. Topcon continues to include high-quality optics and electronics in all their theodolites, and this particular model can endure any kind of wet or dust condition that you may find while you’re out in the field. This will keep you productive regardless of the surrounding weather. This theodolite also comes with the following accessories:

  • Plumb bob.
  • Tool kit.
  • Lint-free lens cloth.
  • Waterproof protective cover.
  • Hard carrying case.
Be sure to pick yours up at Engineer Supply today!

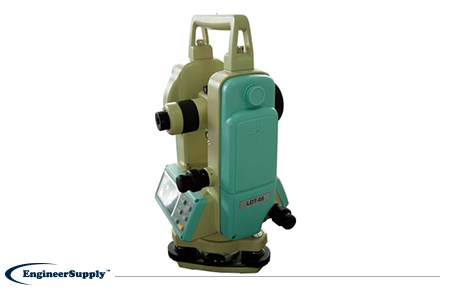

#2: Leica Digital Electronic Theodolite

best-theodolites-leica-6003830

This digital theodolite is an economical but sophisticated tool for measuring angles and slopes with a five-second accuracy. It also has a laser plummet for quick and easy setup, a reticle illuminator for a brighter view, as well as many other attractive features.

It’s a great tool for even the most demanding job requirements, and the automatic vertical angle compensator (which can be turned on or off) will make sure you get an accurate reading if the instrument moves out of balance. If the theodolite moves out of the compensation range, it will display a tilt warning in the vertical angle reading space (which can help you to avoid any costly errors).

Both sides of the instrument have back-lit LCD display panels, which will allow you to access functions from either side. And both of them are easy to read, even in low-light conditions. This digital theodolite has a number of other features, which can include:

  • Horizontal angle indicator that can help with faster orientation.
  • Numerous customization options.
  • IP54 Rating for water and dust resistance.
  • NiMH rechargeable battery pack with a charger.
  • AA alkaline battery holder for an additional power option.
If you’re ready to purchase this theodolite, be sure to pick yours up at Engineer Supply.

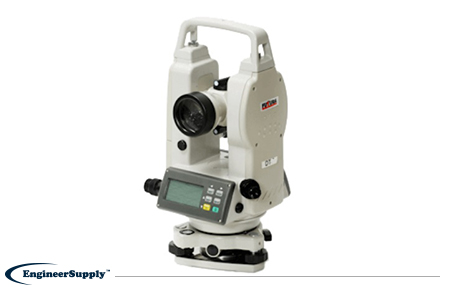

#3: Futtura 5-Second Digital Theodolite

best-theodolites-futtura-DT-5

This theodolite can give you more accuracy at a lower cost than most of the standard models. It comes with a NiCad battery and charger, as well as an alkaline battery pack. It also has two LCD displays that can be used with a large push-button system. It has flexible mounting options with its removable tribrach, and it will fit any standard 5/8” x 11” flat or dome-head tripod.

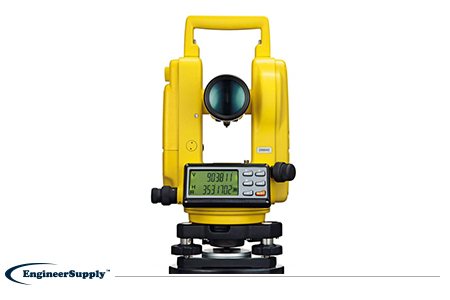

#4: GeoMax ZIPP02 2-Second Digital Theodolite

best-theodolites-geoMax-789310

With a vertical compensator and a 2-second accuracy, this theodolite will give you the precision you need for even the most demanding jobs. It has a variety of display modes and measurement units. It’s also easy to operate with only six keys, and it comes with a laser plummet so you can make sure it’s set up correctly. When you purchase this digital theodolite, it will come with the following accessories:

  • Hard carrying case.
  • Tribrach.
  • Rechargeable battery.
  • Charger
  • Alkaline battery cassette.
It also has an IP54 Rating for dust and water resistance as well as a 36-hour battery life.

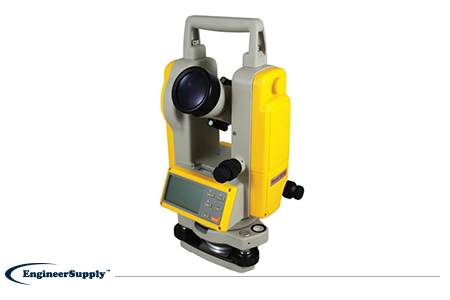

#5: David White DT8-05LS 5-Second Laser Sight Digital Theodolite with Optical Plummet

best-theodolites-david-white-DT8-05LS

This theodolite has a laser beam built into the aperture, so it can be easily and accurately aligned. And the simple, push-button functions will give you precise digital readouts on an LCD display. It also has an incremental encoding system with two digital displays and an automatic power shut-off system. The coaxial tangent and clamp screws will make sighting and alignment easier, and it even has an optical plummet for better point centering.

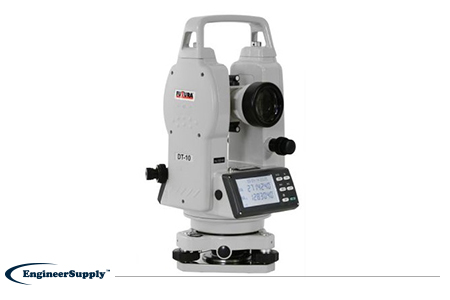

#6: Futtura 10-Second Digital Theodolite

best-theodolites-futtura-DT-10

This theodolite uses rechargeable NiCad batteries (charger is included) as well as an alkaline battery pack. The two LCD displays have large displays, which makes it easier to read. This design allows you to get an accurate reading from either side of the machine. The built-in crosshair, display illumination, and simple push-button operation makes it easy to use. And the removable optical plummet (with its ability to fit flat or dome-head tripods) will give you more flexibility.

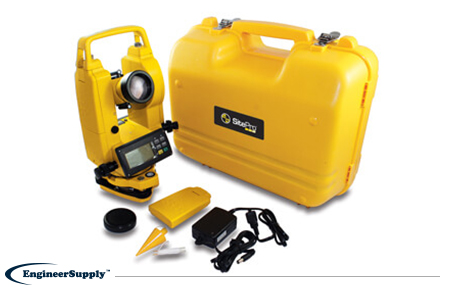

#7: SitePro 5 Second Digital Theodolite

best-theodolites-sitePro-26-DT05

The incremental encoding detection system and dual digital displays on this theodolite will allow you to get precise readouts that are easy to read, and the 30x telescope will give you a bright wide field. The built-in 3x optical plummet will allow you to set it up quickly and easily. It also has a 5-second vertical and horizontal accuracy, so you can get precise readings in even the most demanding situation. This digital theodolite comes with a variety of other features, including the following:

  • Automatic power shut-off.
  • Optical plummet for centering of point.
  • Coaxial tangent and clamp screws to make sighting and alignment functions easier.
Be sure to pick yours up at Engineer Supply today!

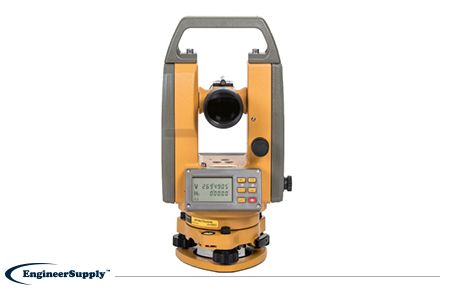

#8: Northwest Instrument 5-Second Digital Theodolite

best-theodolites-northwest-instrument-NETH503

This theodolite has photoelectric incremental encoding that will make sure you get precise results. The horizontal and vertical measurements are displayed on dual-sided LCD displays. And it has a number of other features, which includes the following:

  • A telescope that features erect imaging.
  • An aperture of 45mm.
  • 30x magnification.
  • 4-second resolving power.
  • Stadia ratio of 1:100.
  • Angle measurement with a minimum accuracy of five seconds at 360 degrees.
If you’re ready to pick up one of the best theodolites for surveying, be sure to pick yours up at Engineer Supply.



Best Total Stations

#1: Leica iCON 5-Second iCB70 Manual Construction Total Station

Best total stations leica-868588

Featuring mobile data capability, this Leica total station will let you transfer construction data between the office and the instrument. This will always keep your project progress and plans up to date, which will make sure you don’t miss any changes in the design. The device is simple and easy to master, so you can finish your projects more efficiently and with minimal training. You can analyze layout points both quickly and accurately, even on complex structures. You can also make fast and accurate as-built measurements, do volume calculations on-site, and work with digital design data (including fully rendered models in IFC format).

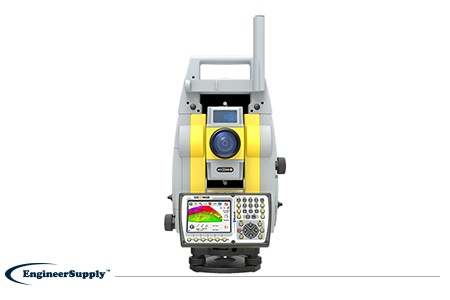

#2: GeoMax Zoom90 Series Robotic Total Station Package

Best total stations geoMax-6010321

With this total station, you can minimize the amount of time it takes to perform any survey task, while maximizing your performance and accuracy on the job site. This total station for surveying is the ultimate one-man system with the following features:

  • Up to 20% more automation performance.
  • Extended reflectorless measurement capability.
  • STReAM 360.
  • AccXess technologies.
  • Windows CE open connectivity.
It will scan the entire working area in seconds, so you can find your target quickly. Once it’s locked, the instrument will continue to aim at the target (even if it’s moving). It will also aim accurately at any prism without having to look through the telescope, and measurements are performed automatically with a great deal of dependability.

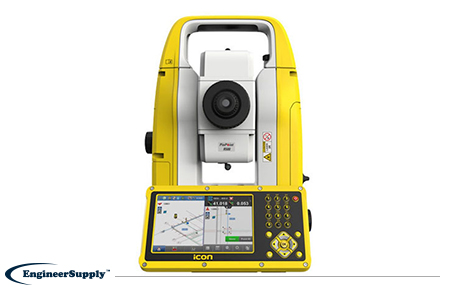

#3: Leica iCON 5-Second iCB50 Manual Construction Total Station

Best total stations leica-868584

This Leica total station will allow you to go digital, so it’s leading the way to the no-strings and no-tapes approach for a construction project. It’s easy to learn, so you can finish your projects more efficiently and with very little training. This total station will allow you to perform a variety of tasks, which include but may not be limited to:

  • Evaluating layout points and lines quickly and accurately.
  • Evaluating complex structures easily.
  • Quickly performing verticality checks on formwork and structures.
  • Completing fast and accurate as-built measurements.
  • Working with digital design data (including fully rendered models in IFC format).
If you’re looking for one of the best total stations for construction and surveying applications, be sure to pick yours up at Engineer Supply.
