Selecting the right magnetic locator can make a significant difference for construction, surveying, and utility work. Accurately finding underground ferrous objects like survey pins, markers, valves, and manhole covers helps prevent costly delays, protects equipment, and keeps projects on schedule. The Schonstedt Maggie and GA-92XTd each excel in different ways: the Maggie delivers deep detection with advanced HeliFlux sensors, while the GA-92XTd focuses on portability and quick setup with its retractable, single-handed design. This guide walks you through their capabilities, sensor performance, and field-ready features to help you choose the locator that fits your specific workflow and site conditions.

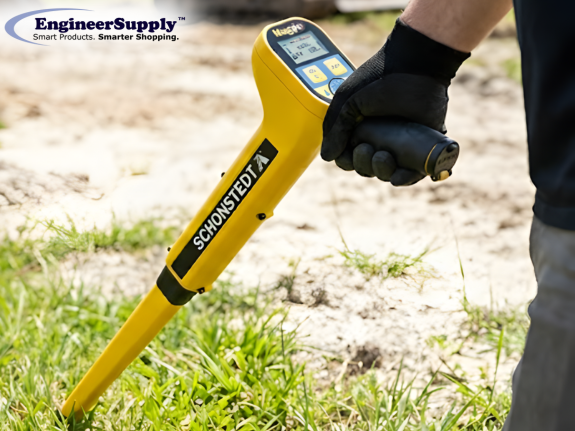

Schonstedt Maggie: Features and Benefits
The Schonsted Maggie combines the sensitivity of the classic GA-52Cx with the convenience of single-handed operation. With its extended 20-inch sensor spacing, it delivers stronger signal differentiation—ideal for locating deep, small, or weakly magnetic targets.
Key Features
- HeliFlux sensors for high sensitivity
- Expanding bar graph with polarity indication
- Digital mG readout for gradient field intensity (0–500 mG)
- Ergonomic, durable design with IP54 dust/water resistance
- Quick-access 9V battery compartment
- Gain memory and 4-level gain control (L, M, H, XH)
- 3-level audio volume
- Modular ABS construction
Specifications
- Overall Length: 32.5"
- Sensor Spacing: 20"
- Weight: 2.6 lbs
- Operating Temperature: -13°F to 140°F
- Battery Life: 24 hours (intermittent use)
- Warranty: 7 years
- Material: High-impact ABS
Pros
- Highest sensitivity among handheld Schonstedt locators
- Excellent depth for small or deeply buried markers
- Very accurate in varied soil and utility conditions
- Long-lasting battery for extended workdays
- Strong, durable build for harsh job sites
- Great for survey pins, PK nails, valve boxes, and iron property markers
Cons
- Larger frame makes storage slightly less convenient
- A bit heavier than compact models
- Higher sensitivity may pick up interference in congested areas
- Higher price point

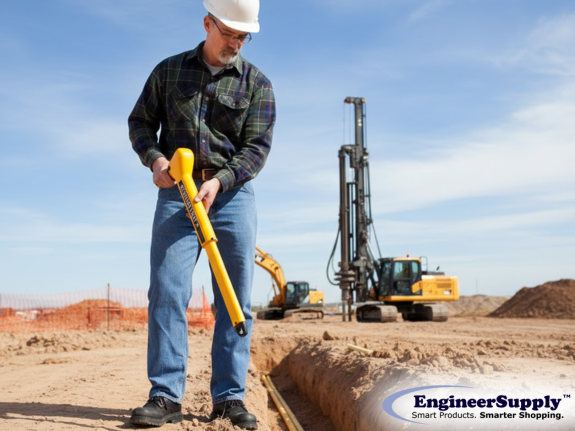

Schonstedt GA-92XTd: Features and Benefits
The GA-92XTd is a compact, retractable magnetic locator designed for maximum mobility. Its 15.5-inch closed length makes it extremely easy to carry, store, and deploy quickly on site. Despite its size, it still offers strong sensitivity using the same HeliFlux sensor technology.
Key Features
- Retractable design (15.5" closed, 26" open)
- Fingertip controls for sensitivity and volume
- Fast-access 9V battery compartment inside the grip
- Audio frequency (30–4000 Hz) + bar graph visual feedback
- Polarity indicators (+/–) to help identify target orientation
- IP54 dust and water resistance
- Modular high-impact ABS construction
Specifications
- Sensor Spacing: 9.5"
- Weight: 2.4 lbs
- Operating Temperature: -13°F to 140°F
- Battery Life: 24 hours (intermittent use)
- Construction Material: ABS
Pros
- Compact and portable—excellent for tight spaces
- Lightweight for reduced fatigue
- Easy one-handed operation
- Accurate detection up to ~16 ft depending on object size
- Retractable body ideal for transport
- Quick battery swaps minimize downtime
Cons
- Lower sensitivity than Maggie for deep/small targets
- Shorter sensor spacing reduces gradient resolution
- Less stable in windy or rough terrains
- Not ideal for jobs requiring maximum depth or precision
Maggie vs. GA-92XTd: Feature Comparison
| Feature |
Schonstedt Maggie |
Schonstedt GA-92XTd |
| Sensitivity | Highest | High |
| Operation | Single-handed, ergonomic | Single-handed, compact |
| Length | 32.5" | 26" open / 15.5" closed |
| Sensor | 20" | 9.5" |
| Weight | 2.6 lbs | 2.4 lbs |
| Audio | Expanding bar graph, audio | Audio + visual indicators |
| Durability | IP54 dust & water | IP54 dust & water |
| Battery | 24 hrs (intermittent) | 24 hrs (intermittent) |
| Best For | Deep ferrous objects, survey pins, markers | Portability, manholes, valves, property markers |
Which Locator Should You Choose?
Choose the Schonstedt Maggie if:
- You need maximum sensitivity and depth.
- You frequently locate small markers, deeply buried iron objects, or items in challenging soils.
- You want a rugged, full-sized locator for daily professional use.
- Your work involves surveying, construction staking, or locating older markers.
Choose the Schonstedt GA-92XTd if:
- Portability and compact storage are top priorities.
- You work in urban areas, tight spaces, or fast-paced field inspections.
- You need a locator that’s easy to carry, deploy, and store.
- Your tasks involve routine locating of manholes, valve boxes, and property pins.
Both models are professional-grade Schonstedt locators , and your choice depends on field requirements, detection depth, and workflow needs.
Conclusion
The Schonstedt Maggie and GA-92XTd are both excellent tools, but each has its own strength. The Maggie offers strong sensitivity, making it great for finding deeper or smaller metal objects. The GA-92XTd is lighter and easier to carry, perfect for quick jobs in the field.
Your choice depends on what matters more for your work—depth or portability. The right locator can help you work faster, reduce errors, and stay productive. If you need more options, Engineer Supply has a full lineup of magnetic locators to help you choose the best one.
