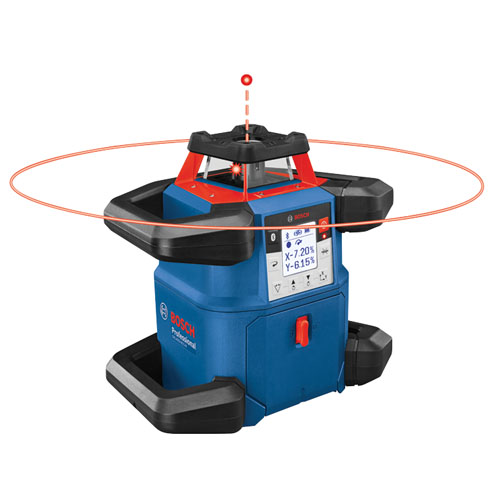

Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal and Vertical Rotary Laser Kit with CORE18V 4.0 Compact Battery

Model Number: GRL4000-80CHVK

Descriptions:

The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling.
It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications.
This laser is powered by a Bosch CORE18V 4.0 Ah battery, providing extended runtime.
The rotary laser is compatible with 4.0 Ah and 8.0 Ah Bosch CORE18V Li-ion batteries.
It also features an alkaline adapter to use four (D) cells.
The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards.
It features Bluetooth connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more.
The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate.
It delivers accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications and ±1/8 In. at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver.
The laser features a vertical beam at 90° point for layout, squaring and plumb applications.

Features:

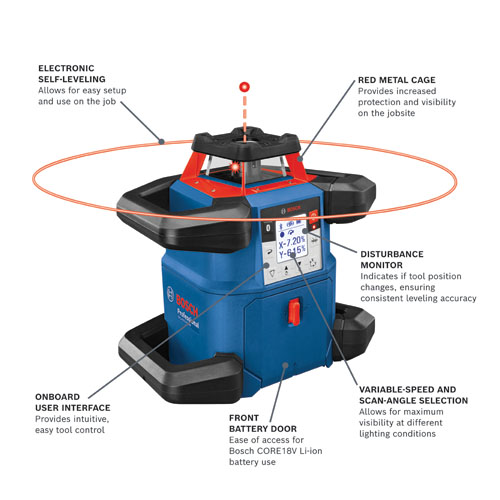

Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth connectivity, uCAL user-calibration and more
Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
Dual Power Source – for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
Bluetooth connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
Electronic self-leveling – allows for easy setup and use on the job
Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions

Specifications:

Accuracy: ± 1/16 In. @ 100 Ft. Horizontal Mode ± 1/8 In. @ 100 Ft. Vertical Mode
Battery: Lithium-Ion Battery
Battery Voltage (V): 18
Height: 11.0"
IP Rating: IP 68
Laser Diode: 635 nm, < 1mW
Length: 12.8"
Leveling Type: Self-Leveling, Up to 5°
Material: Plastic Composite
Mount Threading: 5/8-11
Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
Range: Up to 4,000-ft.
Weight: 8.2lb
Width: 7.4"

Kit Includes:

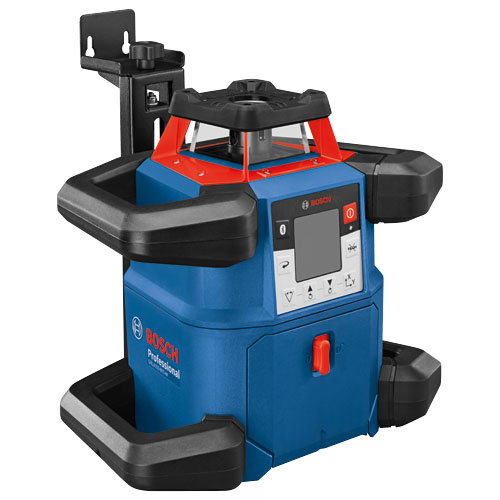

(1) GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser

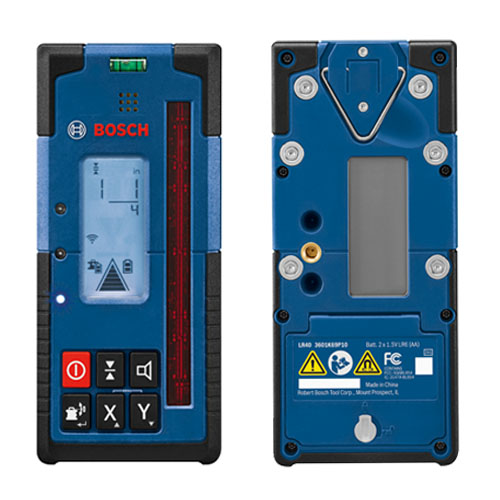

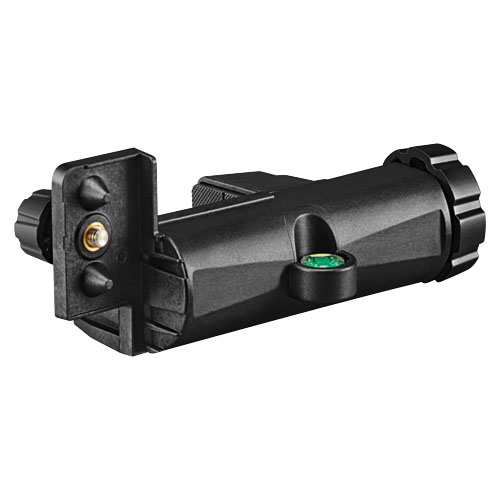

(1) LR40 Laser Receiver with Bracket
(1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
(1) 18V Battery Charger
(1) BA1 Alkaline Battery Adapter
(4) D Batteries
(4) AA Batteries
(1) BT170 Heavy-Duty Aluminum Tripod

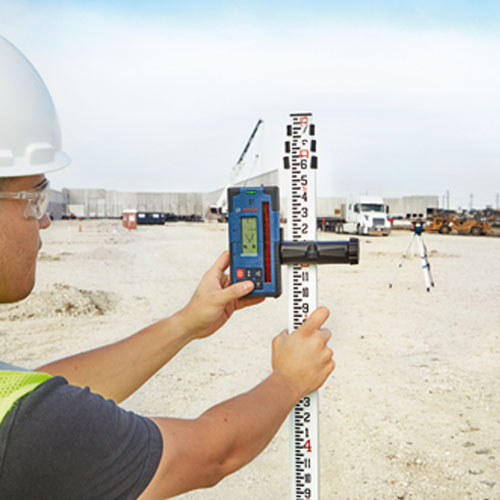

(1) GR13 13 Ft. Grade Rod
(1) WM6 Wall Mount

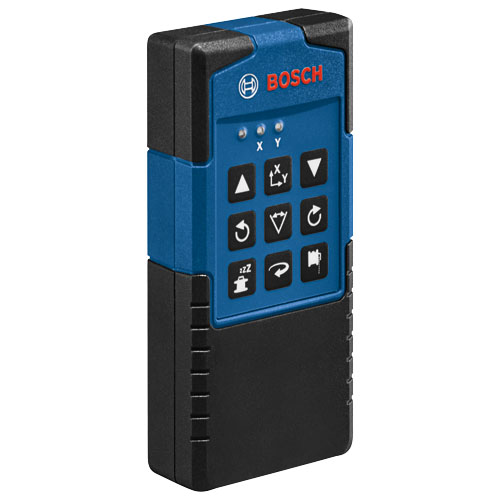

(1) RC5 Remote Control
(1) Carrying Case

MPN: GRL4000-80CHVK
UPC: 000346643046
