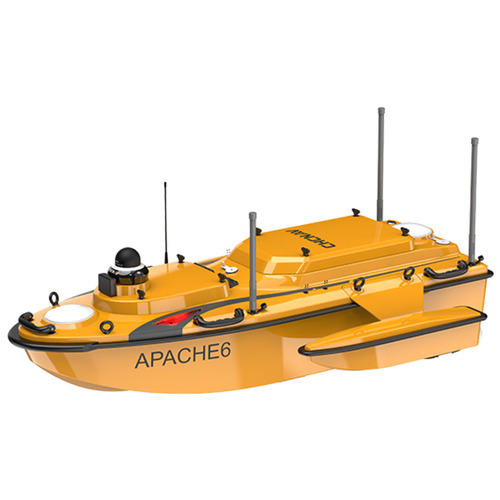

CHCNAV Apache 6 Multi-Beam Bathymetric Survey USV - Apache 6

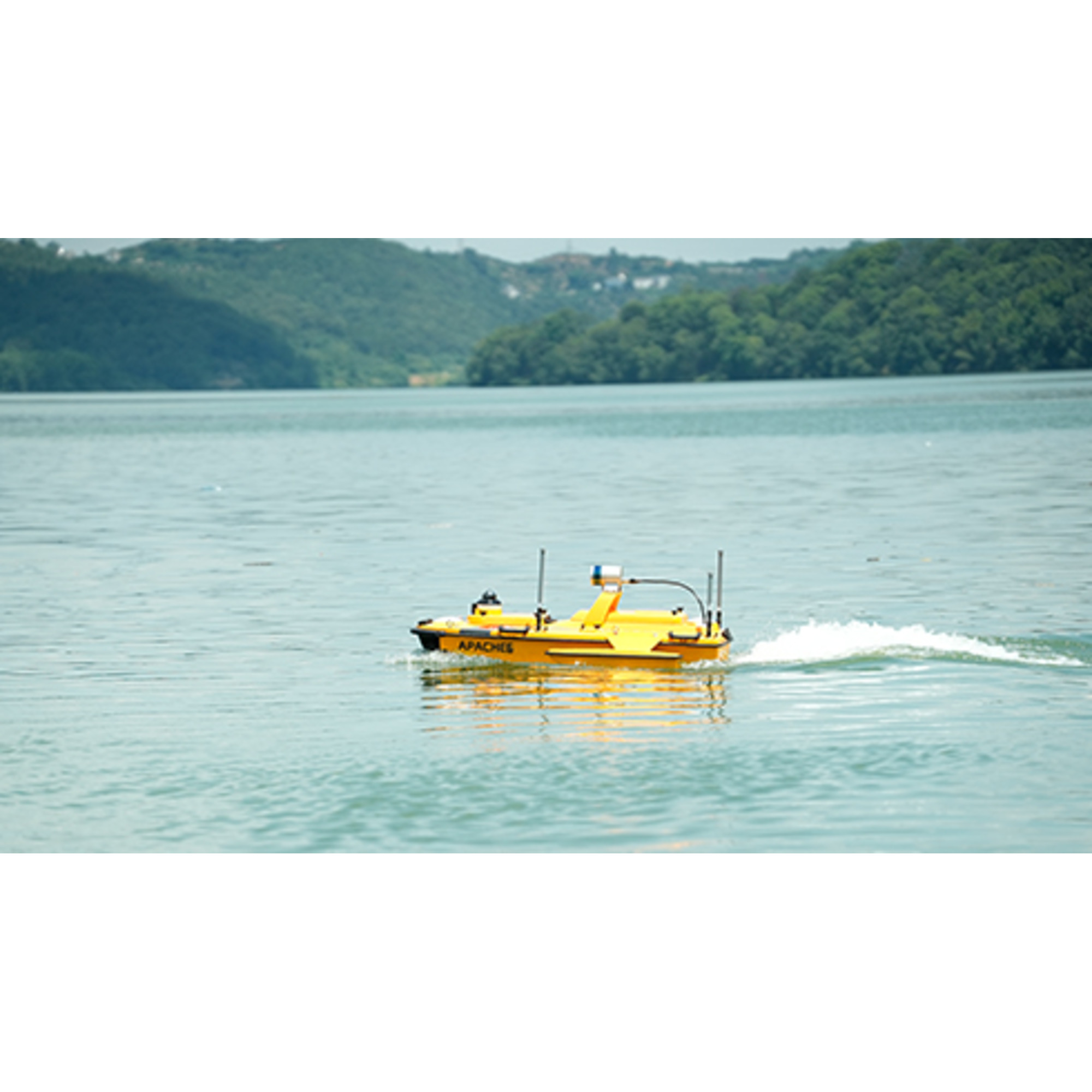

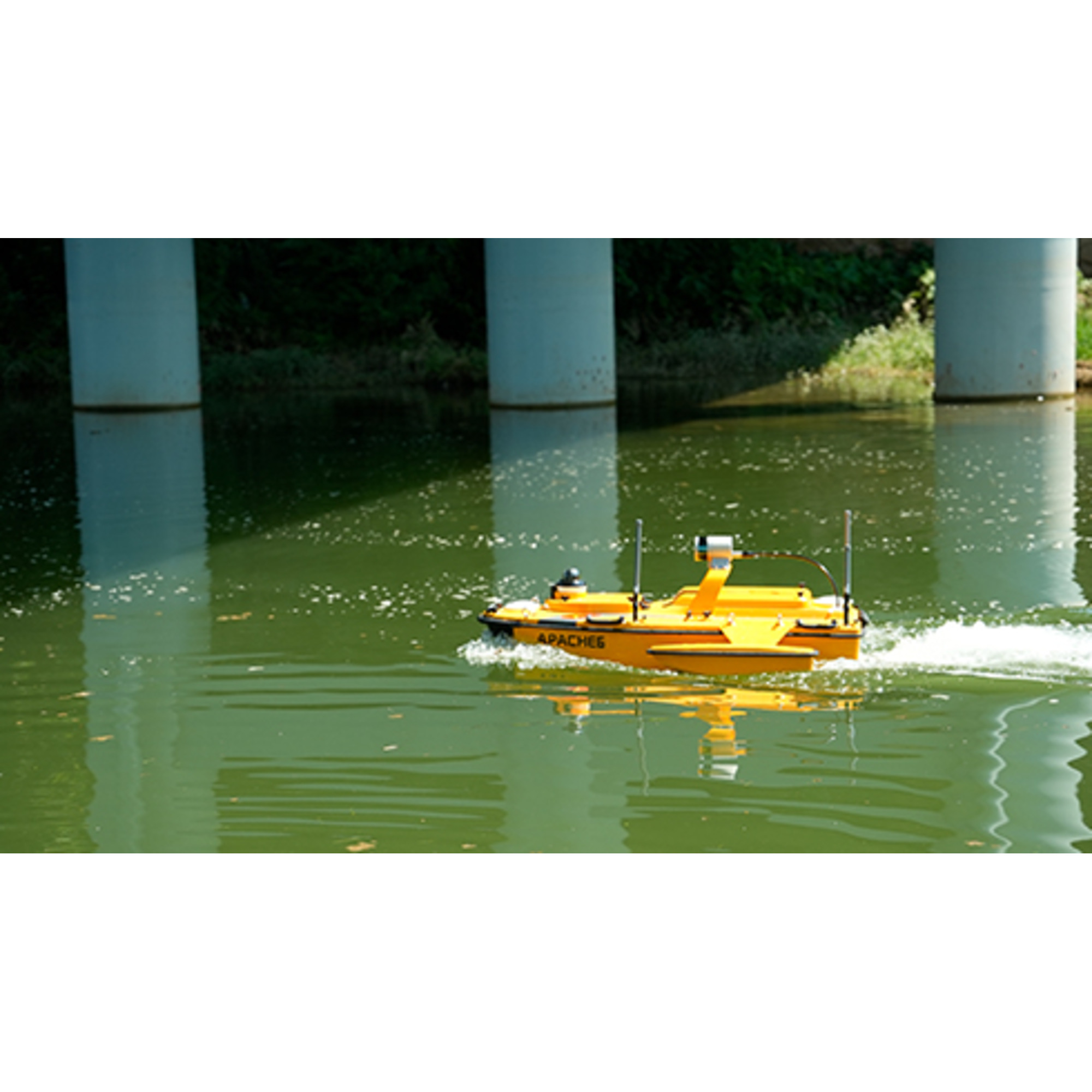

The APACHE 6 is an autonomous USV optimized for high-resolution 3D bathymetric surveys, underwater object localization, and offshore construction. Featuring a dual propeller system, it ensures stable automatic cruising and high operational efficiency. With the ability to operate in android remote control, the APACHE 6 provides flexibility and accuracy for complex marine survey projects.

• Multifunctional USV platform: Perform accurate 3D bathymetric surveys with optional multibeam echosounders and LiDAR scanner. Collect high-resolution data and improve the accuracy of underwater object location and offshore construction.
• Stable Triple-Hulled Vessel The APACHE 6 tri-hull design and detachable side floats offer a stable position and greater adaptability to ensure optimum stability even in fast currents.

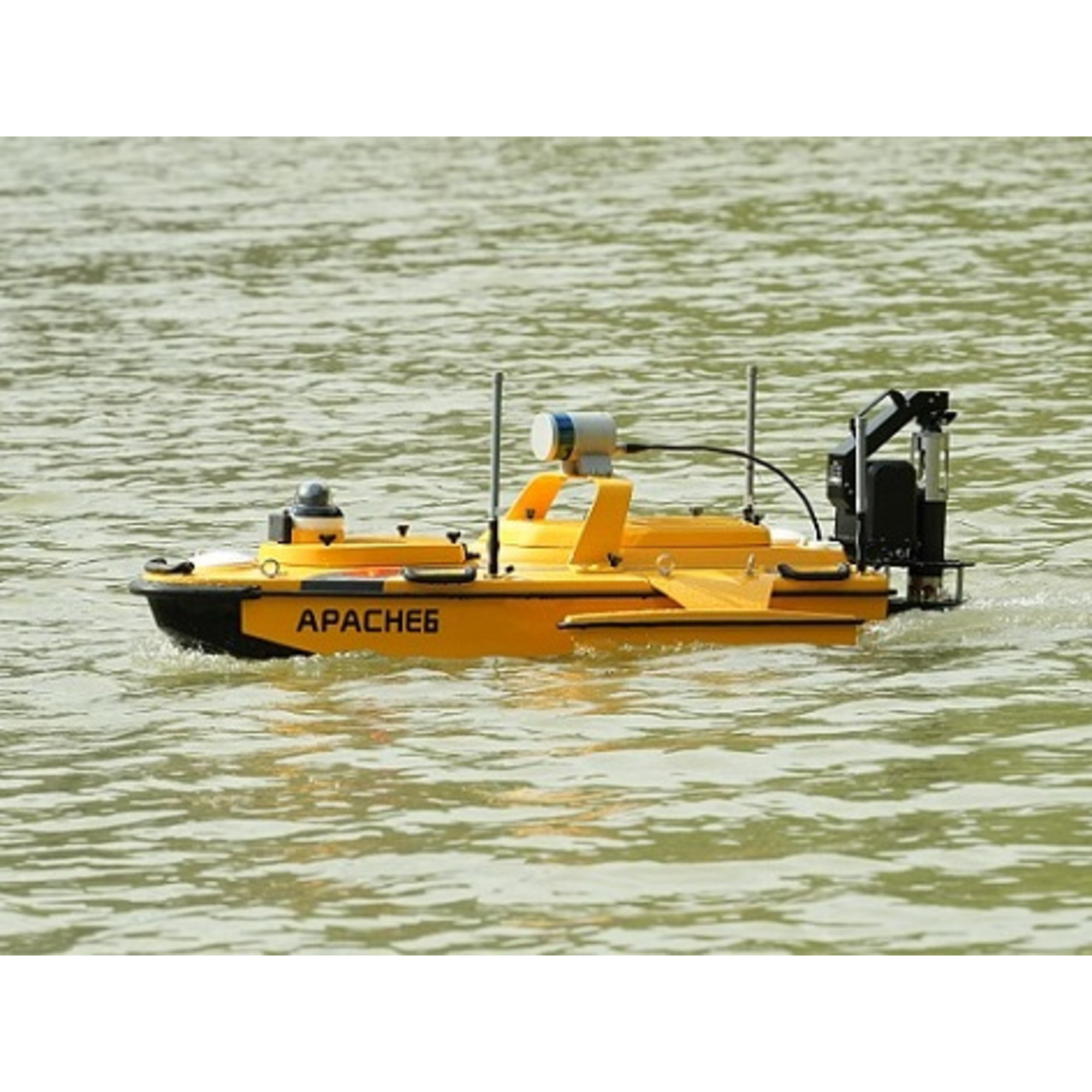

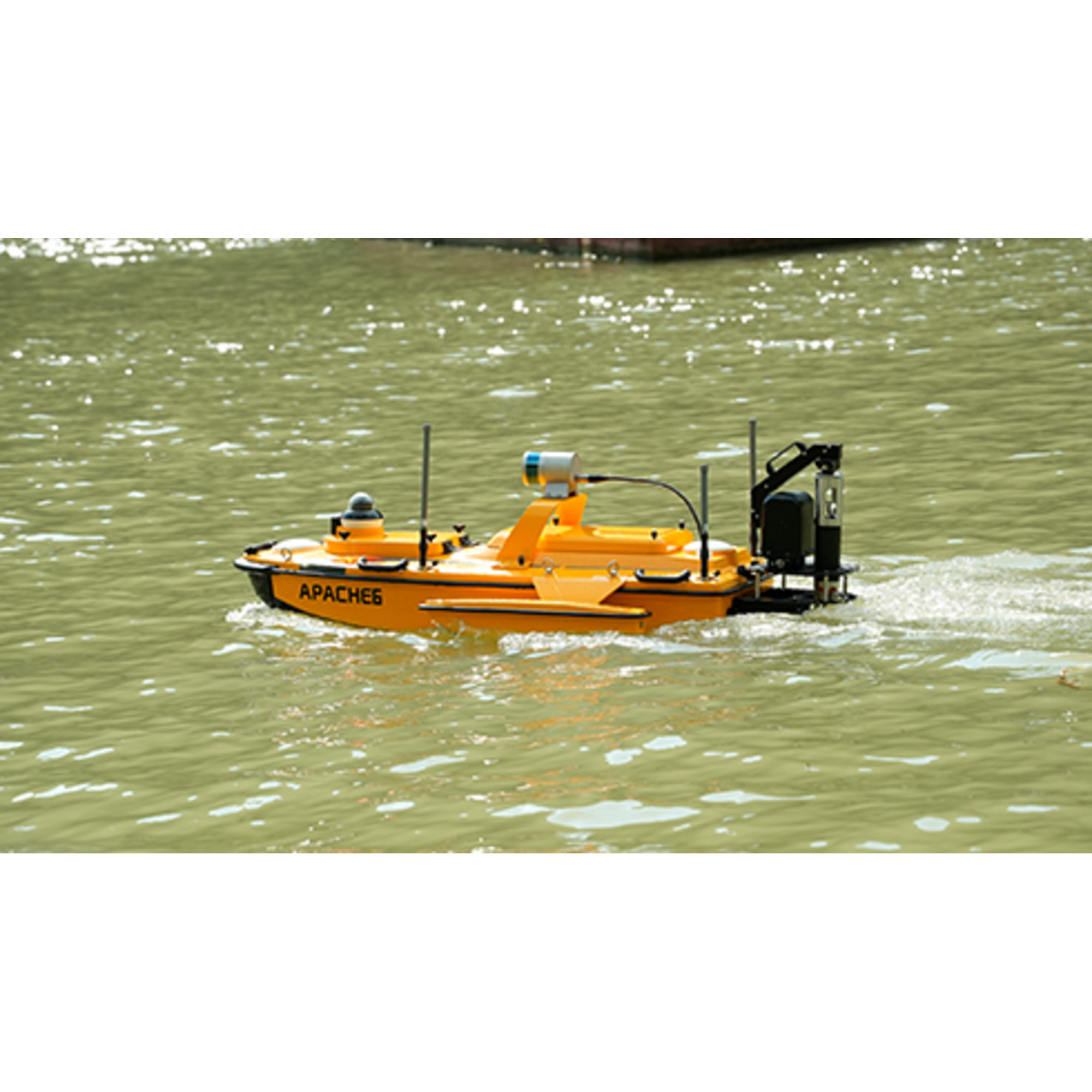

• Automated SVP Measurement: The APACHE 6 supports an optional automatic sound velocity profiler kit, which can be controlled via the remote controller. The kit can be installed or removed in under one minute, providing a complete multibeam echo sounder solution for the USV.

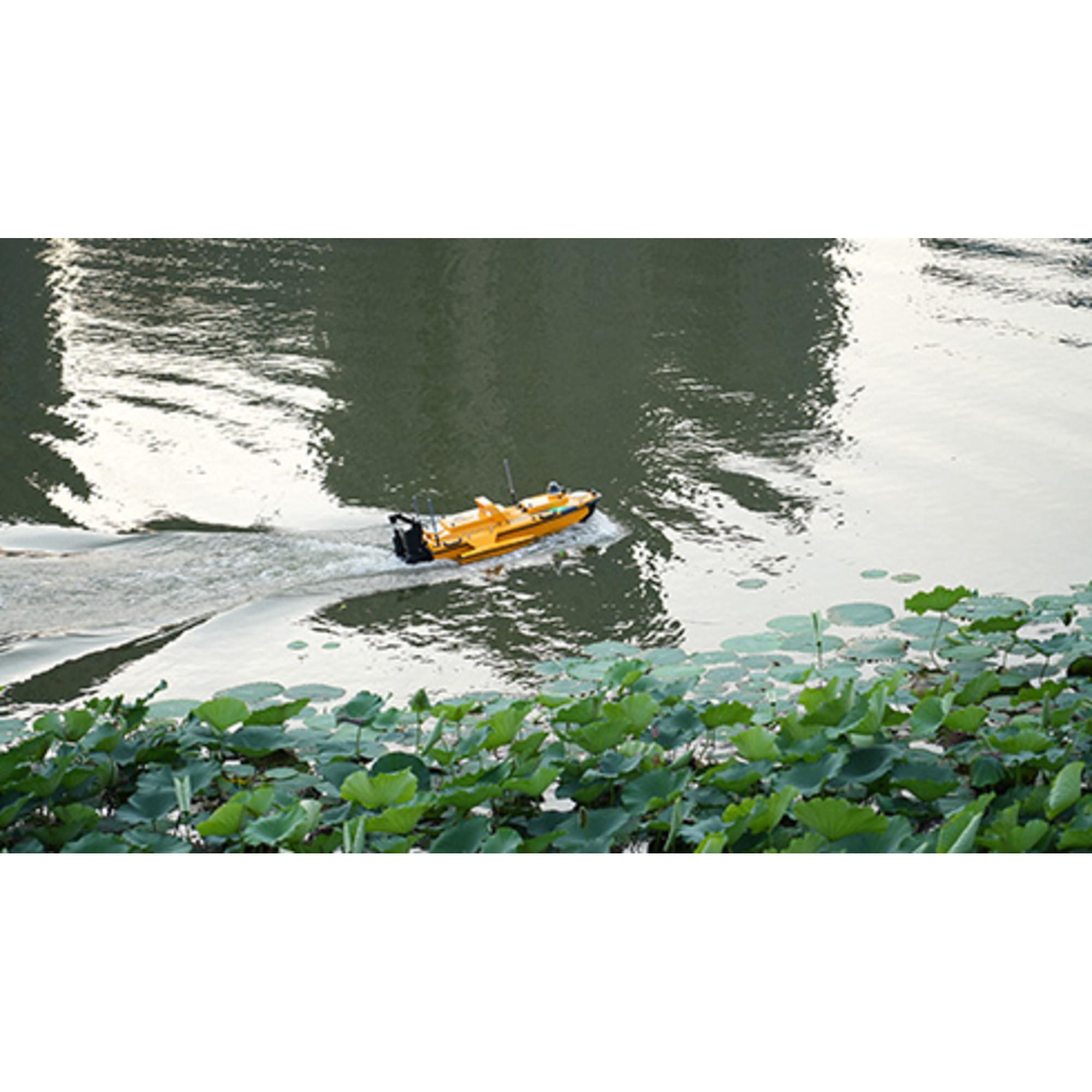

• Rotating Propellers: The APACHE 6 utilizes intelligent rotating propeller technology to adjust the direction of water flow. It allows the USV to achieve a turning radius of just 2 meters, making it ideal for operation in narrow waterways. It also enhances the efficiency of multibeam echo sounder bathymetric surveys.
• Smart Remote Control: The Android remote control provides real-time access to vessel status and survey data, eliminating the need for a computer. Its intuitive interface ensures efficient survey operations, while a multi-link communication enables long-distance data transmission for seamless control of the APACHE 6.

• Performances
  • Speed max.: 6 m/s max
  • Payload capacity: Up to 60 kg
  • Draft: 7.5 cm
  • Positioning: Full GNSS + IMU
• Echosounder
  • Type: Single beam, 200 kHz
  • Range: 0.1 to 200 m
  • Accuracy: ±0.01 m + 0.1% x D
• Sensors
  • Camera: 360° video

Click Here for Data Sheet

FAQs:

• What are the benefits of using multi-beam echosounders in hydrographic surveys?
  • Multibeam echosounders such as the Norbit iWBMS provide detailed bathymetric data across broad areas, enabling precise mapping of underwater features to support marine navigation and construction.
• What types of surveys is the APACHE 6 designed for?
  • The APACHE 6 is designed for high-resolution 3D bathymetric surveys, underwater object localization, and offshore construction. The APACHE 6 is constructed with high strength and high modulus carbon fiber for durability and resistance to harsh marine environments.
• How many operators are required to deploy the APACHE 6?
  • The lightweight design allows for easy deployment by two operators, making it versatile and efficient in various survey conditions.
• How does the APACHE 6 handle stability in rapid currents?
  • The triple-hulled vessel design with detachable floating bodies maintains stability even in rapid currents, ensuring consistent data quality.
• What is the price of the CHCNAV APACHE6 USV?
  • The price of the CHCNAV APACHE 6 USV depends on your selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
