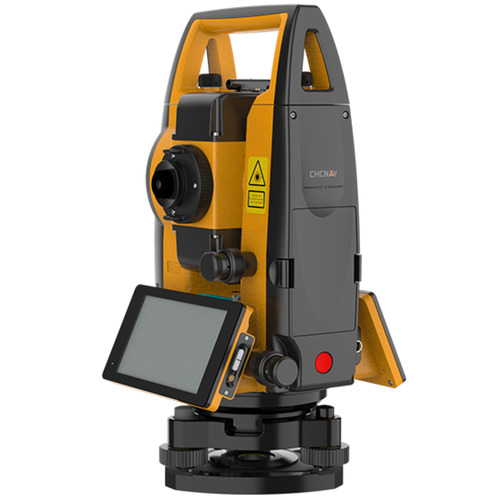

CHCNAV CTS-A100 Reflectorless Total Station Kit, 2" Accuracy - 4001 030 004

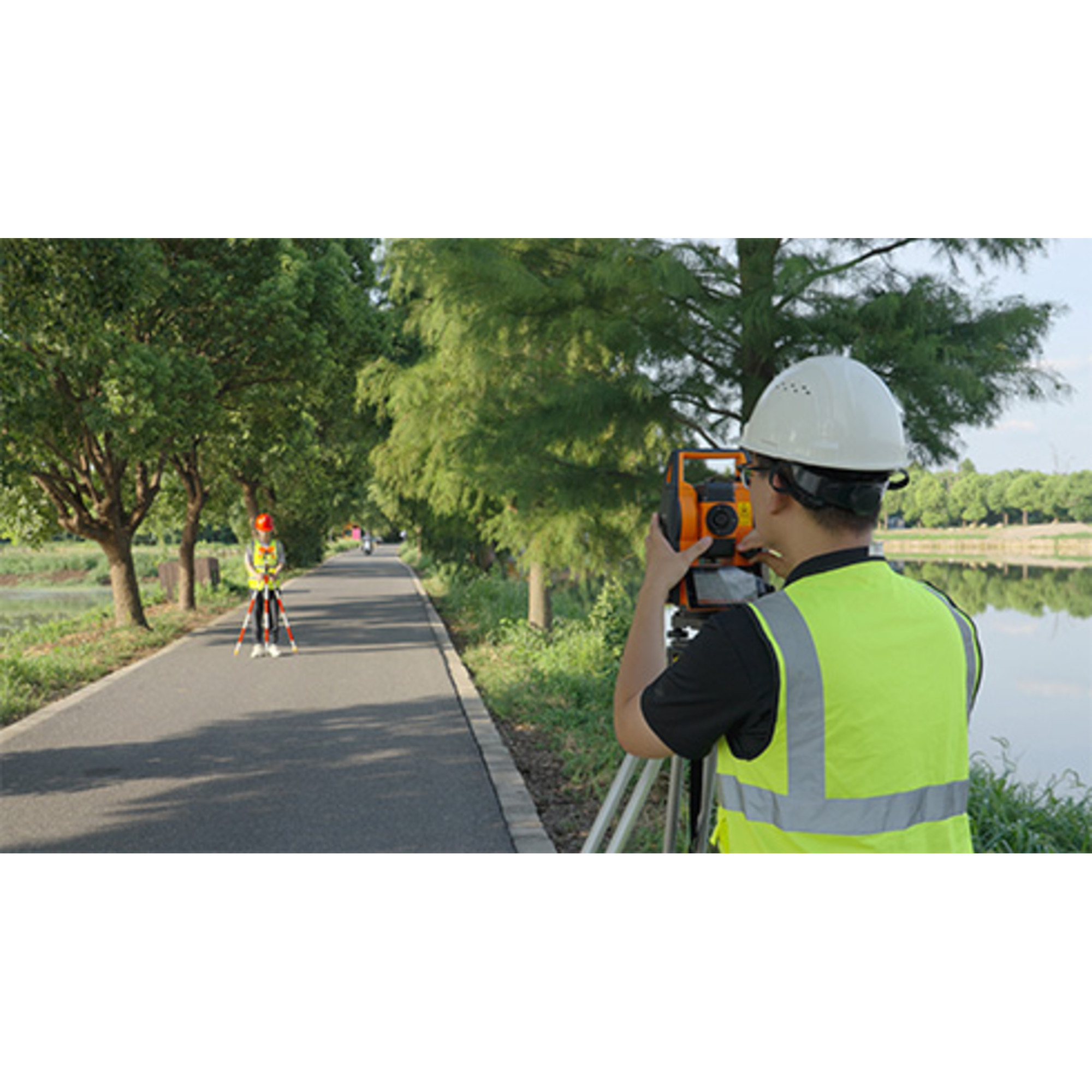

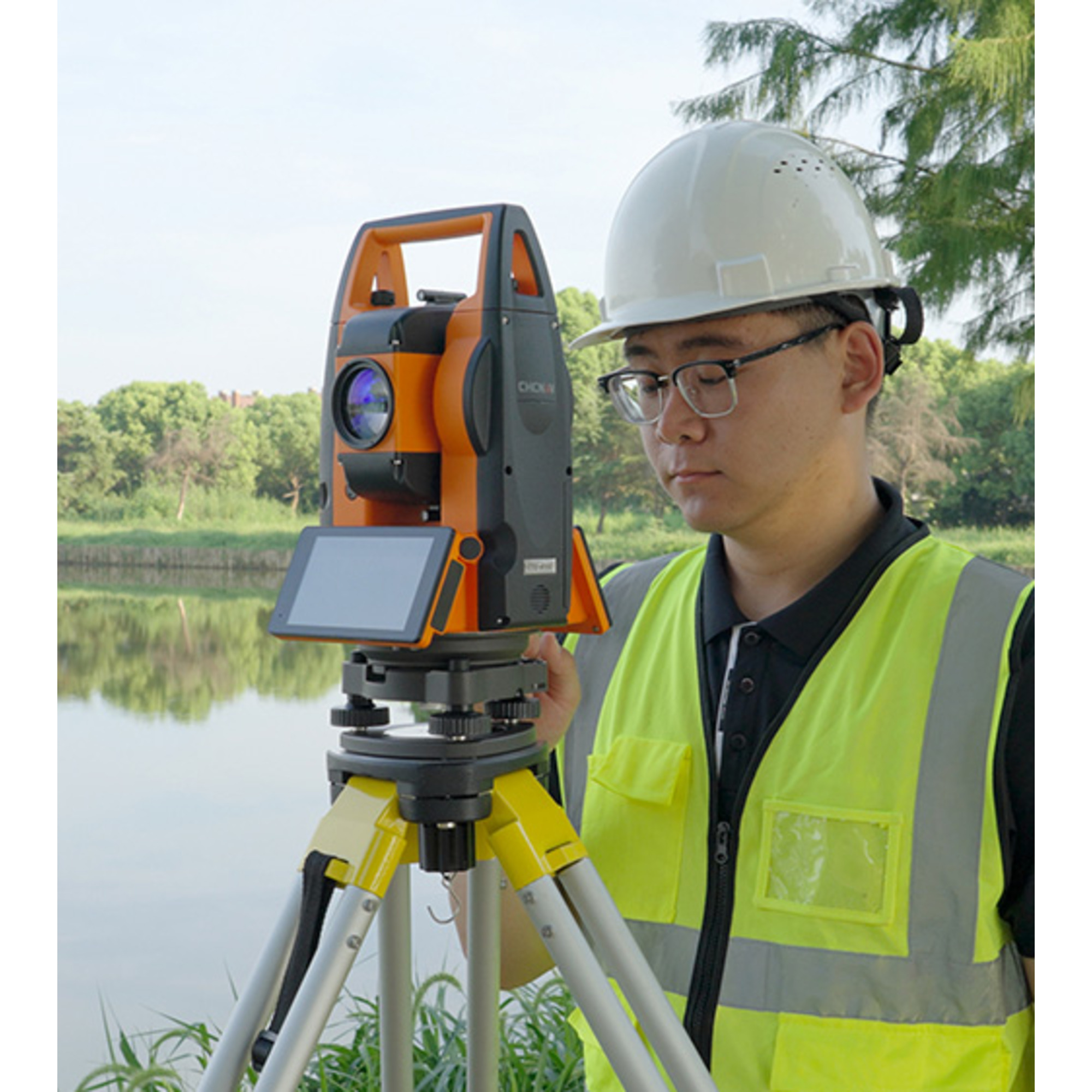

The CTS-A100 is a reflectorless total station optimized for efficient fieldwork, featuring the Android OS and CHCNAV's LandStar software for intuitive, high-performance surveying. Its powerful EDM system offers a range of 5000 m with a prism and 1500 m without a reflector. Its built-in Qualcomm octa-core processor ensures smooth operation. The CTS-A100 is perfect for everyday surveying tasks such as construction layout and topographic mapping, providing accurate and reliable data collection.

• High-Performance EDM: Achieve precise measurements with the CTS-A100’s EDM system, capable of measuring up to 5000 meters with a prism and 1500 meters in reflectorless mode. This range reduces the need for multiple setups, saving valuable time in the field.

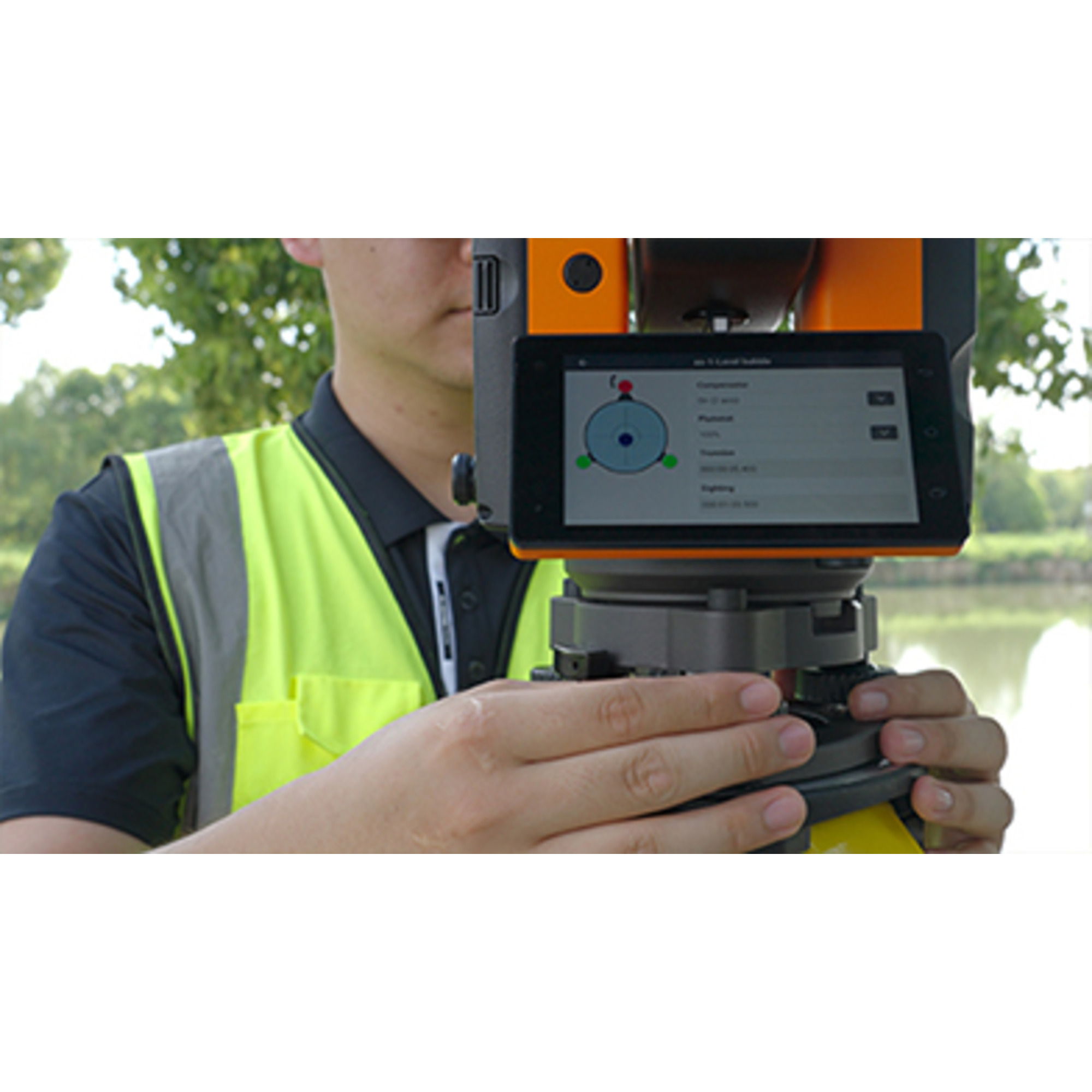

• Advanced Dual-Axis Compensation: The CTS-A100 includes a dual-axis electronic compensator for improved measurement stability, ensuring accurate results in uneven terrains. The digital electronic bubble makes leveling quick and easy, further streamlining the setup process.
• Integrated LandStar Software: The CTS-A100 comes preloaded with LandStar software, enabling CAD-based stakeout and survey operations. The MetaCAD engine simplifies CAD tasks, allowing users to quickly access and modify base maps for faster, more accurate fieldwork.

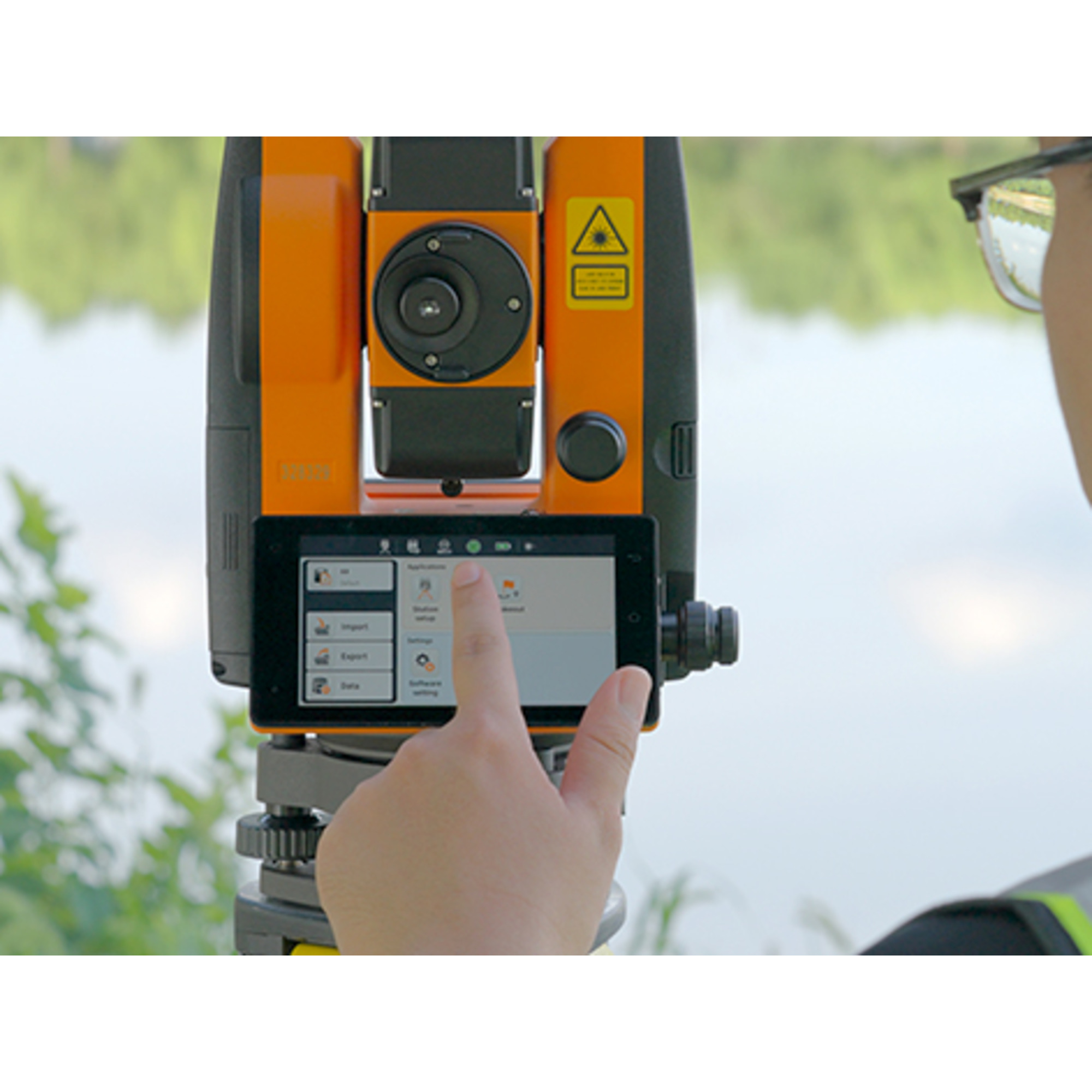

• Android-Based Operating System: The CTS-A100’s Android OS offers a user-friendly interface, allowing for easy customization and integration with third-party apps. It simplifies workflows with an intuitive design, enhancing the flexibility and efficiency of field operations.

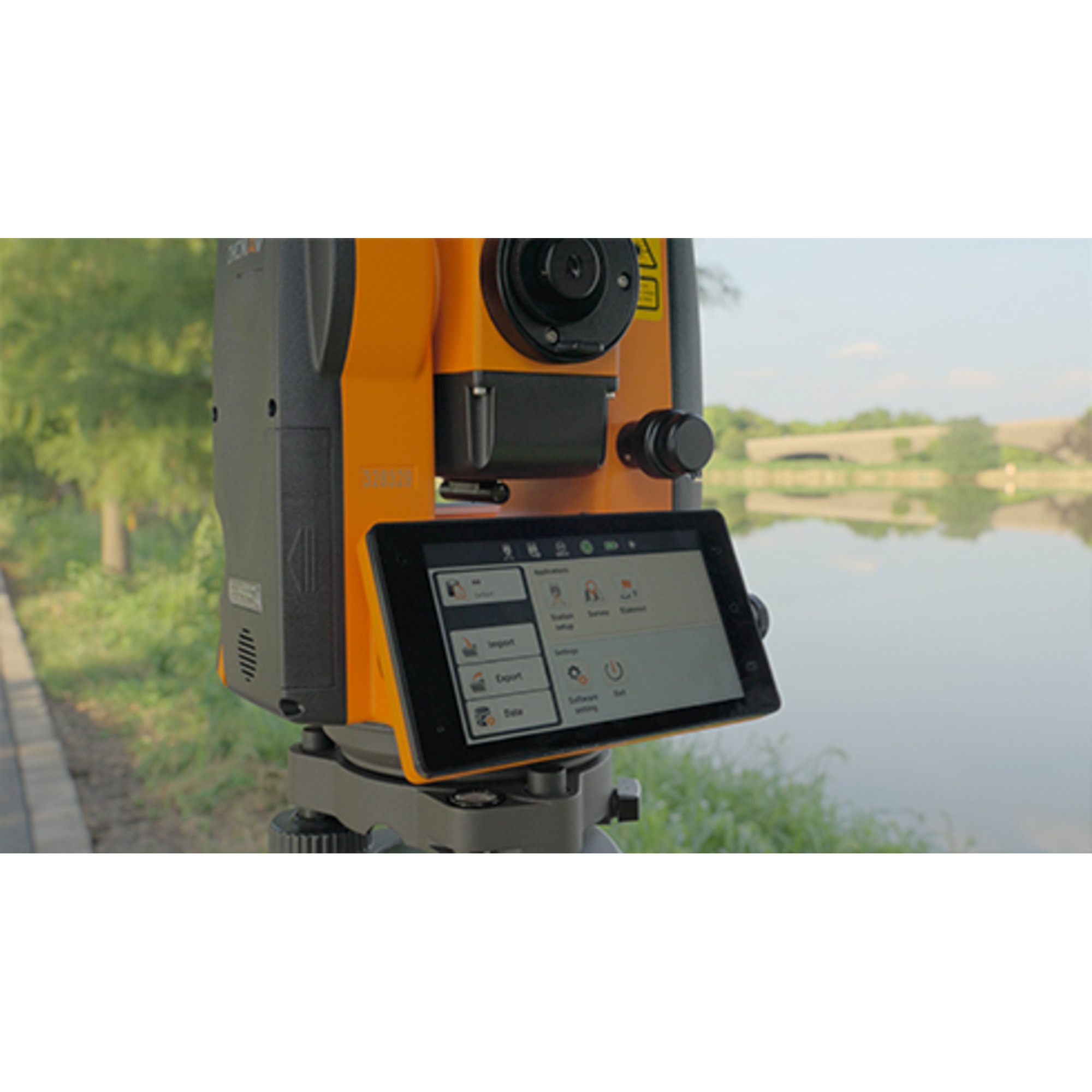

• Optimal User Experience: Powered by a Qualcomm octa-core processor, the CTS-A100 efficiently processes large datasets, ensuring quick and accurate measurements. The 5.0" HD display remains clear even under bright sunlight, improving readability and user experience.
• Durable Design: Built for harsh field environments, the CTS-A100 is IP55-rated for dust and water resistance, ensuring reliability in tough conditions. Its rugged construction extends the instrument’s lifespan and reduces downtime due to weather-related issues.

• Angular accuracy : 2"
• Range with prism : 5000 m max.
• Reflectorless range : 1500 max.

• Operating System : Android

• Weight : 5.5 kg
• Dimensions : 195 x 185 x 365 mm
• Battery life : Up to 8 hours

• Screen size : 5"
• Screen resolution : 1280 x 720

• (1) Total Station CTS-A100
• (1) Micro USB Cable
• (2) Li-ion battery (Li-50) 801
• (2) Li-ion battery Box (Li-30) C803
• (1) Li-ion battery Charger
• (1) Power Cable (US Standard)
• (1) User Guide
• (1) Transport Case
• (2) Strap for Carrying Case

Click Here for Data Sheet

Disclaimer:

• Some products featured on this page may require additional software to function properly. Such software may be sold separately and is not included in the listed product price. Please review individual product specifications for complete system requirements and compatibility details. For further information, please contact our sales team at sales@engineersupply.com, who will be happy to assist you.

• What is the maximum measurement range of the CTS-A100?
  • The CTS-A100 offers a 5000 m range with a prism and a 1500 m range in reflectorless mode, providing excellent versatility for various surveying tasks.
• How accurate is the CTS-A100’s angular measurement?
  • The CTS-A100 delivers 2" angular accuracy, ensuring precise measurements for construction layout, topographic mapping, and other surveying applications.
• What software is included with the CTS-A100?
  • The CTS-A100 comes preloaded with CHCNAV’s LandStar software, which simplifies CAD-based tasks and provides an efficient, intuitive survey and stakeout experience.
• How does the CTS-A100 ensure measurement accuracy on uneven terrain?
  • The CTS-A100 features a dual-axis electronic compensator, improving measurement stability on uneven ground and ensuring accurate results.
• What operating system does the CTS-A100 run on?
  • The CTS-A100 operates on Android 9.0, providing a customizable, user-friendly interface with support for third-party applications.
